Electro-Voice EVOLVE50M-SW | Evolve 50M White, Sub...
$1,199.00
The Electro-Voice EVOLVE50M-SW is a white 12-inch powered subwoofer and integrated 8-channel digital mixer designed for the EVOLVE 50M portable column PA system. Featuring a 1000W Class-D system amplifier with 500W dedicated to low-frequency reproduction, it delivers powerful bass performance while providing amplification for a compatible column speaker array. Built-in Bluetooth audio streaming, professional digital effects, QuickSmart DSP processing, and wireless app control make it a versatile solution for DJs, musicians, and live sound applications. The compatible EVOLVE50-TW column array and mounting pole are sold separately.
The Electro-Voice EVOLVE50M-SW combines powerful low-frequency performance with integrated mixing and digital signal processing in a portable white subwoofer enclosure. Designed as the powered foundation of an EVOLVE 50M column loudspeaker system, it features a 12-inch woofer housed in a durable 15mm plywood bass-reflex cabinet with a high-efficiency laminar-flow vent design. Its integrated Class-D amplifier supplies 1000W of total system power, divided between the subwoofer and a compatible column speaker array. When paired with the appropriate EVOLVE 50 column, the complete system delivers up to 127 dB maximum SPL and a frequency response of 43 Hz to 20 kHz (-3 dB).

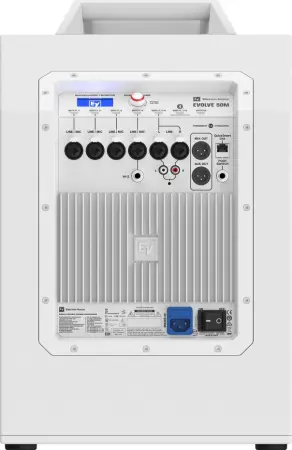

The integrated 8-channel digital mixer provides flexible audio control without requiring a separate mixing console for many applications. Four combination XLR/TRS microphone and line inputs, stereo line inputs, a Hi-Z instrument input, RCA connections, and a 3.5mm auxiliary input accommodate microphones, instruments, playback devices, and additional audio equipment. Professional-grade microphone preamps, phantom power, independent auxiliary sends, and two digital effects channels allow musicians and performers to create detailed mixes. Thirty effects presets include reverb, chorus, delay, and flanger options for additional creative control.
QuickSmart DSP provides comprehensive sound adjustment through four application presets: Music, Live, Speech, and Club. A three-band system equalizer, seven-band graphic equalizer in Mixer mode, adjustable input levels, limiter monitoring, and five user-programmable presets help optimize performance for different venues and applications. High-resolution Bluetooth audio streaming enables wireless music playback, while the QuickSmart Mobile app allows compatible smartphones and tablets to remotely control mixer settings, effects, and system functions.
For larger performances, QuickSmart Link allows two EVOLVE 50M systems to connect through an Ethernet cable, creating a digital audio and control connection with expanded mixing capabilities. Both connected systems can be managed through the QuickSmart Mobile app, providing additional flexibility for bands and events requiring more inputs. The subwoofer also features XLR mix and auxiliary outputs for connecting compatible audio equipment and expanding sound reinforcement setups.
Designed for convenient transportation and assembly, the EVOLVE50M-SW features integrated carrying handles, a reinforced steel grille, and a mounting connection for the compatible EVOLVE 50 column speaker pole. Its white finish makes it suitable for weddings, corporate events, houses of worship, and other applications where equipment appearance matters. When combined with the separately available EVOLVE50-TW column array and pole, it forms a complete portable column PA system with integrated mixing, wireless connectivity, and professional sound performance.
Important: This product includes the EVOLVE 50M powered subwoofer and mixer module only. The EVOLVE50-TW column speaker array, connecting pole, and column carrying bag are sold separately and are required to complete the EVOLVE 50M column PA system. The 127 dB maximum SPL and full-range frequency specifications apply to the complete system with the compatible column array connected.
| App Control | QuickSmart Mobile App |
| Onboard DSP | Music, Live, Speech, Club |
| Physical Controls | Integrated 8-channel digital mixer with professional-grade microphone preamps, input level metering, limiter monitoring |
| Preset Storage | 5 |
| Brand | Electro-Voice |
| Name | Electro-Voice EVOLVE50M-SW | Evolve 50M White, Sub Only |
| Primary Category | Powered PA Subwoofer |
| Build Material | 15mm Plywood |
| Dimensions | 20.9 x 13.6 x 18.5 in in |
| Included Accessories | Two power cords, user manual, safety manual |
| Mounting Options | Magnetically assisted pole connection for compatible EVOLVE 50 column speaker pole |
| Transportability | Integrated side handles for convenient transportation |
| Weight | 44.7 lb lb |
| Channels | 8 |
| Color Mixing | Reverb, Chorus, Delay, Flanger |
| Woofer Size | 12 in in |
| Connectivity Protocols | Bluetooth, QuickSmart Link (Ethernet) |
| Frequency Response | 43 Hz – 20 kHz Hz |
| Max SPL | 127 dB dB |
| Power Rating | 1000W W |
| Wattage | 500W W |
