Yamaha DXS12 MK3 | 12in Powered Subwoofer - 132dB ...
$1,199.99
Yamaha DXS12 MK3 is a band-pass powered subwoofer built to deliver deep, controlled low-frequency reinforcement for live sound, DJ systems, and installed audio setups. Designed as the most portable model in the DXS mk3 series, it combines high-output performance, advanced DSP processing, and a durable plywood enclosure to provide impactful bass in a compact footprint.
The Yamaha DXS12 MK3 is engineered for users who need powerful low-end performance without sacrificing portability. Its 12-inch long-excursion woofer with a 3-inch voice coil is housed in an optimized band-pass enclosure that reduces unwanted noise while maximizing bass output. This design enables the subwoofer to produce deep, clear, and impactful low frequencies that perform well in mobile DJ setups, live bands, event production, and venue installations.
Driven by a high-efficiency 2500W Class-D amplifier, the DXS12 MK3 delivers up to 132 dB SPL with impressive clarity and control. The built-in D-XSUB processing allows users to tailor the bass response, with NORMAL mode providing balanced output and XTENDED LF mode extending the low-frequency range down to 38 Hz for applications that demand deeper bass presence.
The cabinet is constructed from durable plywood with a rugged polyurea coating that protects against wear during transport and use. The enclosure is acoustically optimized for consistent performance, while large ports and an advanced grille design help minimize airflow noise even at high output levels. Optional accessories such as the SPW-1 wheel kit and SPCVR-DXS123 cover further enhance portability and protection.
For system flexibility, the subwoofer includes adjustable crossover settings, cardioid mode for directional bass control, and Bluetooth connectivity for integration with Yamaha’s D-Remote app. When paired with DXR mk3 series speakers, the Yamaha DXS12 MK3 creates a cohesive and powerful full-range system suitable for a wide range of professional audio environments.
| App Control | D-Remote app support for iOS and Android |

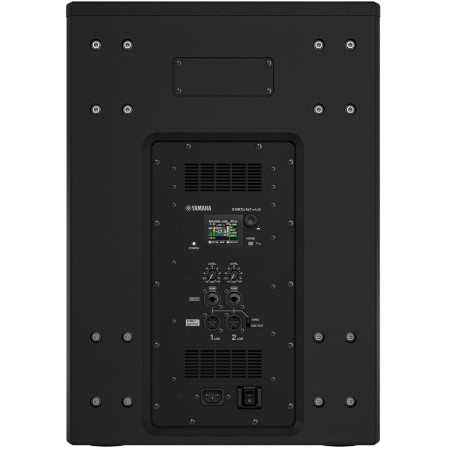

| Physical Controls | Rear LCD panel with encoder for setup and control |
| Preset Storage | D-XSUB processing with NORMAL and XTENDED LF modes |
| Brand | Yamaha |
| Name | Yamaha DXS12 MK3 |
| Primary Category | Powered Subwoofer |
| Build Material | Plywood with durable polyurea coating |
| Dimensions | 15.7 x 22.3 x 22.4 in (400 x 567 x 570 mm) inches |
| Weight | 72.8 lb (33.0 kg) kg |
| Connectivity Protocols | Bluetooth 5.0 (SBC, AAC), Analog Inputs and Outputs |
| Frequency Response | 38 Hz - 140 Hz Hz |
| Max SPL | 132 dB SPL dB SPL |
| Power Consumption | 130W (1/8 power), 40W (idle) W |
| Power Rating | 2500W W |
| Wattage | 1250W W |
| Driver Configuration | 12-inch long-excursion woofer with 3-inch voice coil |
| Woofer Size | 12 in in |
| Warranty Length | Not specified years |
