Electro-Voice RE2-N7 (Band A)

Electro-Voice RE-2 N7 (EV RE2N7)

Q. What makes the EV RE-2-N7 better than ANY other wireless microphone in its price range?

A. The RE2-N7 system scans all UHF channels, then picks the BEST one. It doesn't stop at the first sufficient UHF channel, it finds the absolute best one available.
If you don't think this is important, think again!

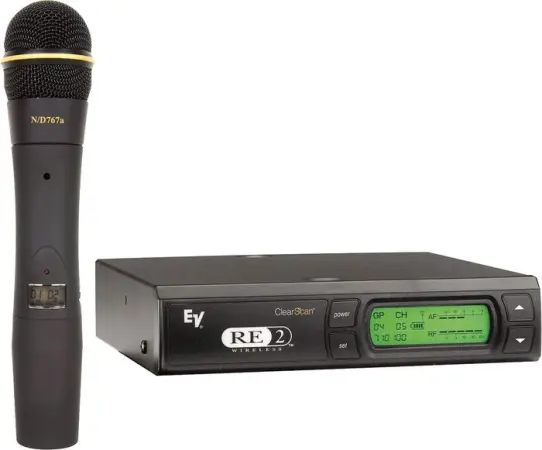

The RE-2 Wireless Microphone system combines frequency agility and ease of use like no other. The RE-2 transmitters and receivers operate over a 24 MHz band width in the UHF portion of the Radio Frequency spectrum. The high quality audio circuitry and advanced Radio Frequency (RF) signal processing offer broadcast quality signal-to-noise and audio clarity. The RE2-N7 System includes the RE-2 Diversity Receiver and the HTU2PRO Transmitter with N/D 767a Cardiod Dynamic Microphone Element.

Electro-Voice RE2-N7 Wireless System with EV 767a Dynamic Element Features:
RE-2 Receiver
One-touch Auto-ClearScan
Programmable in 25kHz steps across 28 MHz
operating bandwidth
Backlit LCD displays the Group, Channel, Frequency, transmitter battery level, diversity operation, RF, and Audio signal level meters
Balanced XLR audio output for Microphone or Line level signals and a
1/4-inch line level jack
Fourth-generation Posi-phase diversity and advanced audio circuits
Unique "Guitar" setting
Detachable 1/4 wave antennas

RE-2 UHF Transmitter
Unique "smart" battery
LCD Displays Group and Channel, Frequency, or Battery Level
Low battery LED
One On/Off button that also acts as a mute
On/Off button can be disabled

RE-2 UHF Handheld
NDYM 767a Dynamic premium vocal microphone
with VOBTM(Vocal-Optimized-Bass)
Internal 1/2-wave antenna

Electro-Voice RE2-N7 Wireless System with EV 767a Dynamic Element Specifications:

RE-2 Receiver
Receiver Type: Synthesized PLL
Frequency Range (RF): A Band 648 - 676 MHz (TV Channels 43 - 48),
B Band 696 - 724 MHz (TV Channels 54 - 56), D Band 798 — 822 Mhz, E Band 841 — 865 MHz
Number of Channels: >1122 possible frequencies, programmable in 25 kHz steps
Modulation: +/- 40 kHz
Diversity: Digital Posi-Phase True Diversity
RF Sensitivity: <1.0 _V for 12 dB SINAD
Image Rejection: >60 dB
Squelch:Tone Code plus Amplitude
Ultimate Quieting: >100 dB
FCC Certification: Approved under Part 15
Power Requirements: 12-15V AC/DC, 300mA
Antennas Detachable: 1/4 wave
Receiver Dimensions: 1.72 in. H x 7.50 in. W x 5.9 in., D 43.69 mm H x 190.50 mm W x 150 mm D

Audio Parameters
Frequency Response: 50-15 kHz +/- 2dB
Balanced Output (typical): (max @ 40 kHz deviation) 330mV RMS 100K OHM Load, Mic Position, 10mV to 2V RMS 100K OHM Load, Line Position
Unbalanced Output: adjustable 10 mV to 1V RMS, 100K OHM Load
Distortion: <1.0%, 0.5% typical (ref 1kHz, 40kHz deviation)
Signal-to-Noise Ratio: >100 dB A Weighted
Dynamic Range: >100 dB
Transmitter: HTU-2
Radiated Output: 30 mW Typical
Microphone Head: N/D 767a supercardioid N/DYM dynamic
TA4F Connector Wiring: Pin 1: Ground; Pin 2 Mic Input;
Pin 3: +5V bias; Pin 4: +5V bias through a 3k
Audio Gain Adjustment Range: 40 dB BPU-2
26 dB HTU-2
Power Requirements: 9 Volt Alkaline Battery
Battery Life (Typical): >8 hours with 9-Volt Alkaline Typical
Handheld Antenna: Internal 1/2 wave
Dimensions (Handheld): 24.0 cm (9.4 in.) Long

Transmitter
Radiated Output Normal 5 mW typical, High 50 mW typical
Microphone Head: 767a Supercardioid N/DYM Dynamic
Handheld Antenna: Internal 1/2 wave
Dimensions (Handheld): 26.8 cm (10.5 in.) Long

Choose the correct frequency band for your area by going here: https://www.electrovoice.com/fbs.php#
