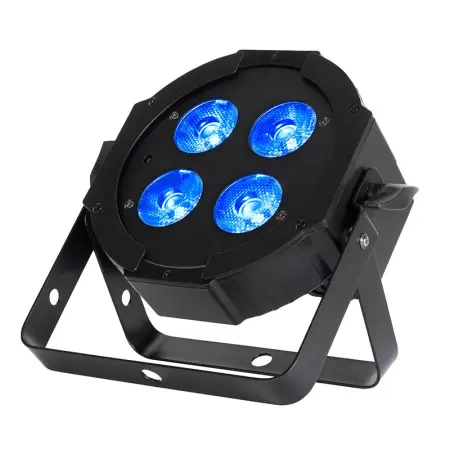

The Eliminator Mega Hex L Par is a compact and lightweight LED Par with 4 x 20-Watt, 6-IN-1 (RGBLA + UV) LEDs and Eliminator's patented “sit-flat” design so that it may sit directly on the ground or inside truss. It includes the UC IR24 wireless IR remote control. The addition of the Lime LED chip creates a high CRI output and allows users to control the white color temperature of this fixture. It's a HEX LED par with a twist of lime!
SPECIFICATIONS:
Source:
4 x 20-Watt, 6-IN-1 Hex (RGBLA+UV) LEDs (50,000 hrs.)
CRI: >90
Lumens: 1100
Beam Angle: 17-degrees (native); 20-degree (with frost filter)
Effects:
White Color Temperature Control (2300K – 9900K)
15 White Color Temperature Presets
63 built-in Color Macros
13 built-in programs
Flicker Free
Electronic Dimming: 0-100%
6 Dimmer Curve Modes
Color strobe effect
Control:
7 DMX Channel modes: 6, 8, 9, 12, 14, 15 and 17 channel modes
5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGBLA + UV Dimmer Mode, Static Color Mode (63 Colors), and DMX Controlled
4-button with OLED display menu for easy navigation
Stand Alone or Primary/Secondary Configuration
DMX-512 protocol
Connections:
3-pin DMX Inputs/Outputs
IEC AC input and output on the side of the fixture to daisy chain the power (link up to 20 fixtures @120V, up to 40 fixtures @230V)
With Wired Digital Communication Network
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz
Power Draw: 24W Max
Dimensions / Weight:
Dimensions (LxWxH): 10.25”x 10.25”x 4.25”/ 261x260x110mm
Weight: 4 lbs./ 1.87 kg.
Included Items:

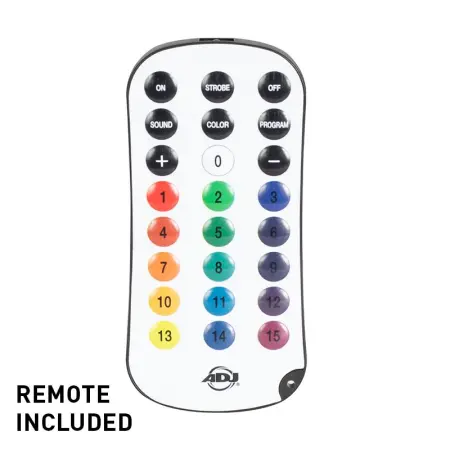

Includes the ADJ UC IR24 wireless IR remote
IEC Power Cord

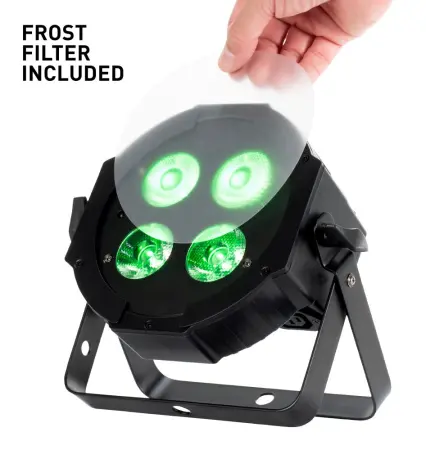

20-degree Frost Filter
Safety cable
Scissor yoke
Rating / Approvals:
IP20
ETL Approved (Control # 4002034)
FCC Approved
CE Compliant
American DJ Mega Hex L Par
(Eliminator Mega Hex l Par)
