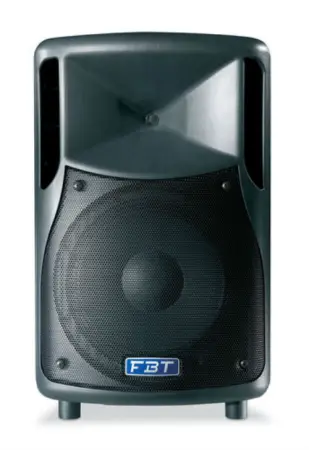

FBT HiMaxx 40a

The FBT HI Maxx 40a speaker features lightweight, yet rugged gas injected molded polypropylene cabinet construction. The asymmetrical shape of the HI Maxx 40a cabinet also allows use as a powered floor stage monitor. The FBT HI Maxx 40a is a two-way design incorporating a custom FBT designed, B&C manufacturered 12 low frequency woofer with neodymium magnet and a B&C 1.7 High frequency driver coupled to a 90H x 60V horn. The active internal crossover is at a fixed frequency of 1.6k. With a frequency range of 45Hz 20kHz, the HI Maxx 40a provides hi fidelity sound for both speech and music applications with a maximum SPL of 127 dB. A front face steel grille protects the woofer from external damage. FBTs ADAP Advanced Dynamic Active Protection circuitry protects speaker/driver components against failure. The Bi amplified HI Maxx 40a active speaker features a 500w RMS Pulse Width Modulation (PWM) low frequency amp, and a 150w RMS Class G high frequency amp. The control panel features a master volume control, 3 band EQ with +- 15dB of cut/boost @ 80Hz LF, 12 dB of cut/boost @2.5k Midrange and +- 15 db cut/ boost @ 10kHz, a balanced Neutrik input combo jack (female XLR, TRS, ), balanced XLR link output jack, microphone / line input switch, and ground lift switch, stereo RCA input with a separate volume control, LED power on and separate HF and LF overload LED indicators.

The four M -10 fly points built into the cabinets, along with the optional Box 100 or Box 101 mounting brackets allow the Maxx 4a speakers to be surface mounted on walls or ceilings. A standard 1? speaker stand socket allows the HI Maxx 40a to be mounted on speaker stands.

Applications

Live Sound P.A. System or Live Sound Monitor, D.J. System
School & Corporate Audio Visual Sound Reinforcement
Background Music/Announcement: Restaurants, Pubs,
Transportation Terminals, Clubs, Auditoriums, Theatres, Gyms,
Houses of Worship

Features:

Lightweight Polypropylene Cabinet, 39.5 lbs.
Bi amplified: 500w RMS LF & 150w RMS
Control Panel with Volume Control, 3 band EQ, mic/line switch, ground lift switch, Neutrik balanced ins/outs, Stereo RCA inputs with separate volume control, Protection & Limiter LED indicators.
Multiple mounting options: *Wall, *Ceiling, *Cluster, Speaker Stands (*Optional accessories required)
Four M - 10 fly points
Carrying Bags for protection for portable use
High SPL capability: 127 dB
Asymmetrical profile allows use as a floor stage monitor
Two ergonomic handles built in for easy carrying

Specifications:

System Type: 2 way
Dispersion: 90 H x 60 V
Components: B&C 12" LF woofer, 1.7" HF driver
Protection: FBT ADAP Protection circuitry
Frequency Response: 45Hz-20kHz
Inputs: Mic: Balanced Neutrick Combo Jack, XLR, 1/4" TRS; 2nd Input: Stereo RCA Jack (L&R)
Suspension Points: 4 x M-10
Output: Balanced Neutrik XLR link out
Total Power Output: 650W RMS, 2600W Peak Power
Enclosure Material: Polypropylene
Sensitivity: 99dB @ 1 watt, 1 meter
Dimensions (W x H x D): 19.48" x 25" x 14.56"
Maximum SPL: 127dB
Net Weight: 39.5 lbs
Active Crossover Frequency: 1.6kHz
Shipping Weight: 45.20 lbs

FBT HiMAXX 40a (FBT Hi Maxx 40A)
