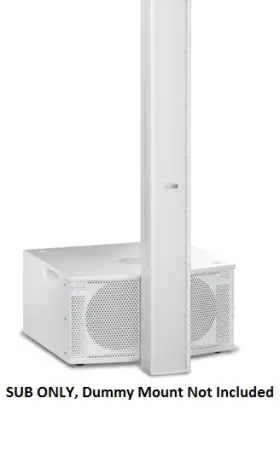

FBT Vertus CLA 208SAW only. Optional Accessories Not Included.
The white FBT Vertus CLA 208SAW is a 600W RMS active subwoofer with two 8" custom neodymium woofers in a bass-reflex design. It can be used to extend the low frequency response to a wide range of FBT speaker systems for applications such as live stage, theater, houses of worship, DJ setups, and more.
The Vertus CLA 208SAW has several other features such as a frequency response of 50 to 180 Hz and a 600W class D power amplifier that uses a switch mode power supply. It's built-in digital signal processor has 4 available frequency presets allowing the sub to be configured to any speaker.
The Vertus CLA 208SAW 15 mm birch-plywood enclosure, which has an anti-scratch paint finish, features a control-panel that has stereo combo XLR/jack inputs, a link jack, an XLR Hi-pass stereo out jack, along with volume, preset settings, 0 to 180° phase switch, and status LED indicators on the rear panel. Also built into the enclosure are 2 integrated carry handles and a M20 stand adapter. Power is supplied using a Neutrik Powerconn input and link jack or the included AC power cable.
Features:
Active subwoofer in bass-reflex design
15mm birch plywood enclosure
2 x 8" custom high excursion woofer with 2" voice coil
Class D 600W RMS amplifier with switch mode power
supply
DSP processor with 4 presets
Neutrik Powercon in & link
M20 stand adapter
2 integrated handles
Completely Manufactured in Italy
Applications:
School and corporate audio visual sound reiforcement
Background music/announcement: Restaurants, Pubs
Transportation terminals, Clubs,Auditorium, Theatres,
Gyms, Houses of worship
Suitable for low frequency extension and reinforcement of the CLA 604A array, especially for live performance
Specifications:
Configuration
1
Amplifier Continuous
RMS 400
Max. Continuous Power
RMS 600
Amplifier Max Peak
1200
Frequency Response
50 Hz to 180 Hz
Low Frequency Driver
2x 8" (203 mm) - 2" (51 mm) coil
High Frequency Driver
None
Maximum Sound Pressure Level (SPL)
Continuous 125, peak 129 half-space
Dispersion
Omnidirectional
Input Impedance
22 kOhms
Crossover Frequency
0.15 kHz
AC Power Requirements
450 VA
Input Connectors
Stereo XLR with loop, HP out
Power Cord
16.4 " (5.0 m)
Dimensions
(W x H x D) 21.7 x 10.6 x 19.7" (550 x 270 x 500 mm)
Weight 44.09 lb (20 kg)
FBT CLA 208 SAW
(FBT CLA 208SAW)
