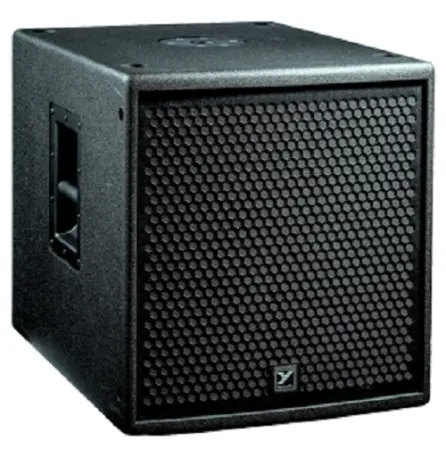

Yorkville PS15S | 15in - 132dB
$1,579.00
Features
Compact High Performance Active Subwoofer
Single 15-inch Long Throw Woofer w/ 3-inch VoiceCoil
Max SPL 132dB Peak (126dB Continuous)
Compact Bass Reflex Design
Handles Line or Speaker Level (Powered) Input Sources
XLR and ¼-inch Inputs and Link Outputs
Ideal Companion Subwoofer for Parasource PS12P
Solid 15mm Birch Cabinet Construction
Integrated Pole Mount Adaptor and All Metal Handles
Made in Canada
Overview
The 1000-watt compact single 15-inch active PS15S bass reflex subwoofer is one of the most versatile compact active subwoofers Yorkville Sound offers. Designed to be the ideal companion to the Parasource PS12P full range loudspeaker, the PS15S actually can be easily integrated in to virtually any small or medium format PA application. Cable of direct connection to any audio source (including speaker level input) the PS15S can easily be added to virtually any mobile live sound or installation PA system quickly for added low end support.
Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.
Specifications
Active or Passive Active
Program Power (Watts) 1000 Watts Program (2000 Watts Peak)
Max SPL (dB) 132dB Peak (126dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz-100Hz
Crossover Frequency (Hz) fixed @ 100Hz
Driver Configuration 1x15-inch (Bass Reflex Cabinet)
LF Driver(s) 1x15-inch Long Throw Ceramic w/ 3-inch VoiceCoil
Inputs XLR Balanced Line Level Input
¼-inch Line or Speaker Level Input
Outputs XLR Balanced Link Output
¼-inch Link Output
Controls Output Level, Line/Speaker Level Switch
Power/Limit/Clip LED's
Enclosure Materials 15mm Birch
Baffle Material 15mm Birch
Covering / Finish Paint
Dimensions (DWH xbackW, inches) 19.75 x 17.25 x 23.75
Dimensions (DWH xbackW, cm) 50.2 x 43.8 x 60.3
Weight (lbs/kg) 82 / 37.3
Specifications subject to change without notice
| Brand | Yorkville |
| Name | Yorkville PS15S | 15in - 132dB |
| Primary Category | Active Subwoofer |
| Build Material | 15mm Birch Plywood |
| Dimensions | 19.75 x 17.25 x 23.75 inches inches |
| Included Accessories | Integrated Pole Mount Adaptor and All Metal Handles |
| Weight | 82 lbs / 37.3 kg kg |
| Connectivity Protocols | XLR Balanced Line Level Input, 1/4-inch Line or Speaker Level Input, XLR Balanced Link Output, 1/4-inch Link Output |
| Frequency Response | 45Hz-100Hz Hz |
| Max SPL | 132dB Peak (126dB Continuous) dB |
| Power Rating | 1000 Watts Program (2000 Watts Peak) Watts |
| Driver Configuration | 1x15-inch (Bass Reflex Cabinet) inch |
| Woofer Size | 15-inch Long Throw Ceramic w/ 3-inch VoiceCoil inch |
