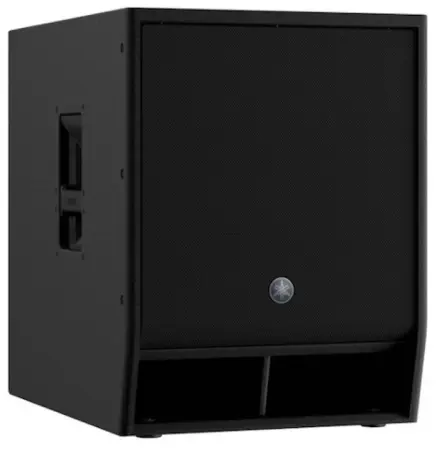

Yamaha DXS15XLF | 15in, 1600W, 136 dB | Extended L...
$1,639.99
The Yamaha DXS15XLF is a high-output 15-inch powered bass-reflex subwoofer designed to deliver deep, controlled bass for professional live sound reinforcement. Featuring a 1600W dynamic Class-D amplifier, 136dB maximum SPL, and an extended 33Hz to 150Hz frequency range, this subwoofer provides powerful low-frequency performance for mobile DJs, bands, concerts, and installed PA systems. Advanced 96kHz DSP processing, D-XSUB bass enhancement, cardioid mode capability, and an intuitive LCD control interface allow precise sound adjustments, while its rugged polyurea-coated plywood cabinet provides durability for demanding applications.
The Yamaha DXS15XLF is designed for audio professionals who need deep, powerful bass reproduction in a manageable powered subwoofer configuration. Its high-efficiency 1600W dynamic Class-D amplifier drives a 15-inch low-frequency transducer equipped with a large 4-inch voice coil and ferrite magnet. The optimized bass-reflex enclosure delivers a frequency response extending from 33Hz to 150Hz, while producing up to 136dB maximum SPL. This combination provides the low-frequency impact needed for DJ performances, live bands, concerts, and professional event productions. The DXS15XLF is especially well suited for pairing with Yamaha DZR Series powered loudspeakers to create a complete full-range PA system.
Advanced digital processing gives the DXS15XLF extensive control over its low-frequency performance. Its integrated 96kHz DSP engine and FIR filtering provide precise signal processing with low latency, helping maintain clarity and control at high output levels. Yamaha's D-XSUB processing offers selectable bass response settings, allowing operators to tailor low-frequency performance to different musical styles and venue requirements. The built-in LCD interface provides access to parametric EQ, delay, routing, and system presets, allowing detailed sound adjustments directly from the subwoofer without requiring a separate external processor.
For applications requiring more controlled bass coverage, the DXS15XLF supports cardioid mode when configured with multiple compatible subwoofers. This directional bass arrangement helps reduce unwanted low-frequency energy behind the system, making it useful for live stages and venues where excessive bass buildup can affect performers and sound clarity. Two combination XLR/1/4-inch line inputs accommodate professional audio signals, while two XLR outputs support THRU or DSP-processed output configurations. The integrated speaker management functions allow the subwoofer to work with a variety of compatible full-range loudspeakers and sound reinforcement configurations.
Built for frequent transportation and demanding live environments, the DXS15XLF features a durable plywood enclosure with premium polyurea coating to help protect against scratches and everyday handling. Two integrated aluminum die-cast side handles make lifting and positioning easier, while its 35mm pole socket and M20 threaded mount support compatible speaker poles for compact PA setups. Optional SPW-1 casters and the SPCVR-DXS15X protective cover, both sold separately, provide additional transportation and storage convenience. Measuring approximately 23.1 x 17.7 x 23.6 inches and weighing 88.2 pounds, the DXS15XLF combines high-output bass performance, flexible digital processing, and rugged construction for professional mobile and installed sound applications.
| Brand | Yamaha |
| Name | Yamaha DXS15XLF |
| Primary Category | Powered PA Subwoofer |
| Build Material | Plywood cabinet with durable polyurea coating |
| Dimensions | 23.1 x 17.7 x 23.6 inches inch |
| Included Accessories | None included; optional protective cover and caster kit sold separately |
| Mounting Options | 35mm speaker pole socket and M20 threaded pole mount |
| Weight | 88.2 lb lb |
| Connectivity Protocols | 2 x combination XLR/1/4-inch inputs, 2 x balanced XLR outputs with THRU or DSP OUT selection, USB 2.0 host |
| Frequency Response | 33Hz - 150Hz Hz |
| LED Type | 96kHz DSP processing with FIR filtering |
| Max SPL | 136 dB dB |
| Power Consumption | 40W idle, 180W at 1/8 output W |
| Power Rating | 1600W dynamic, 1200W continuous, 1300W burst W |
| Wattage | 1600 W |
| Control Interfaces | Integrated LCD display and physical controls |
| Driver Configuration | 1 x 15-inch cone woofer with 4-inch voice coil and ferrite magnet |
| Woofer Size | 15 inch inch |
