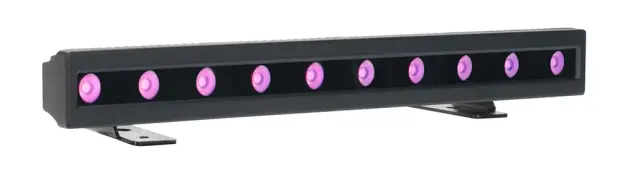

PRISMA MINI BAR 20â„¢ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.
Powered by the PRISMA DRIVER 8â„¢, features 2 adjustable mounting brackets, a durable aluminum housing, and a 6 ft (1.8m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.
Features:
IP65 Rated Exterior High-Power UV Wash Bar Luminaire
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
Zero Visible Light Output
IP Rated Power/Data Pigtail Cable Attached
Specifications:
SOURCE
(10) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Brackets (x2)
CONTROL
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support
CONNECTIONS
6 ft (1.8m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 23.42 in. (595mm)
Width: 3.93 in. (100mm)
Vertical Height: 4.13 in. (105mm)
Weight: 4.9 lbs. (2.2kg)
ELECTRICAL
AC100-240V 50-60Hz
25W Max Power Consumption
THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled
APPROVALS / RATINGS
CE | cETLus | IP65
