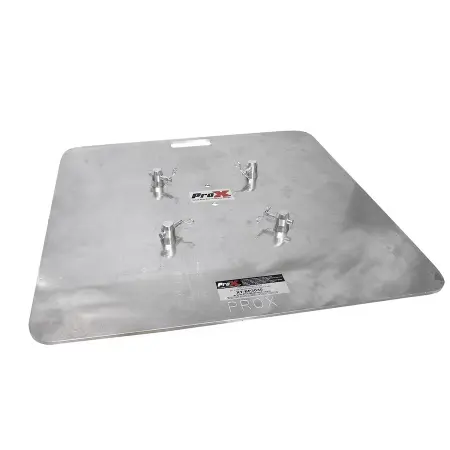

The ProX XT-BP3030A 30" X 30" Aluminum Base Plate is made with 10mm AWT6 6082 Aluminum Plate, and weighs 28lbs each.
Includes connecting hardware set.
ProX Truss products utilize industry standard dimensions to be compatible to connect with many other manufacturers' trussing.
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
Features:
Manufactured in ProX's own Factory.
Material: 10mm EN-AWT6 6082 Aluminum.
TUV Certified Manufacturing.
Fits most manufacturers with F34 Conical Couplers.
XT-SQ Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Specifications:
To Fit
ProX XT-BP3030A 30" X 30" Aluminum Base Plate w/ Connectors 10mm 28lbs the XT-BP3030A is great for mounting moving heads, lights, and extra ground support.
Dimensions
30.00" L x 30.00" W x 2.00" H
Weight: 28.00 lbs
Shipping Dimensions
30.50" L x 30.50" D x 2.50" H
Shipping Weight: 33.00 lbs
