JBL JRX215
$389.00

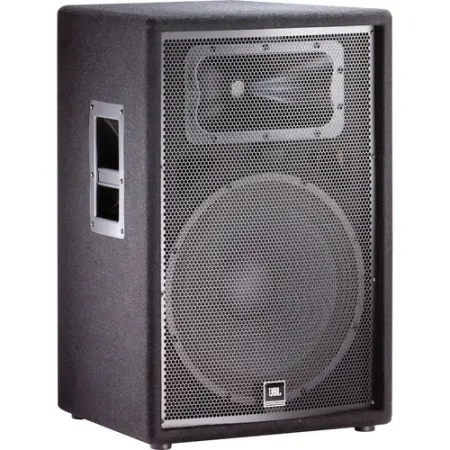

The JRX215 from JBL is a two-way 15" loudspeaker system. It is suitable for live sound and speech reinforcement applications. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency response of 59 Hz to 13 kHz.
Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the speaker is portable, even at a weight of 60.5 lb. For connections, this loudspeaker sports 1/4" TS and Neutrik SpeakON terminations.
Features:
Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance.
SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
Non-resonant, all-steel handles
18-gauge perforated, steel grille for protecting internal components from damage.
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage
JBL JRX215 Specs:
PA Speaker
Configuration 2-Way
Total Power Capacity 250 W
1000 W Peak
System Impedance 8 Ohms (Nominal)
Drivers
HF Driver 1 x 1" / 25 mm Compression Driver
LF Driver 2 x 15" / 38.1 cm Woofer
Performance
Frequency Range 59 Hz to 13 kHz
Maximum SPL 129 dB
Coverage Angle 90° H x 50° V
Connectivity
Audio I/O 1 x speakON NL4 Input
1 x 1/4" TS Input
Signal Processing
Crossover 2.2 kHz
Physical
Dimensions 27.5 x 18.1 x 17" / 699 x 460 x 432 mm
Weight 60.5 lb / 27.4 kg
Packaging Info
Package Weight 67.65 lb
Box Dimensions (LxWxH) 29 x 19 x 18"
