Powered PA Speaker and Stage Monitor

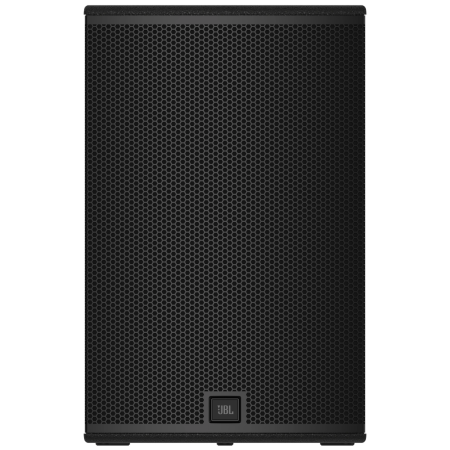

JBL SRX915M is a high-output 15-inch powered two-way point-source loudspeaker designed for main PA systems, stage monitoring, portable sound reinforcement, and installed audio applications. Delivering up to 134dB maximum SPL with 600W continuous Class-D amplification, it combines JBL Differential Drive woofer technology, a rotatable Progressive Transition waveguide, integrated DSP, and a versatile enclosure with a 45° stage monitor angle.
JBL SRX915M Competitive Differences
- 15-inch powered loudspeaker delivering up to 134dB maximum SPL with 50Hz low-frequency extension
- 600W continuous Class-D amplification with dedicated 400W LF and 200W HF power
- JBL Differential Drive woofer with dual 2-inch voice coils for output and thermal performance
- Rotatable 90° x 60° Progressive Transition waveguide for flexible coverage orientation
- Multi-purpose enclosure with a 45° stage monitor angle
- Integrated DSP with 24 user-adjustable filters and up to 2,000ms delay

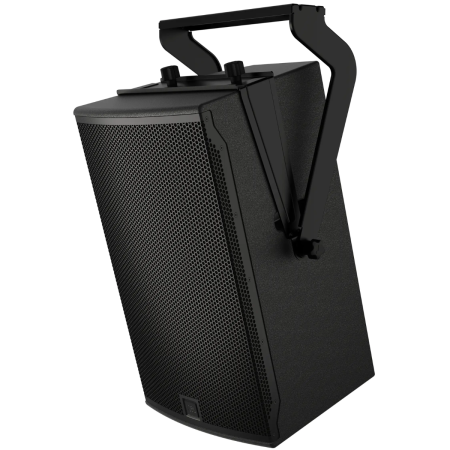

- Seven M10 QuickLink suspension points for portable and installed configurations
JBL SRX915M Description

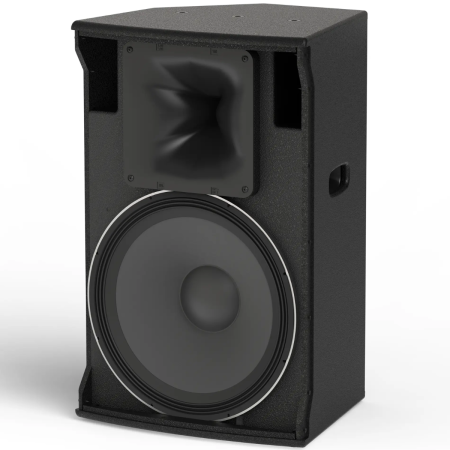

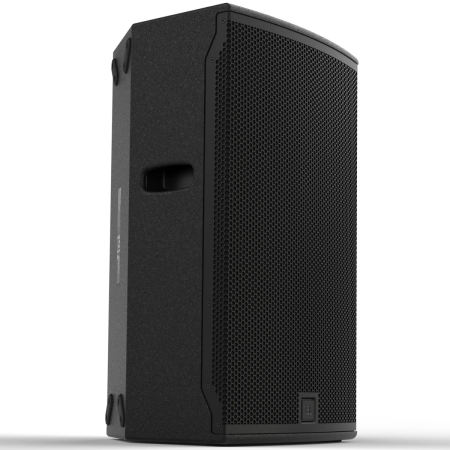

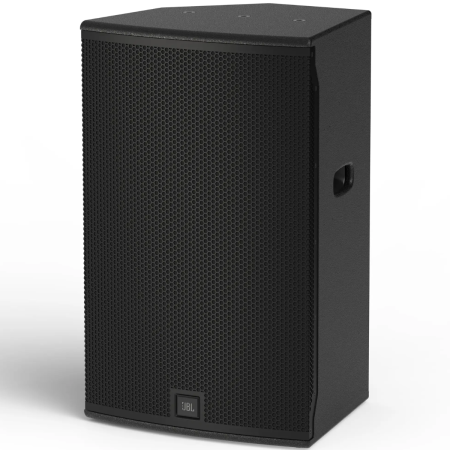

The JBL SRX915M is engineered for sound professionals who need powerful full-range performance from a multi-purpose loudspeaker. Its JBL 275F 15-inch woofer incorporates patented Differential Drive technology with dual 2-inch voice coils and a ferrite magnet. A JBL 2408H-1 neodymium compression driver handles high-frequency reproduction, providing detailed vocal clarity and controlled projection.
The integrated Class-D amplifier delivers 600W continuous power, divided into 400W for the low-frequency section and 200W for the high-frequency section. With a maximum SPL of 134dB and a frequency range of 50Hz–20kHz, the SRX915M is suitable for live music, DJ systems, vocal reinforcement, stage monitoring, and other demanding sound applications.

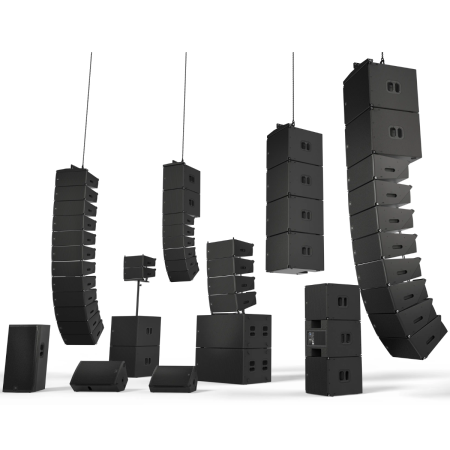

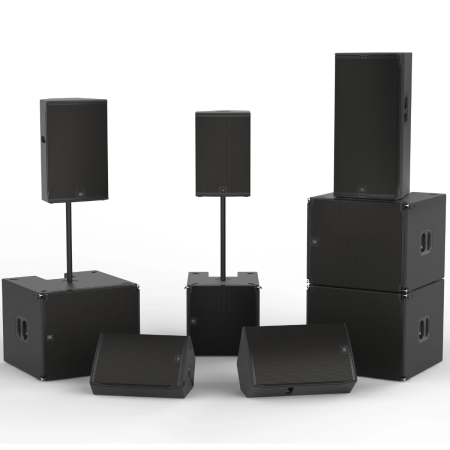

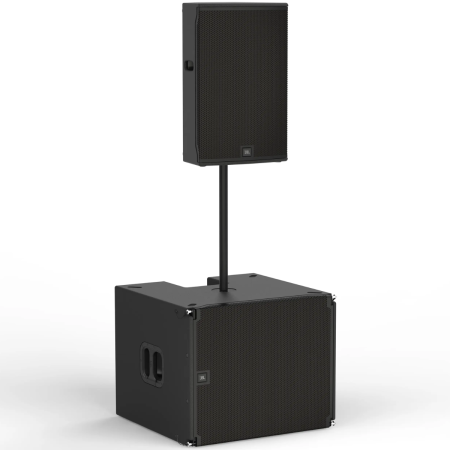

JBL's rotatable Progressive Transition waveguide provides a 90° horizontal by 60° vertical coverage pattern in its standard orientation. The speaker's voicing and phase response are optimized to complement SRX900 line-source products, while an available 80Hz high-pass preset supports configurations using SRX900 subwoofers.

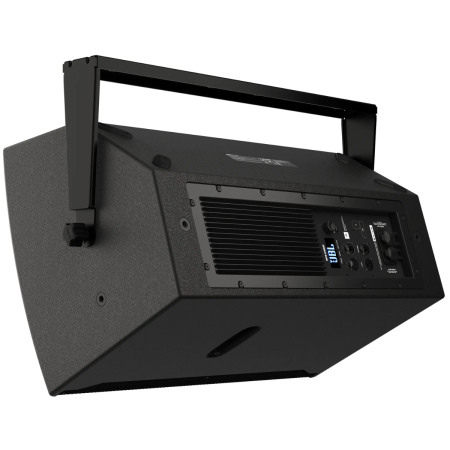

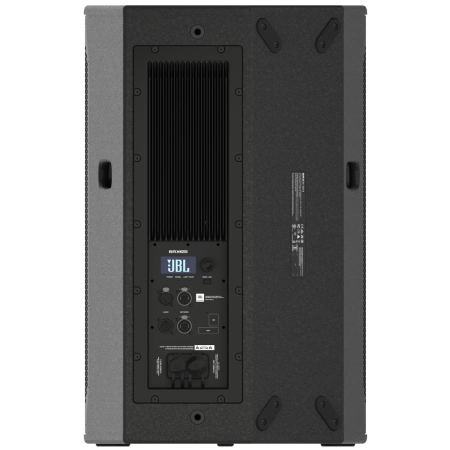

Integrated digital signal processing provides comprehensive loudspeaker management without requiring an external processor. The rear-panel LCD supports direct configuration, while 24 user-adjustable filters, up to 2,000ms delay, and additional processing tools allow the speaker to be adapted to different environments. JBL's software suite supports system control and monitoring on Windows, macOS, and iPadOS devices.

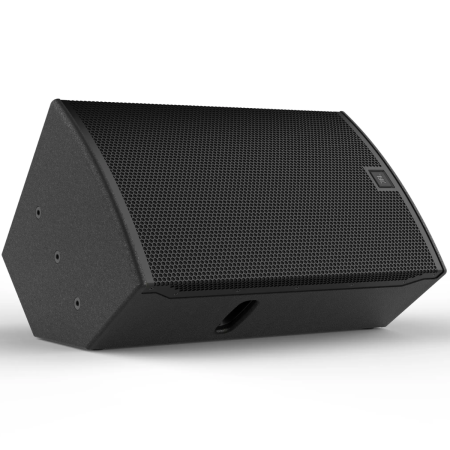

The multi-purpose enclosure is constructed from exterior-grade Baltic birch plywood with a durable DuraFlex finish. Its low-profile design incorporates a 45° monitor angle for floor wedge applications, two integrated carrying handles, and seven M10 QuickLink suspension points for use with compatible rigging hardware and accessories.
SRX915M Features
- 15-inch two-way powered point-source loudspeaker
- 134dB maximum SPL
- 600W continuous Class-D amplification
- 400W continuous low-frequency amplifier power
- 200W continuous high-frequency amplifier power
- JBL 275F 15-inch Differential Drive woofer
- Dual 2-inch low-frequency voice coils
- JBL 2408H-1 neodymium compression driver
- Rotatable Progressive Transition waveguide
- 90° x 60° coverage pattern
- 50Hz low-frequency extension
- 80Hz high-pass preset for use with SRX900 subwoofers
- 45° stage monitor angle
- Voicing and phase response optimized for SRX900 line-source products
- Integrated digital signal processing
- 24 user-adjustable DSP filters
- Up to 2,000ms DSP delay
- Rear-panel LCD for configuration
- Software control and monitoring for Windows, macOS, and iPadOS
- Seven M10 QuickLink suspension points
- Exterior-grade Baltic birch plywood enclosure
- Durable DuraFlex cabinet finish
- Two integrated carrying handles
- Suitable for main PA, stage monitoring, and installed sound applications
SRX915M Specifications
- System Type: Multi-Purpose Two-Way Powered Point-Source Loudspeaker
- Frequency Range (-10dB): 50Hz–20kHz
- Maximum SPL: 134dB
- Coverage Pattern: 90° x 60°
- Waveguide: Rotatable Progressive Transition
- Amplifier Design: Class-D
- Continuous Power Rating: 600W
- Low-Frequency Power: 400W Continuous
- High-Frequency Power: 200W Continuous
- LF Driver: 1 x JBL 275F, 15 in
- LF Driver Technology: Differential Drive
- LF Voice Coils: Dual 2 in
- LF Magnet Type: Ferrite
- HF Driver: 1 x JBL 2408H-1 Neodymium Compression Driver
- HF Driver Exit Diameter: 1 in
- HF Voice Coil: 1.5 in
- DSP Filters: 24 User-Adjustable
- Maximum DSP Delay: 2,000ms
- High-Pass Preset: 80Hz for SRX900 Subwoofer Applications
- Monitor Angle: 45°
- Suspension Points: 7 x M10 QuickLink
- Enclosure Material: Exterior-Grade Baltic Birch Plywood
- Finish: DuraFlex
- Handles: 2 Integrated
- Dimensions (H x W x D): 26.2 x 16.9 x 14.5 in (666 x 428 x 367 mm)
- Net Weight: 55 lb (24.7 kg)
JBL JBLP3363MX
(JBL SRX915M)
