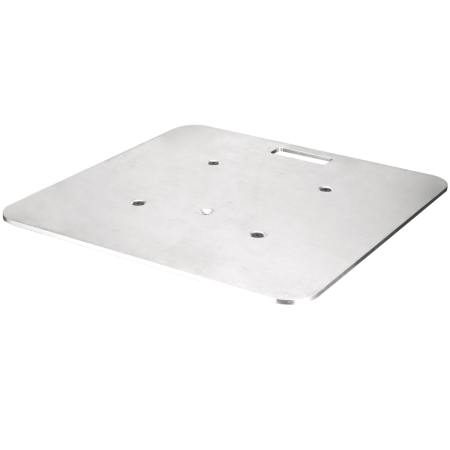

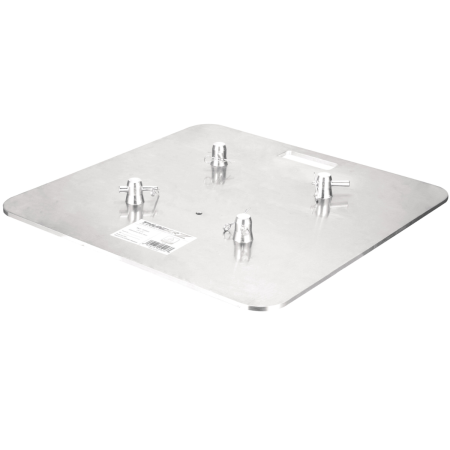

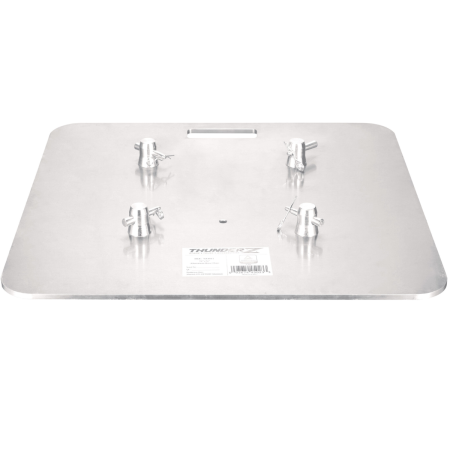

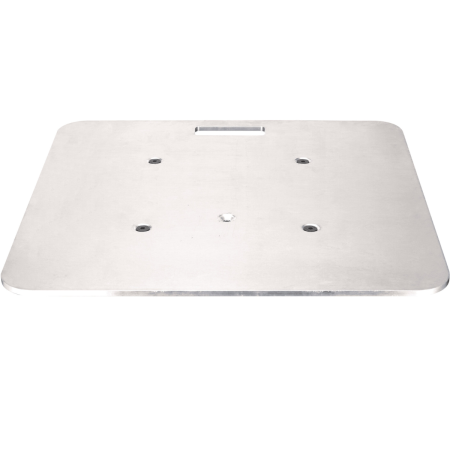

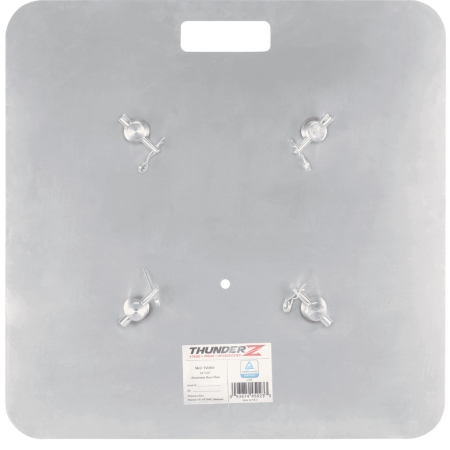

JMAZ Thunderz TZ1011

Square Truss Base Plate

The JMAZ Thunderz TZ1011 is a 24-inch aluminum base plate designed to provide a broad mounting point for compatible standard F34 square truss sections. Its large footprint is useful for vertical truss installations in stage lighting, event production, exhibits, displays, and other modular truss applications.

JMAZ Thunderz TZ1011 Competitive Differences

• Large 24 x 24-inch footprint provides a substantial mounting surface
• Designed for compatibility with standard F34 square truss systems
• Constructed from EN-AWT6082 aluminum
• 0.20-inch plate thickness supports a low-profile truss foundation

JMAZ Thunderz TZ1011 Description

The JMAZ Thunderz TZ1011 provides a dedicated base connection for compatible square truss structures. Its 24-inch-square platform is designed for applications that require a larger base surface for properly configured vertical truss assemblies.

Manufactured from EN-AWT6082 aluminum, the TZ1011 is built for repeated use in mobile productions and installed environments. The aluminum construction provides durability while keeping the plate manageable for production crews and system installers.

The base plate measures 0.20 inches thick and weighs 20 pounds. Its standard F34 compatibility makes it suitable for appropriate TZ34 and F34-style truss systems used in stage lighting, event displays, exhibits, and production structures.

TZ1011 Features

• 24-inch square aluminum truss base plate
• Designed for standard F34 truss systems
• EN-AWT6082 aluminum construction
• Large mounting footprint
• Low-profile 0.20-inch plate thickness
• Suitable for vertical truss installations
• Designed for stage, lighting, exhibit, display, and event-production applications

TZ1011 Specifications

• Product Type: Square truss base plate
• Material: EN-AWT6082 aluminum
• Truss Compatibility: Standard F34
• Dimensions: 24 x 24 x 0.20 in (609.6 x 609.6 x 5.1 mm)
• Weight: 20 lb (9.1 kg)

JMAZ TZ1011 (JMAZ 24×24 inch Aluminum TZ34 Square Truss Base Plate)
