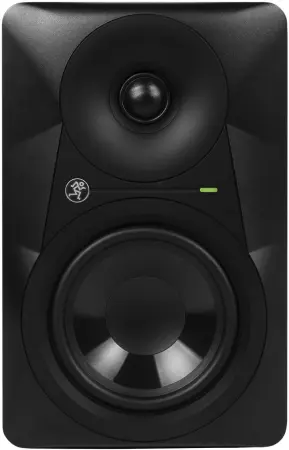

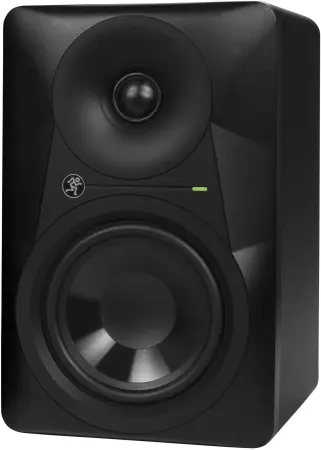

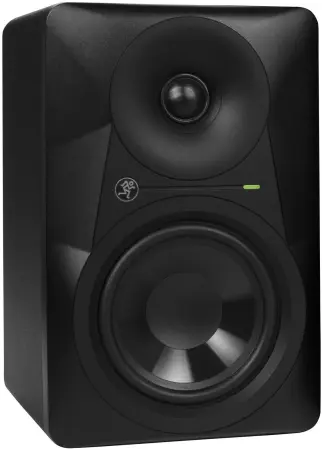

Mackie MR524 Powered Studio Monitor
Part of Mackie's MR Series, Mackie MR524 5" studio monitors offer professional performance, clarity and superior mix translation so you can listen with confidence knowing your mix will sound great anywhere. Drawing from Mackie's extensive studio monitor design experience, MR524 studio monitors are precision tuned to stay true to your mix whether it's dialogue, hip hop, rock and beyond.
Mackie's proven logarithmic waveguide provides an ultra-wide listening sweet spot and enhanced stereo imaging while the Acoustic Space controls allow you to adjust the frequency response of the monitor to match your studio. Add the MRS10 Powered Studio Subwoofer for powerful, deep low end.
Mackie MR524 Studio Monitor Features:
Designed for superior mix translation and accuracy for professional results in any studio
Equipped with Mackie's proven logarithmic waveguide design: Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
1" silk dome tweeter provides fast transient response for detailed high end and vocal clarity
5" polypropylene woofer delivers responsive, dynamic low frequency response
50 watts of bi-amplified Class A/B amplification
Frequency response: 45 Hz - 20 kHz
Adjustable Acoustic Space filters maintain flat response in typical placement configurations
HF filter applies boost or cut to compensate for particularly dull or bright sounding rooms
Professional all-wood cabinet design built to last and look great in any studio
Custom designed internal bracing adds stiffness for reduced distortion and enhanced low frequency response

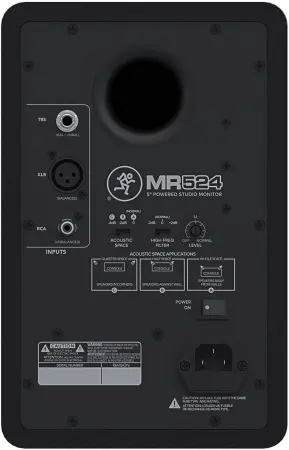

Flexible inputs for simple connection to almost any audio source
Acoustically optimized with sound-tightening acoustic absorption material
Add the companion MRS10 studio subwoofer for powerful, deep low frequency extension perfect for electronic music, hip-hop and more
Mackie MR524 Studio Monitor Specifications:
Frequency Response 57 Hz to 20 kHz, (-3 dB)
45 Hz to 20 kHz, (-10 dB)
SPL 102 dB SPL @ 3.3' / 1.0 m (+4 dBu into balanced input)
Maximum SPL 108 dB SPL @ 3.3' / 1.0 m (per pair)
Transducer Low Frequency: 5.25" / 133 mm (polypropylene-coated woofer)
High Frequency: 1.0" / 25 mm (silk dome tweeter)
Power 50 W
Crossover Crossover Frequency: 2 kHz
Controls and Processing Power
Level
HF-boost/cut
Acoustic space control
AC Power 100 to 120 VAC
Enclosure Rugged all-wood design, internal acoustic absorption material, minimum-diffraction molded baffle, custom-tuned zero-turbulence rear port, logarithmic waveguide, and textured finish
Dimensions 11.1 x 7.1 x 8.7" / 282.0 x 180.0 x 221.0 mm
Weight 10.2 lb / 4.6 kg
