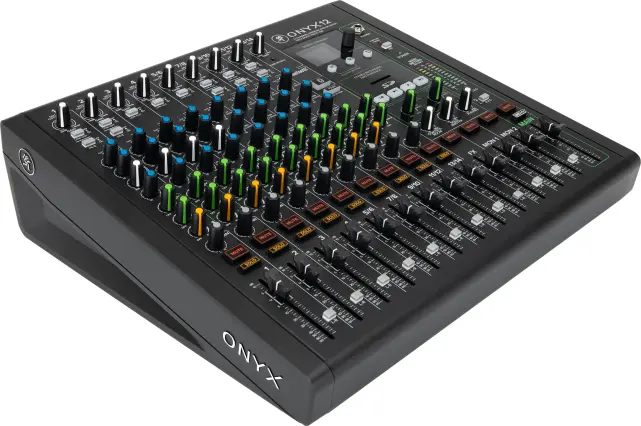

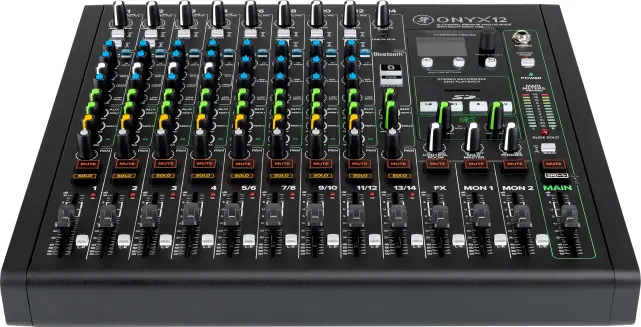

Mackie Onyx12 12-Channel Premium Analog Mixer with USB | Professional Sound and Versatile Connectivity
Powerful 12-Channel Mixer with Onyx Preamps, USB Multitrack Recording, and DSP Effects
The Mackie Onyx12 is a 12-channel premium analog mixer designed to deliver studio-quality sound in a compact form factor. Featuring 8 Onyx mic preamps , 96kHz/24-bit USB multitrack recording , and powerful DSP effects , the Onyx12 is perfect for live audio, home recording, and content creation. With its advanced features like Bluetooth streaming and direct SD card recording , the Onyx12 provides the flexibility and performance professionals need.
Competitive Differences
- 8 award-winning Onyx mic preamps offer up to 60 dB of gain for pristine sound quality.
- High-resolution 96kHz / 24-bit multitrack recording via USB for capturing high-fidelity audio.
- British-style Perkins EQ with sweepable midrange delivers classic analog warmth and flexibility.
- SD card recording and playback for easy, direct-to-storage performance recording.
- Bluetooth® streaming allows wireless audio input for seamless mixing.
- Full-color display with intuitive single-knob navigation for FX control and SD file management.
Full Description
The Mackie Onyx12 12-Channel Analog Mixer is designed for the modern content creator, live performer, and studio engineer. Featuring 8 award-winning Onyx mic preamps with up to 60 dB of gain, this mixer ensures crystal-clear audio with an ultra-low-noise analog circuit . The British-style Perkins EQ with sweepable midrange offers classic, warm tones reminiscent of vintage analog consoles from the '60s and '70s, giving users the ability to craft their perfect sound.
The Onyx12 supports 96kHz / 24-bit multitrack recording via USB and offers direct SD card recording for capturing stereo mixes without the need for external devices. With Bluetooth® streaming, users can wirelessly input audio from their Bluetooth-enabled devices, providing even more flexibility in live or studio setups. The mixer’s powerful DSP effects include customizable reverbs, delays, and more, which can be easily controlled via the intuitive full-color display and single-knob interface.
Built with rugged steel construction and QuickGrip™ side cheeks for mobility, the Onyx12 is durable and designed for professional use in any environment.
Features
- 8 Onyx mic preamps with up to 60 dB of gain for professional sound quality
- High-resolution 96kHz / 24-bit multitrack recording via USB for pristine audio capture
- British-style Perkins EQ with sweepable midrange for vintage analog warmth
- Direct-to-SD card stereo recording and playback for easy performance recording
- Bluetooth® streaming for wireless audio input
- Full-color display with single-knob interface for intuitive control
- Built-in DSP effects including reverb, delay, and chorus with user-customizable presets
- 3-band EQ with On/Off bypass switch on all channels
- Hi-Z switches for direct connection of guitars, basses, and other instruments
- 100Hz low-cut filter and 48V phantom power on all mic channels
- Aux/Monitor outputs with per-channel send control
- Control Room outputs and headphone output with dedicated level control
- Built-Like-A-Tank™ steel chassis with sealed rotary controls
Specifications
- Inputs: 8 XLR mic/line , 2 stereo line inputs , 1 stereo 1/8” input , Bluetooth® streaming
- Outputs: Main Mix , Aux/Monitor , Control Room , Headphones
- Recording: 96kHz / 24-bit USB , Direct-to-SD card recording
- Built-in Effects: Reverb, Delay, Chorus , with customizable presets
- Power Supply: Multi-voltage for worldwide use
- Chassis: Built-Like-A-Tank™ steel with QuickGrip™ side cheeks
- Weight: 12.5 lbs (5.7 kg)
What's in the Box
- Mackie Onyx12 Mixer
- External Power Supply
- Owner’s Manual
Mackie Onyx 12
(Mackie Onyx-12)
