Dual-Channel Personal Monitor Mixer
The
Midas MDS-DP48 is a powerful personal monitoring solution for live performers and studio musicians alike. Designed to integrate with AES50-enabled systems, the DP48 gives two users full independent control of their stereo monitor mixes using 48 channels grouped into 12 customizable stereo groups. With its intuitive layout, SD card recording, and onboard reverb, EQ, and compression, the DP48 is the ideal choice for modern monitoring workflows.
Midas MDS-DP48 Competitive Differences
- Dual 48-channel personal monitor mixer with separate Mix A and Mix B outputs
- 12 stereo groups for easy mix organization and control
Midas MDS-DP48 Description
The
DP48 redefines personal monitoring by allowing two performers to share one compact unit while maintaining full control over their own mix. Each user can configure up to 12 stereo groups using the 48 available channels, giving musicians the freedom to separate instruments, vocals, or stems to their preference. Individual EQ, reverb, and compression can be applied to each group, while the Mix A and B outputs feature their own EQ, limiter, and reverb controls—ideal for adapting to different headphones or in-ear monitors.
Setup is fast and flexible thanks to AES50 connectivity with Midas or compatible systems. A built-in SD card recorder adds the ability to capture rehearsals or performances directly from the monitor mix. The DP48 also features stereo ambience microphones, making it easy to blend in stage or room sound as needed.

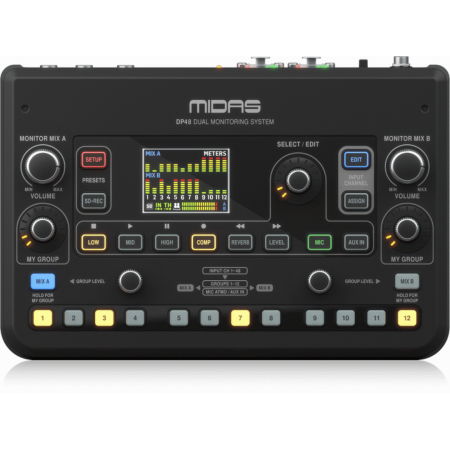

Each function is accessible through a simple user interface with dedicated controls and a central SELECT/EDIT knob for parameter adjustments. Whether you’re a vocalist looking for clarity, a drummer needing a complex multi-mic mix, or a front-of-house engineer configuring multiple performer setups, the MDS-DP48 makes custom monitoring fast, efficient, and fully independent.
Model Features
- Dual personal monitor mixer—two users per unit
- 48-channel input over AES50 with 12 stereo groups
- Individual 3-band EQ, compression, and reverb per group
- SD card recorder for rehearsal and performance capture
- Stereo ambiance mic with blendable room sound
- Independent Mix A and Mix B outputs with EQ, limiter, and reverb
- Pan, volume, and “My Group” quick access control
Model Specifications
- Inputs: AES50 (up to 48 channels)
- Groups: 12 stereo groups
- Outputs: 2 x Stereo Mix (A & B)
- Recording: SD card (stereo recording/playback)
- Control: DMX-style control interface with Select/Edit knob
- Dimensions: 14.6 x 22.0 x 37.0 cm
- Weight: 1.3 kg (2.87 lb)
- Power: Remote power via AES50 or external PSU
What's In The Box
- Midas DP48 personal monitor mixer
- SD card slot (SD card not included)
- User manual
Midas MDS-DP48
(Midas DP48_US1)
