Touch-Sensitive Motorised Fader Set
The

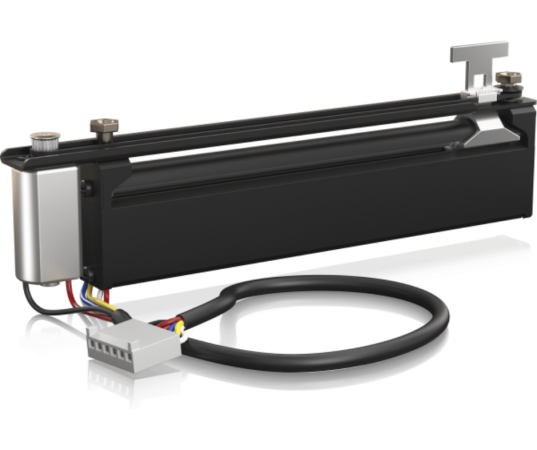

Midas MDSP-PROFADER550MM is a precision-engineered set of five 100mm motorised faders with touch-sensing, designed specifically for the center sections of Midas PRO3, PRO6, PRO9, and PRO X digital consoles. Featuring a 550mm cable, these premium faders offer unmatched durability, precise servo control, and tactile accuracy for critical fader automation and control workflows.
Midas MDSP-PROFADER550MM Competitive Differences
- Long 550mm cable designed for center bay applications in PRO Series consoles
- Built to withstand 1 million cycles — 3x longer than most competitors
Midas MDSP-PROFADER550MM Description
Midas MDSP-PROFADER550MM faders are developed from the ground up with an operator-first design approach, drawing on Midas' extensive experience in digital console manufacturing. These faders feature a highly linear 10 kΩ resistive track, paired with a smooth-touch conductive T-Bar and integrated touch sensing, enabling advanced automation, channel selection, and precise servo motor control.
Engineered for performance and longevity, each unit is rated for up to one million use cycles, tripling the lifespan of traditional fader components. The fader’s mechanical design includes semi-precious metal wiper fingers for superior wear resistance, and a Mabuchi motor ensures consistent motion control across all mixing environments.
Intended for the input/output bays of Midas PRO Series consoles—especially center bays—the 550mm cable provides flexible, integrated connection to the console’s control hardware. These faders are also a reliable drop-in replacement for industry standards like the Penny+Giles PGFM3200 and Alps K-Fader.
Model Features
- Set of 5 touch-sensitive 100mm motorised faders
- 550mm cable length for center bay console installation
- 10 kΩ linear law for accurate servo-based control
- Conductive T-Bar and sensor track for touch detection
- Compatible with PRO3, PRO6, PRO9, and PRO X consoles
- Replacement for standard 100mm motorised faders (P&G, Alps)
- UK-engineered and manufactured
Model Specifications
- Fader Travel: 100 mm
- Track Resistance: 10 kΩ ± 20%
- Track Law: Linear
- Track Linearity: ± 2%
- Mounting: M3 threaded, 120 mm center spacing
- Motor: Mabuchi FF-050SB-09250, 8V nominal drive
- Cable Length: 550 mm
- Connector: 6-way 2.54 mm latching (Molex 22-01-2065 with 08-50-0031 crimps)
- Connections:
- 1 – Grey – Touch Sense
- 2 – Yellow – Wiper
- 3 – Blue – 0% Travel
- 4 – Red – 100% Travel
- 5 – Red – Motor (+)
- 6 – Black – Motor (-)
- Dimensions: 12.60 x 7.35 x 1.25 in
What's In The Box
- 5x Midas MDSP-PROFADER550MM motorised faders
- Attached 550 mm cables
Midas MDSP-PROFADER550MM
(Midas PRO FADER (550 MM))
