20A Rackmount Power Conditioner with Advanced RX Series Surge Protection
The
Juice Goose RX100-20A is a premium 20-amp rackmount power distribution unit designed for the most demanding AV and digital equipment setups. Featuring industry-leading RX Series Hybrid Filter Technology, it offers robust protection from power surges, wiring faults, and high-frequency interference — ensuring stable, clean power delivery and reliable system performance in professional environments.
Juice Goose RX100-20A Competitive Differences
- RX Hybrid Filter Technology minimizes ground surges to 0.50V and line-to-neutral surges to 10V
- Tour Classâ„¢ steel chassis with reinforced rack-mount brackets for road-ready durability
- 20A capacity with eight total NEMA 5-20R outlets — seven rear, one front
- High-frequency noise filtering (EMI/RFI) on both normal and common mode lines
- LED indicators display active protection and wiring fault conditions
- Over-voltage shutdown and protection from external wiring faults
- Non-sacrificial protection for extended service life and safe power filtering
Juice Goose RX100-20A Description
The
RX100-20A brings unmatched surge suppression and power conditioning to high-current, mission-critical AV applications. With 20 amps of capacity and eight NEMA 5-20R outlets, it powers and protects multiple pieces of rack-mounted gear — especially systems reliant on precise signal processing and digital control.
Using a multi-stage hybrid filter, the RX Series targets dangerous surges and subtle signal-degrading interference. Normal mode surges (between line and neutral) are limited to 10 volts, while common mode surges (neutral to ground) are suppressed to just 0.50 volts — minimizing logic ground interference and maintaining system stability.

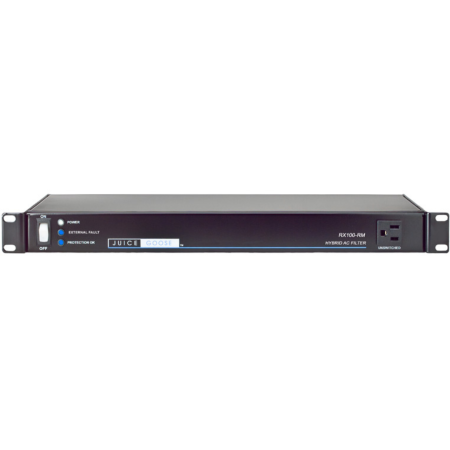

Housed in a rugged Tour Classâ„¢ 1U steel chassis, the RX100-20A is built to perform in both fixed installs and portable rigs. The detachable 7-foot power cord with NEMA 5-20P plug requires a 20-amp receptacle for full-rated performance.
RX100-20A Features
- RX Series Hybrid Filter Technology

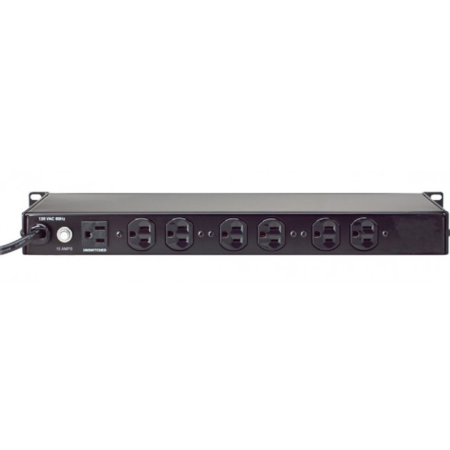

- Eight NEMA 5-20R receptacles (7 rear, 1 front)
- LED status indicators: Protection OK, external wiring fault
- Over-voltage shutdown and noise filtration
- Non-sacrificial surge protection (no MOV failure risk)
- Tour Classâ„¢ 1U steel enclosure with reinforced brackets
- Made in the USA
RX100-20A Specifications
- Operating Voltage: 120 VAC, 60 Hz
- Maximum Current Load: 20 Amps
- Power Cord: 7 ft, 12/3 SJT with NEMA 5-20P plug
- Outlets: 8 x NEMA 5-20R
- Transient Energy Absorption: 1,020 joules
- Max Surge Voltage: 6,000V
- Max Surge Current: 3,000A
- Let-Through Voltage:
- Line to Neutral: 10V
- Neutral to Ground: 0.50V
- Noise Filtration:
- Common Mode (N-G): 80dB @ 1–30MHz
- Normal Mode (L-N): 60dB @ 1–30MHz
- Chassis Material: 16-gauge steel
- Dimensions (H x W x D): 1.75" x 19" x 7"
- Weight: 10 lbs
JUICE GOOSE RX100-20A
(Juice Goose RX10020A)
