Rackmount AC Power Sequencer for Audio Systems & Installations
The
Juice Goose SQ1500 is a compact, rackmountable AC power sequencer ideal for single-rack applications that require coordinated power control. Designed for use in commercial AV, audio, and broadcast systems, this 15-amp sequencer offers both local and remote activation with easy wiring and reliable surge protection. It features three-step sequencing via grouped Power Pods, ensuring orderly powering of gear to protect equipment and eliminate pops or overloads.
Juice Goose SQ1500 Competitive Differences
- Three-stage power sequencing with six switched outlets grouped in three Power Pods
- Remote activation via latching contact closure for simple integration
- Surge/spike protection and noise filtering on all outputs
- Real-time monitoring with processor heartbeat LED and individual relay LEDs
- Unswitched rear outlet for always-on gear
- Durable 16-gauge steel chassis with front panel status indicators
Juice Goose SQ1500 Description
The

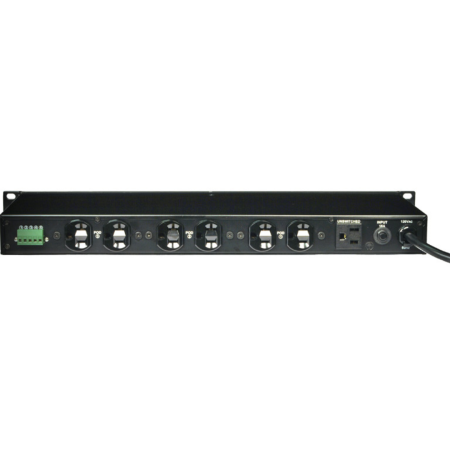

SQ1500 is purpose-built to deliver reliable power sequencing in small to mid-size AV installations. Whether installed in a mobile rack, church AV system, or conference room setup, it ensures your devices power on and off in a safe, controlled sequence. The rear panel provides seven total AC outlets—six switched and one unswitched—supporting a total load of up to 15 amps. The sequenced outputs are divided into three stages (Power Pods) of two outlets each, triggered by onboard logic or external contact closure.
The rugged steel chassis is built to endure the rigors of professional use, and its 1U height allows for easy integration into any standard rack. An onboard seven-foot power cord with a NEMA 5-15P plug allows plug-and-play deployment. This unit includes robust surge protection and line filtering for clean, reliable power delivery.
SQ1500 Features
- Stand-alone 3-stage power sequencer
- Seven AC outlets: six sequenced (3 Power Pods), one unswitched
- 15A total capacity with 30A-rated relays
- Remote control via latching contact closure
- LED monitoring for relay status and processor operation
- Built-in surge protection and line noise filtration
- Rugged 16-gauge steel chassis with 1U rackmount form factor
SQ1500 Specifications
- Chassis Material: 16-gauge steel
- Dimensions: 1.75" H x 19" W x 7" D
- Weight: 10 lbs
- Power Input: 7 ft. power cord with NEMA 5-15P plug
- Power Output: Six NEMA 5-15R sequenced, one NEMA 5-15R unswitched
- Relay Rating: 30A
- Circuit Breaker: 15A thermal, rear-mounted
- Voltage: 120 VAC @ 60Hz
- Sequence Events: Three
- Signal Connections: 5-position terminal block (14–24 AWG)

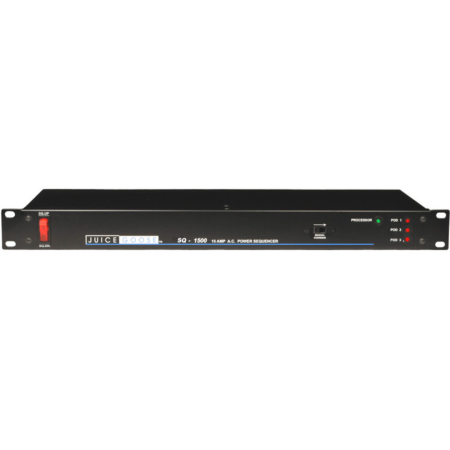

- Monitoring: Front-panel LEDs for sequencing and processor status
JUICE GOOSE SQ1500
(Juice Goose SC-1500)
