Name: Palmer PAOCLTRSM | 4-Channel TRS Audio-over-Cat Adapter with Color-Coded Balanced Outputs
Brand: Palmer
SKU: 115826
Price: 149.99 USD
Availability: PreOrder

Compact Multicore Solution for TRS Audio Over Ethernet

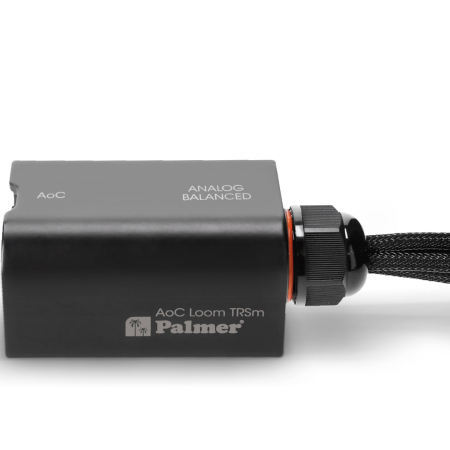

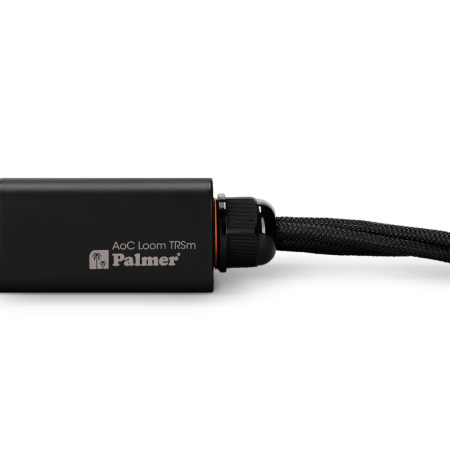

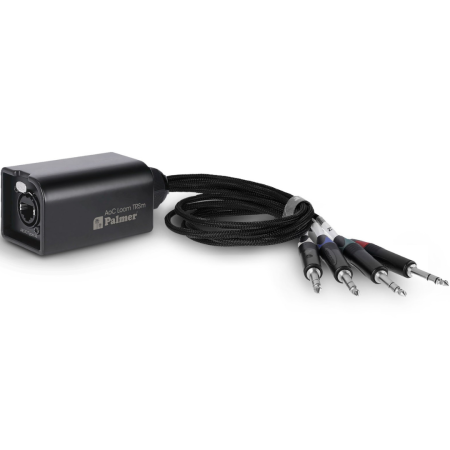

The Palmer PAOCLTRSM is a rugged and efficient 4-channel balanced audio-over-Cat adapter featuring four 6.35 mm (1/4") TRS outputs. Ideal for live events, studios, and installations, it transmits audio via a single standard Ethernet cable—eliminating bulky multicore snakes without sacrificing audio quality.

Palmer PAOCLTRSM Competitive Differences

Transmit 4 balanced analog audio channels over a single Cat cable
Equipped with 4 color-coded and numbered 1/4” TRS male connectors for fast setup
Features high-quality Neutrik etherCON connector with lock protection
Durable aluminum-steel housing and reinforced mesh cable jacket for touring-grade reliability
Flexible 50 cm (19.7") cable fanout

Palmer PAOCLTRSM Description

The PAOCLTRSM offers a compact alternative to bulky 4-channel TRS multicore looms. Designed to support balanced analog signals with minimal distortion, this adapter maintains pristine audio quality even in demanding environments.

Thanks to Neutrik connectors and color-coded TRS plugs, this adapter is easy to identify and quick to integrate into existing setups. Whether routing signals to a mixer, stage box, or interface, the RJ45 connection enables fast and clean deployments.

PAOCLTRSM Features

4-channel balanced audio transmission via standard Ethernet cable

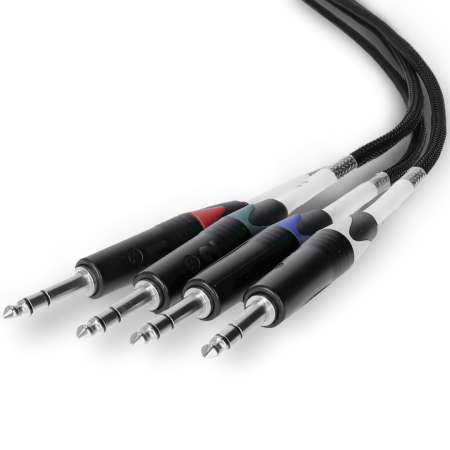

Color-coded 6.35 mm TRS connectors for channel identification

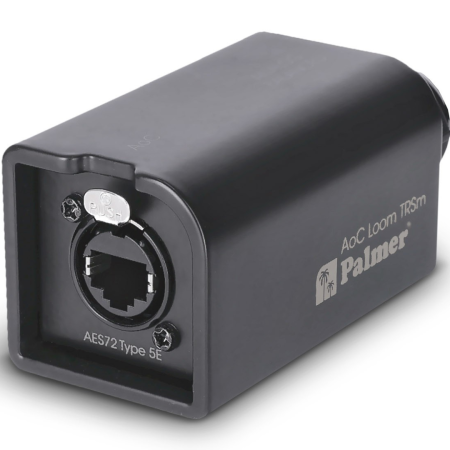

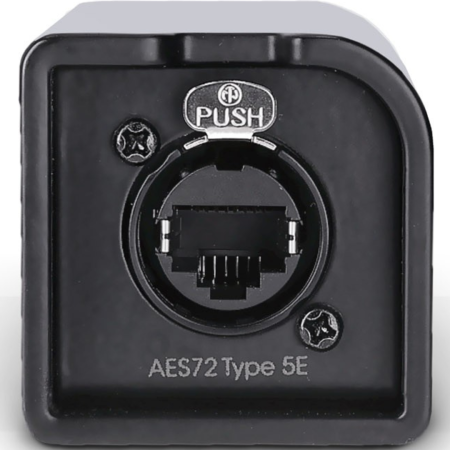

RJ45 etherCON input with lock mechanism to prevent disconnection

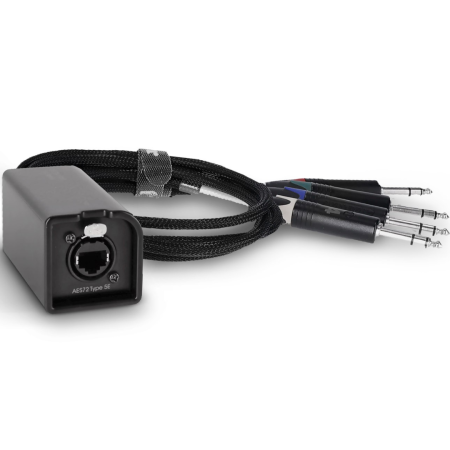

High-quality mesh cable split with 0.5 m (19.7 in) fanout
Compact, road-ready aluminum-steel construction

PAOCLTRSM Specifications

Inputs: 1x RJ45 (etherCON)
Outputs: 4x 6.35 mm TRS male, balanced
Max Input Level: +32 dBu
Frequency Response: 0 Hz – 20 kHz
THD: < 0.0005%
Color Coding: Red (Ch 1), Green (Ch 2), Blue (Ch 3), White (Ch 4)
Cable Length: 0.5 m (19.7 in)
Operating Temperature: -4°F to 158°F (-20°C to 70°C)
Humidity: < 80% (non-condensing)
Dimensions: 3.15" x 1.77" x 1.77" (80 x 45 x 45 mm)
Weight: 0.77 lbs (0.35 kg)

Palmer PAOCLTRSM (Palmer PAL-PAOCLTRSM)

Brand	Palmer
Name	Palmer PAOCLTRSM \| 4-Channel TRS Audio-over-Cat Adapter with Color-Coded Balanced Outputs
Primary Category	Audio-over-Cat Adapter

Build Material	Aluminum-steel housing
Dimensions	3.15" x 1.77" x 1.77" (80 x 45 x 45 mm) mm
Included Accessories	0.5 m (19.7 in) cable fanout m
Weight	0.77 lbs (0.35 kg) kg

Channels	4

Connectivity Protocols	Ethernet (RJ45 etherCON)
Frequency Response	0 Hz – 20 kHz Hz

The Palmer PAOCLTRSM offers a compact, reliable, and high-quality solution for transmitting 4 balanced audio channels over a single Ethernet cable, reducing cable clutter and setup time in live, studio, and installation environments.

It converts four balanced analog audio signals into data transmitted over a single Cat cable via an RJ45 etherCON connector, then outputs them through color-coded 6.35 mm TRS connectors, ensuring easy identification and quick integration.

The adapter features a rugged aluminum-steel housing, Neutrik etherCON connector with lock protection, and color-coded TRS outputs, providing touring-grade durability and fast, error-free setup.

Transmits 4 balanced analog audio channels over a single Cat cable; Equipped with 4 color-coded and numbered 1/4” TRS male connectors for fast setup; Features high-quality Neutrik etherCON connector with lock protection; Durable aluminum-steel housing and reinforced mesh cable jacket for touring-grade reliability; Flexible 50 cm (19.7") cable fanout.

Inputs: 1x RJ45 (etherCON); Outputs: 4x 6.35 mm TRS male, balanced; Max Input Level: +32 dBu; Frequency Response: 0 Hz – 20 kHz; THD: < 0.0005%; Color Coding: Red (Ch 1), Green (Ch 2), Blue (Ch 3), White (Ch 4); Cable Length: 0.5 m (19.7 in); Operating Temperature: -20°C to 70°C; Humidity: < 80% non-condensing; Dimensions: 80 x 45 x 45 mm; Weight: 0.35 kg.
