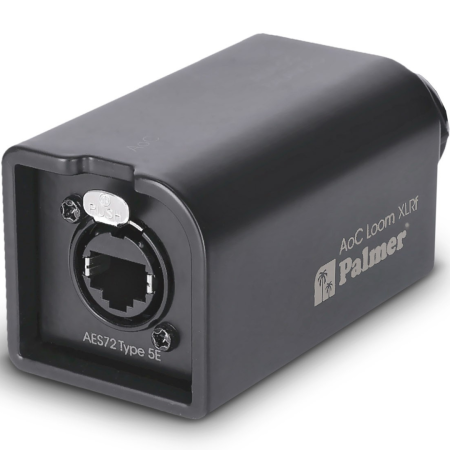

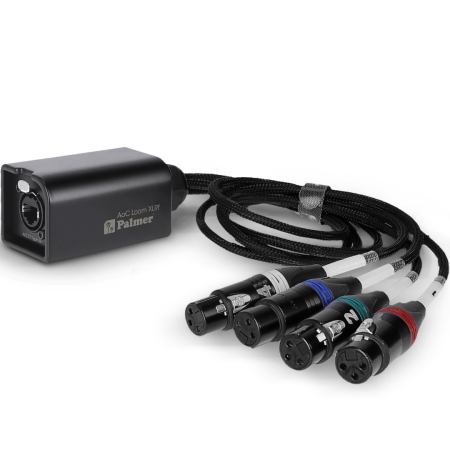

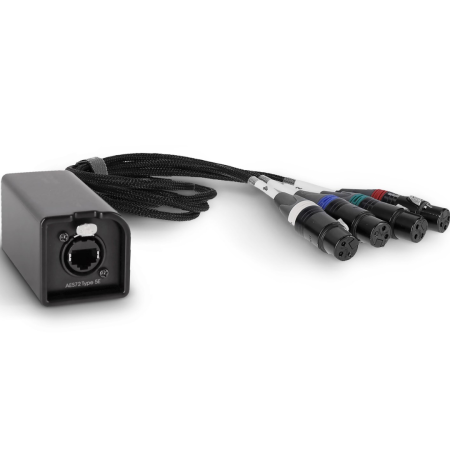

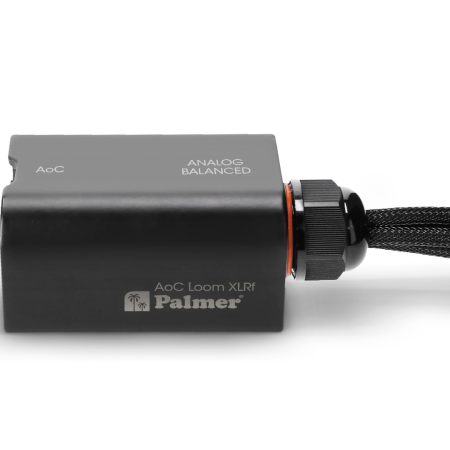

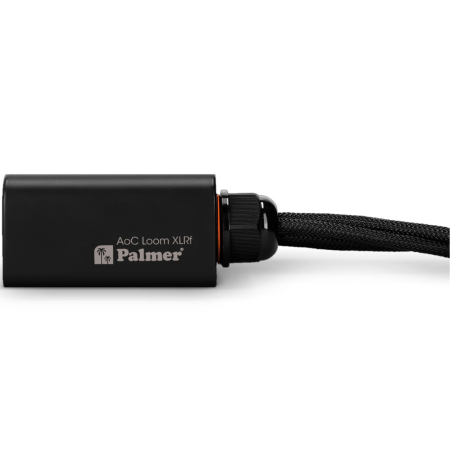

Palmer PAOCLXLRF

Flexible 4-Channel XLR Female Audio Adapter via Ethernet

The Palmer PAOCLXLRF is a professional-grade audio-over-Cat adapter cable featuring four XLR female outputs for stable, high-quality signal transmission. Designed to send up to 4 analog or 8 AES3 digital audio signals over a single Ethernet cable, it's the ideal compact solution for live events, studios, or installations requiring flexible connectivity and pristine sound quality.

Palmer PAOCLXLRF Competitive Differences

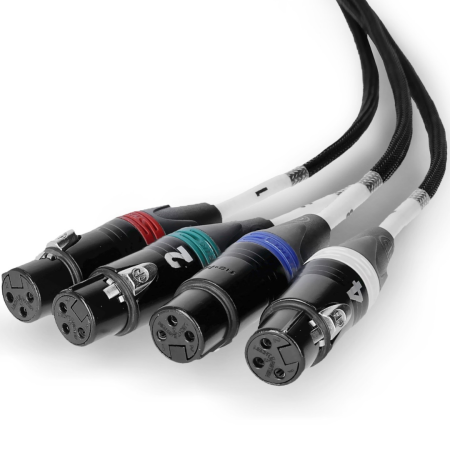

• Color-coded, numbered XLR female connectors for quick identification
• Supports balanced analog audio, DMX, MIDI, and 48V phantom power
• Rugged 0.5m cable design with heavy-duty Neutrik etherCON connector
• Shielded aluminum-steel housing ensures long-term durability
• Reliable RJ45 interface for seamless signal transfer

Palmer PAOCLXLRF Description

Offering a cost-effective and compact alternative to bulky multicore snakes, the PAOCLXLRF is built for professional environments where efficiency and durability are essential. Whether used on tour, in the studio, or in conference venues, this 4-channel adapter simplifies signal routing while delivering superior audio fidelity over a standard Ethernet cable.

The Ethercon connector provides a secure, lock-resistant connection, while the robust construction guarantees performance in demanding conditions. Each XLR output is color-coded and labeled, enabling fast, error-free setups on any stage or install.

PAOCLXLRF Features

• Transmits 4 balanced analog or 8 AES3 digital signals via RJ45
• Output connectors: 4x XLR 3-pin female
• Color-coded and numbered for fast channel identification
• Supports 48V phantom power, DMX, and MIDI signals
• Includes 0.5m flexible mesh cabling
• Constructed with high-quality Neutrik and durable housing materials

PAOCLXLRF Specifications

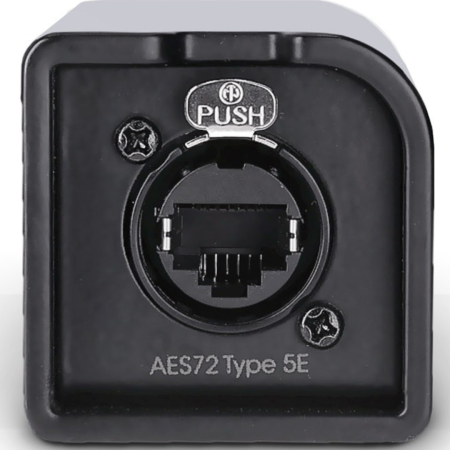

• Input: 1x RJ45 (etherCON)
• Outputs: 4x XLR 3-pin female, balanced
• Cable Length: 19.7 in (0.5 m)
• Max Input Level: +32 dBu
• Frequency Range: 0 Hz – 20 kHz
• THD: < 0.0005%
• Material: Aluminum, Steel
• Dimensions: 3.1" x 1.8" x 1.8" (80 x 45 x 45 mm)
• Weight: 0.86 lbs (0.39 kg)
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• Humidity Tolerance: < 80% non-condensing

Palmer PAOCLXLRF (Palmer PAL-PAOCLXLRF)
