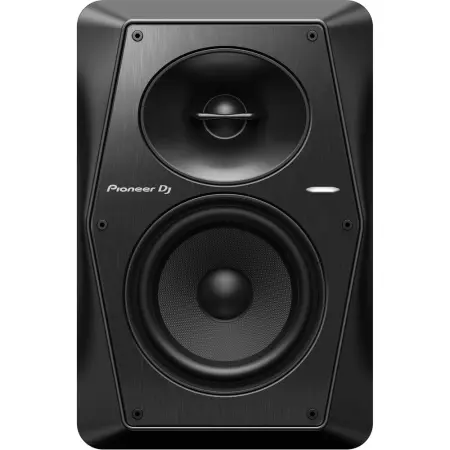

Pioneer DJ VM-50 2-Way Active Studio Monitor (Single, Black)
Key Features
2-Way Speaker Design
Bi-Amped Class D Amplifier
5.25" Woofer
1" Soft-Dome Tweeter
Independent low and high DSP controls for a tailored listening experience
Enjoy audio from your compatible source with the black Pioneer DJ VM-50 2-Way Active Studio Monitor. It features an RCA and a combination XLR/TRS input and has a 2-way class-D amplifier with 30W powering the 5.25" woofer and another 30W driving the 1" soft-dome tweeter. The speaker has a 40 Hz to 36 kHz frequency response for enhanced treble and features an MDF and vinyl laminate enclosure with a rear-facing bass port.
Studio Monitor
Monitor Type Active 2-Way
Enclosure Bass-Reflex
Power Rating 60 W
Impedance 4 Ohms
Drivers LF Driver: 1 x 5.25" / 13.34 cm Cone
HF Driver: 1 x 1" / 2.5 cm Soft Dome Tweeter
Amplification 1 x LF Amplifier: Class-D Rated at 30 W
1 x HF Amplifier: Class-D Rated at 30 W
Performance
Frequency Response 40 Hz to 36 kHz
Phase Adjustment None
Connectivity
Audio I/O 1 x Combo XLR-1/4" Balanced Female Analog Input (10 Kilohms)
1 x RCA Unbalanced Female Analog Input (10 Kilohms)
Power
AC Input Power 110 to 240 VAC, 50/60 Hz
Power Consumption 30 W (Typical)
0.3 W (Standby)
General
Enclosure Material MDF
Dimensions (W x H x D) 7.8 x 11.8 x 10.4" / 19.8 x 30 x 26.4 cm
Weight 12.1 lb / 5.5 kg
Packaging Info
Package Weight 15.745 lb
Box Dimensions (LxWxH) 16.5 x 13.5 x 11.3"
