Proel FLASH 8A (powered)
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

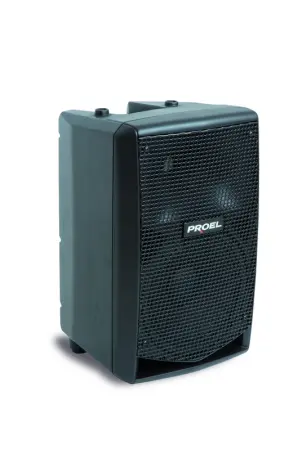

Proel Flash 8A (Proel FLASH8A)
460 Watts Program Power - 920 Watt IP Power
Bi-Amplified 8in CELESTION 2-Way Speaker
Italian Engineered - High Quality
2-way processed active enclosure
In spite of its diminutive size and weight, the smallest model of our FLASH
Series can deliver surprising sound pressure levels and precise, powerful sound.
FLASH8 can be employed for very compact ultra-portable reinforcement systems and
for live monitoring under conditions in which a low visual profile is an
important feature. Because of its refined and clever design, it is the perfect
solution for multimedia applications and for high-quality fixed installations.
| System type | 2-way processed active enclosure |
|---|---|
| Amplifier Continuous Power | 180 W+50 W bi-amp |
| Input Impedance | LINE: 20 kohm balanced, 10 kohm unbalanced MIC: 2 kohm balanced, 1 kohm unbalanced |
| Frequency response | 60 Hz - 20 kHz |
| Input Sensitivity | LINE: 0 dBu / 0.775 V MIC: max -35 dBu |
| Maximum (peak) Output | 122 dB @ 1m (122 dB @ 1m) |
| Low Frequency Device | 8'' woofer |
| High Frequency Device | 1'' compression driver Titanium diaphragm |
| Crossover Frequency | 3000 Hz |
| Low frequency equalizer | 100 Hz +6 dB, -6 dB shelving |
| High Frequency Equalizer | 8 kHz +6 dB, -6 dB shelving |
| Angolar coverage | 90° H x 60° V |
| Monitor Taper | 42° |
| Power Supply | 230 VAC 50Hz or 117 VAC 60 Hz |
| Maximum Power Consumption | 200 VA |
| Cooling | Natural convection (safety protection 65°) |
| Connectors | IN: combo, XLR F Mix out: XLR M |
| Construction | injection reinforced hi-density polypropylene |
| Cabinet Colour | black |
| Mounting Pole | 1 x bottom |
| Flying System | 4 x M8 - top, bottom |
| Weight | 10 kg (10 kg) |
| Dimensions (W x H x D) | 27 x 42 x 26 cm |
| Controls | mic level, line level, low eq., hi eq., gnd lift |
