Proel NEOS15A
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

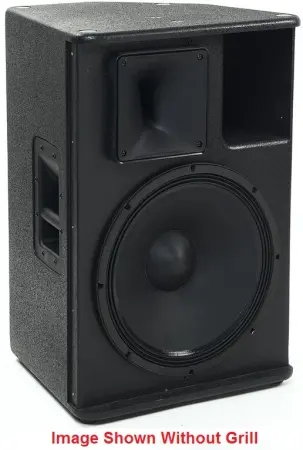

Proel NEOS15A (Proel NEOS-15 A)
15in 1,000 Watt Program Power - 2,000 Watt IP Power
Bi-Amplified - NEODYMIUM woofer
Italian Made & Engineered - High Quality
2-way digitally processed active enclosure
The NEOS Series models mounting 10", 12" and 15" woofers share many important
features to offer a choice regarding dimensions and bass frequency reproduction.
The available version is passive, but can be converted to bi-amp, or even
bi-amplified active, with the addition of a digital processor and a
high-efficiency class D amplifier with a switching power supply. Small
dimensions and light weight have been privileged in their design to make them
user-friendly, and this concept goes even further with the inclusion of M10
coupling points and the double-tilt (0° or 7.5°) stand flange. Whenever high
fidelity and dynamics are needed for a monitoring solution, these enclosures can
also be used as monitors thanks to their asymmetric profile.
| System type | 2-way digitally processed active enclosure |
|---|---|
| Amplifier Continuous Power | 400 W + 100 W bi-amp |
| Input Impedance | LINE: 20 kohm balanced, 10 kohm unbalanced |
| Frequency response | 50 Hz - 20 kHz |
| Input Sensitivity | LINE: +4 dBu / 1.25 V |
| Maximum (peak) Output | 128 dB @ 1m (128 dB @ 1m) |
| Low Frequency Device | 15'' neodymium woofer - 2.5" VC |
| High Frequency Device | 1'' compression driver - titanium diaphragm |
| Crossover Frequency | 2000 Hz |
| Signal Processing | 24 bit / 48 kHz |
| Angolar coverage | 100°>80° H x 60° V with asymmetrical rotatable horn |
| Trapezoidal taper | 10° |
| Monitor Taper | 42° |
| Power Supply | 230 VAC 50Hz o 117 VAC 60 Hz |
| Maximum Power Consumption | 1000 VA |
| Cooling | Natural convection |
| Connectors | IN - LINK: XLR M - XLR F MAIN: PowerCon® (NAC3MPA) MAIN LINK: PowerCon® (NAC3MPB) |
| Construction | 15 and 18 mm birch plywood |
| Finishing | Protector-Coat paint finish |
| Cabinet Colour | Black |
| Mounting Pole | 1 x bottom double angle flange, 0° or 7.5° |
| Flying System | 4 x M10 - top, bottom, rear |
| Weight | 23 kg (23 kg) |
| Dimensions (W x H x D) | 46.5 x 68 x 43 cm |
| Controls | amp level (-18 dBu), gnd lift |
