Proel NET15A
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

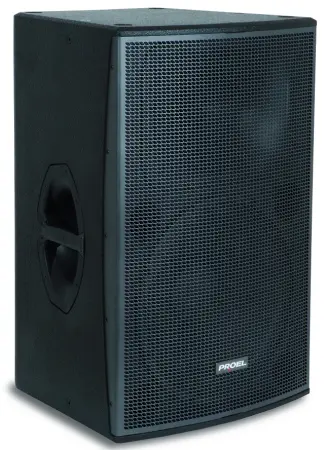

Proel NET 15A (Proel NET-15A)
Powered 15" 2-Way Bi-Amplified 600W Continuous (1200W Peak) Speaker
High Quality - Italian Engineered
2-way Bi-amplified active enclosure
NET15A is the perfect solution for those who need a compact, full-range system
that can reproduce the entire audio spectrum with high efficiency. Its powerful
CELESTION woofer with a 3" voice coil, in combination with a new class D, 500 W
amplifier, delivers high SPL with deep and well defined bass. The LIVE/MUSIC
switch, present on all the active models in the series, permits the selection
between two different equalization curves adapted to recorded music reproduction
or live sound reinforcement.
Order code: NET15A
| System type | 2-way Bi-amplified active enclosure |
| Amplifier Continuous Power | 500 W + 100 W bi-amp (1000W + 200W Peak) |
| Input Impedance | LINE: 20 kohm balanced, 10 kohm unbalanced |
| Frequency response | 50 Hz - 20 kHz |
| Input Sensitivity | LINE: 0 dBu / 0.775 V |
| Maximum (peak) Output | 128 dB @ 1m |
| Low Frequency Device | 15'' woofer - 3'' VC |
| High Frequency Device | 1'' compression driver - 1.7'' VC |
| Crossover Frequency | 2000 Hz |
| Angolar coverage | 90° H x 60° V Costant Coverage horn |
| Trapezoidal taper | 8° |
| Power Supply | 230 VAC 50Hz o 117 VAC 60 Hz |
| Power consumption | 150 VA |
| Maximum Power Consumption | 700 VA |
| Cooling | Natural convection |
| Connectors | IN - LINK: XLR Combo - XLR M |
| Construction | 15 mm birch plywood |
| Cabinet Colour | Black |
| Mounting Pole | 1 x bottom double angle flange, 0° or 7.5° |
| Flying System | 5 x M10 - top, bottom, rear |
| Weight | 27.5 kg (60.6375 lb) |
| Dimensions (W x H x D) | 47 x 72 x 43 cm |
| Controls | Level, gnd lift, LIVE / MUSIC dual optimized presets |
