Moving Head Strobe Fixture
The

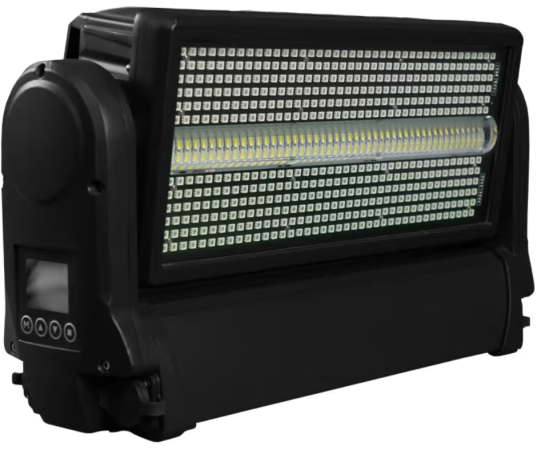

Rasha Blok IP65 is a rugged, IP65-rated moving head strobe built to withstand the elements while delivering breathtaking output and pixel-driven visuals. Designed for demanding outdoor and touring environments, it combines 144 cool-white strobe LEDs with 480 RGB background LEDs to produce up to 150,000 lumens of intense, even coverage—perfect for large-scale stages, open-air events, and immersive installations.
Rasha Blok IP65 Competitive Differences
- Outdoor-rated moving head strobe with 150,000-lumen output
- 8-zone RGB + 4-zone white pixel mapping for detailed visual control
Rasha Blok IP65 Description
The

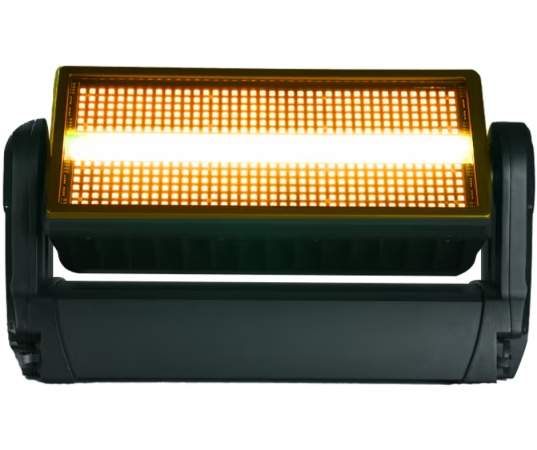

Blok IP65 redefines what’s possible from a moving head strobe. With 144 ultra-bright white strobe LEDs and 480 RGB LEDs across multiple pixel-mapped zones, it offers lighting designers precision control for custom patterns, chases, and visual effects. Whether you’re using its 150,000-lumen blast to drive energy into a crowd or layering in ambient color effects with its RGB panel, this fixture delivers dynamic results every time.
Its pan/tilt motor enables both sweeping movements and targeted strobe hits, while 57 built-in chase and strobe presets (across both RGB and strobe engines) give you instant access to impactful, ready-to-go looks. Pixel-mappable segments—4 zones for white strobe and 8 zones for RGB—enable deep integration with advanced media servers or pixel controllers.

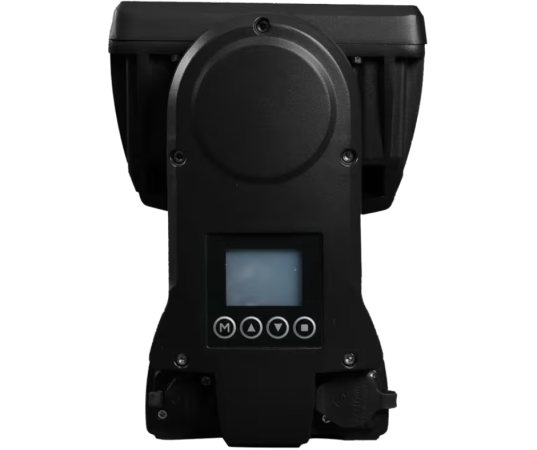

Constructed from die-cast aluminum with an IP65 rating, the Blok is fully protected against rain, dust, and extreme temperatures (-22°F to 122°F). A flat base with multiple omega bracket points supports versatile rigging options, and the 1.8” LCD menu with 4-button interface makes setup fast and intuitive. With multiple DMX profiles (7ch to 43ch) and full RDM compatibility, it integrates smoothly into any modern lighting system.
If you need a high-output, road-ready strobe that thrives in unpredictable environments, Blok IP65 is the tool to get the job done—no matter the weather.
Model Features
- 150,000-lumen hybrid strobe with RGB + CW LED sources
- 144 cool-white LEDs + 480 RGB LEDs (50,000-hour lifespan)
- IP65-rated for reliable outdoor use in rain, dust, and extreme temps
- Pixel-mapped zones: 4 white LED segments + 8 RGB LED zones
- Pan/tilt movement with 16-bit resolution for directional hits or sweeps
- 6 white strobe macros and 51 RGB chase macros
- Mechanical + electronic strobe (0–25 Hz) with variable speeds
- DMX profiles: 7ch, 14ch, 15ch, 42ch, 43ch
- RDM compliant for remote addressing and monitoring
- Active cooling system with sealed IP65 Seetronic connectors
Model Specifications
- Light Sources: 144x 5W CW LEDs + 480x 0.5W RGB LEDs
- Lumens (Source): 150,000 lm
- Illuminance (Strobe): 60,000 lux @ 1m
- Illuminance (RGB Panel): 7,600 lux @ 1m
- Illuminance (Combined): 2,070 lux @ 5m
- Color Temp: 10,100K (beam), 8,500K (white tube)
- Pan/Tilt: Pan not specified, Tilt: 185°
- Control: DMX (7/14/15/42/43ch), RDM, Auto, Manual
- Dimensions: 18.9 x 9 x 9.5 in (482 x 178 x 243 mm)
- Weight: 27.56 lb (12.5 kg)
- Power: 866W max @ 120V
- IP Rating: IP65
What's In The Box
- Blok IP65 fixture
- (2) Omega brackets
- Seetronic Edison to IP65 True1 power cable
- IP65 5-pin DMX cable
- User manual
RASHA Blok IP65
(Rasha RP-BLOK-IP65-BLK)
