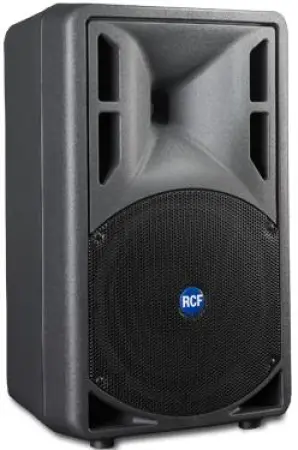

RCF Art 325-A

RCF ART 325A (RCF ART325A)

The RCF ART 325-A is the reference speaker in the new ART series. Ideal in live sound and installed situations, it is remarkable for deep bass punch, clean midrange output and accurate high frequencies. Offering the ultimate intelligibility in vocal and Recorded Music, from live sound to playback, from monitoring to fixed installation applications.

- 400 watt Monolithic bi-amplification, 350 watt low frequency and 50 watt high frequency power
- 129 dB max SPL
- Wide dispersion, 90 x 60 low distortion, constant directivity horn
- 15" high power woofer, 75mm inside/outside aluminium coil
- 2" neodymium, titanium dome RCF Precision Series high frequency driver
- Electronic equalization, phase alignment, limiter and protection
- Mic/Line XLR and Jack input, XLR signal output
- 2 side handles and 1 ergonomic top handle for easy transportation and positioning
- Four M10 fly points and built in pole mount adaptor
- Optional Infrared remote control for volume, mute and Eq adjustment

RCF ART 325-A is an active, wide dispersion 2 way sound reinforcement speaker. It integrates a high power 400 Watt amplifier, a complete electronic processor section and RCF Precision Series low distortion, high power transducer. The result is a compact, high power accurate system, unique in its class for linearity and low distortion.

This new high power 15" inch woofer is the result of the latest refinement in years of RCF experience in compact 2 way speaker manufacturing, providing a fast and accurate reproduction of the midbass frequency range and tight punchy bass. Features a 3" inside/outside voice coil to minimize power compression and extend the life of this product.

The compression driver uses a 0.05 mm pure titanium dome featuring a complex geometry suspension and Direct Drive coil. This innovative design is powered from a massive high flux neodymium magnet and an edge wound 64 mm aluminium voice coil. This unique driver offers a transparent midrange sound and an extreme fidelity in high frequency reproduction.

A generous 2 step class H TAED design is used to power the low frequencies and the compression driver amplifier is a warm and clear class AB design.

The Input section offers an XLR and Jack input connector that is switchable from microphone to line levels. A master volume control and a useful XLR loop-through link guarantee the best versatility. The processor section includes active crossover, system equalization, transducer phase alignment, limiter and protection functions. The system is visually monitored from 4 status LEDs.

All components are housed in a strong, lightweight, polypropylene composite enclosure. Woofer and compression driver throat are protected from a strong, powder coated, metal grille. The cabinet features four M10 threaded fly points, a 35 mm pole mount adaptor, two side handles and an ergonomic top handle.
