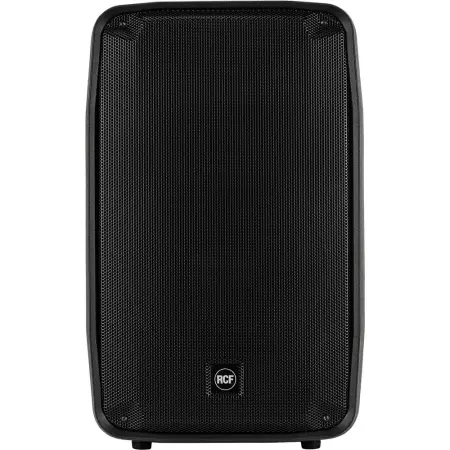

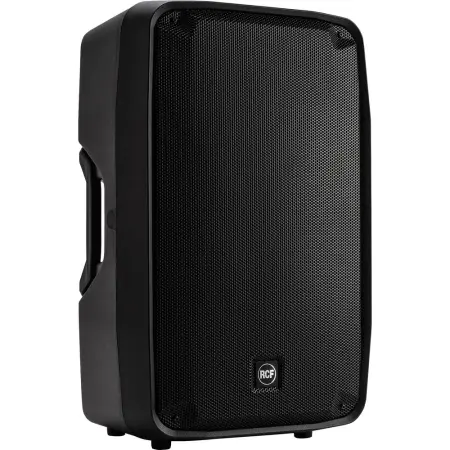

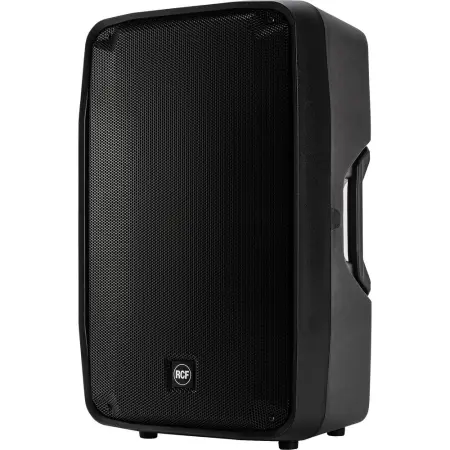

Part of the D-Line Series speakers, the RCF HD 35-A is a portable active speaker which delivers a wide frequency range with exceptional vocal clarity, controlled deep bass, and stable SPL, even at high levels. With a design derived from the touring industry, it is well suited to withstand the rigors of live sound reinforcement or rentals applications, in clubs, corporate spaces, houses of worship, mobile DJ setups, and more.
The HD 35-A is equipped with a 1400W peak, Class-D digital amplifier, which drives 1000W into the 15" woofer and 400W into the 1.4", titanium compression driver. The crossover is set at 800 Hz. The speaker delivers a frequency response of 45 Hz to 20 kHz with a peak SPL output of 132 dB, and wide, 90°H x 60°V coverage angles. The integrated DSP manages the loudspeaker processing, including crossover and EQ, soft limiter, and dynamic bass boost. Phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.
Easy to operate, the HD 35-A comes with XLR and 1/4" balanced/unbalanced inputs for connecting a microphone, mixer, or audio device along with powerCon connectors for power input and power daisy chaining to another speaker, along with a volume knob to set the level. Furthermore, the switchable Flat/Boost mode enables you to emphasize the bass response when playing at low volume, or keep it flat for all other applications.
The cabinet is molded with rugged polypropylene composite material (PP), and designed to dampen vibrations, even at maximum volume settings. The speaker weighs 54 lbs and features top and side handles with rubber handgrips for easier transport. The HD 35-A can be mounted on a stand or a subwoofer pole, or positioned on its side to serve as a wedge monitor.
Features:
D-Line Series portable active speaker for live sound reinforcement, stage monitoring, front-fill/side-fill, rental applications, meetings, and events
Designed to deliver outstanding vocal clarity and projection
Elegant and compact cabinet with rugged construction provides a reliable performance on the road
Use in clubs, music venues, corporate spaces, or for mobile DJ setups

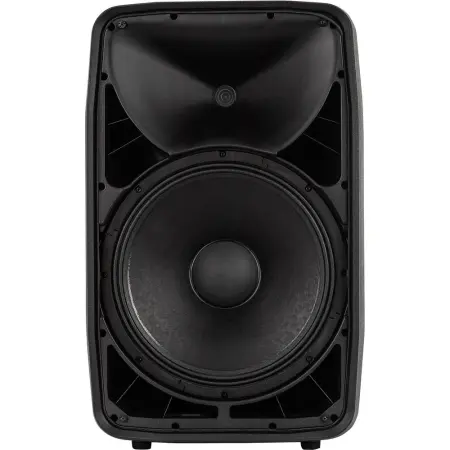

15" woofer: delivers an extremely linear response and deep, precisely controlled low end
1.4" titanium compression driver: offers open and natural midrange frequencies, precise high-frequency reproduction, and sound projection. It also features a 3" voice coil, and a neodymium magnet
90°H x 60°V, wide-dispersion horn with constant directivity
Class-D amplifier: 1400W, 2-way peak power

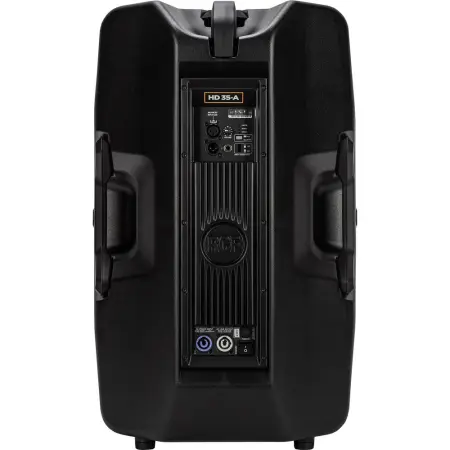

XLR & 1/4" inputs and an XLR thru port for daisy chaining, along with PowerCon input and output power connections
Simple to operate plug'n'go design with one volume knob
132 dB maximum SPL power remains stable at high levels
45 Hz to 20 kHz frequency response
Bass Reflex: port sized to optimize efficiency
Integrated DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost
FiRPHASE proprietary and advanced FIR filtering technology delivers transparent sound, and balanced stereo image
Solid mechanical aluminum structure stabilizes the amplifier during transportation, and facilitates fan-less heat dissipation
Cabinet is molded with polypropylene composite material (PP) and designed to dampen vibrations, even at maximum volume settings
Internal reinforcement prevents any deformation of the cabinet

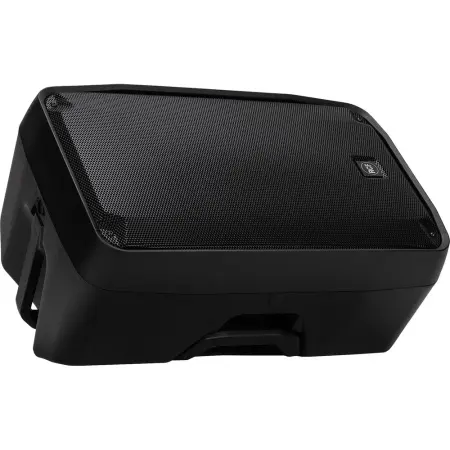

Rear profile design of the cabinet allows speaker to be used as a monitor wedge

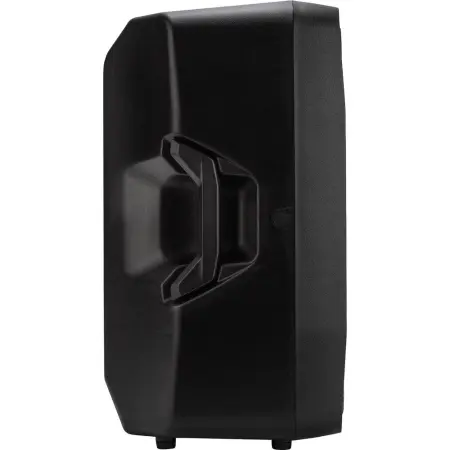

Ergonomically designed top and side handles with rubber handgrips: allow to firmly hold the cabinet, and move it easily
Lightweight (at 48.5 lb) design for portability

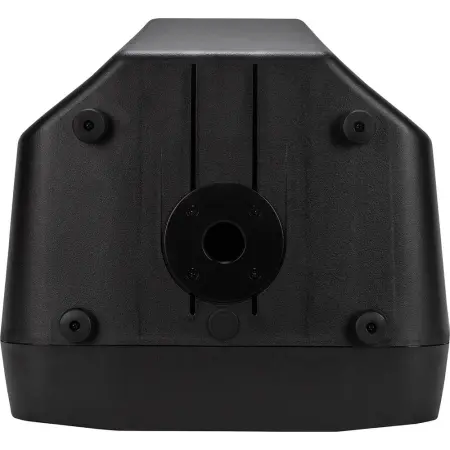

Steel pole socket for mounting on a stand or on a subwoofer pole
Two M10 and three M6 fittings for flown applications
Specifications:
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 1400 W Peak
700 W RMS
Amplifier Power Rating HF:
400 W Peak
200 W RMS
LF:
1000 W Peak
500 W RMS
Amplifier Class Class-D
Drivers
HF Driver 1 x 1.4" / 35.6 mm Titanium Compression Driver
HF Voice Coil 3" / 7.6 cm
LF Driver 1 x 15" / 381 mm Woofer
LF Voice Coil 3" / 7.6 cm
Magnet HF:
Neodymium
Performance
Frequency Response 45 Hz to 20 kHz -3 dB
Maximum SPL 132 dB (Peak)
Coverage Angle 90° H x 60° V
Input Sensitivity Line Input:
+4 dBu to -2 dBu
Mic Input:
-32 dBu
Protections Output Limiter, RMS, Thermal
Connectivity
Audio I/O 1 x XLR 3-Pin Female Balanced Mic/Line Input
1 x 1/4" TRS Female Balanced/Unbalanced Line Input
1 x XLR 3-Pin Male Balanced Line Thru
Signal Processing
Crossover 800 Hz
Dynamic Processing Soft Limiter
Power
AC Input Power Factory Selectable:
115 VAC, 60 Hz (T 6.3 A L 250 V)
250 VAC, 50 Hz (T 3.15 A L 250 V)
AC Power Connector 1 x powerCON Input
Physical
Mounting 2 x M10
3 x M6
Pole Socket
Handles 1 x Top
2 x Side
Cooling Convection
Construction Material Metal Grille, Polypropylene
Dimensions 25.3 x 28.1 x 15.6" / 642 x 714 x 397 mm
Weight 48.5 lb / 22 kg
