Compact Outdoor-Rated 100V Coaxial Loudspeaker for Install Applications
The

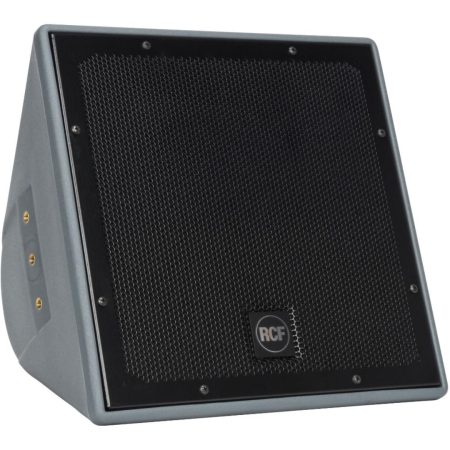

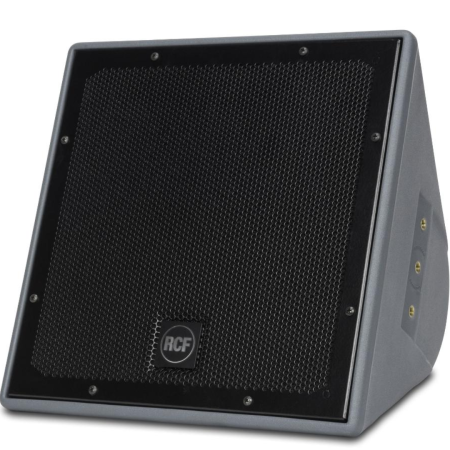

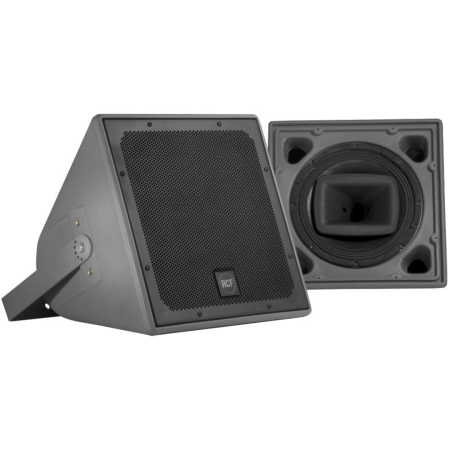

RCF P2110-T is a weatherproof coaxial two-way loudspeaker optimized for professional indoor and outdoor installations where clarity, durability, and directional control are critical. With a built-in 100V line transformer and powerful 124 dB max SPL output, this speaker is ideal for distributed sound systems in stadiums, arenas, and large-scale commercial spaces.
RCF P2110-T Competitive Differences
- Built-in 100V line transformer with 15W / 30W / 60W selectable taps
- 124 dB max SPL and 200W RMS power handling for high-output performance
- 10" coaxial woofer with 2.5" voice coil and 1" compression driver with 1.5" voice coil
- 90° x 40° constant directivity horn for focused and consistent sound coverage
- Weatherproof IP55-rated cabinet with UV protection for all-weather use
- Rotatable CMD horn and logo for flexible vertical or horizontal mounting
- AMCDP – Active Mosfet Compression Driver Protection for long-term reliability
- LICC crossover for improved transient response and reduced phase shift
- Rugged aluminum grille with water-repellent backing and 316L stainless steel bracket
RCF P2110-T Description
The

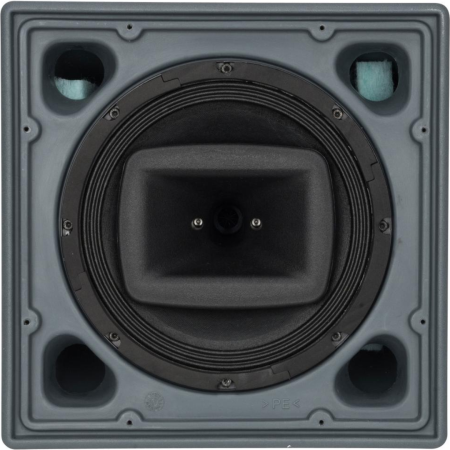

RCF P2110-T delivers powerful, intelligible sound in compact form for high-performance indoor and outdoor installations. Designed with a coaxial layout, it integrates a 10" woofer and 1" RCF Precision compression driver into a single point source for phase-coherent output and precise coverage. The CMD (Coverage Matching Design) horn ensures consistent 90° horizontal and 40° vertical dispersion.
Engineered for reliability in harsh environments, its single-piece, UV-resistant rotomolded cabinet meets IP55 standards and comes with a corrosion-resistant 316L stainless steel U-bracket and M10 brass inserts for secure installation. The built-in 100V transformer includes selectable power taps for distributed audio systems, making it suitable for a wide range of commercial and public address applications.
AMCDP (Active Mosfet Compression Driver Protection) safeguards the driver under heavy loads, while LICC (Low Impedance Compensated Crossover) technology enhances audio accuracy with minimal distortion. Whether installed individually or in arrays, the P2110-T delivers exceptional clarity, output, and reliability in any setting.
P2110-T Features
- 200W RMS / 800W peak power handling
- 124 dB maximum SPL
- 95 Hz – 20,000 Hz frequency response
- 10" coaxial woofer with 2.5" voice coil
- 1" compression driver with 1.5" voice coil
- 90° x 40° constant directivity CMD horn
- Built-in 100V transformer with 15W / 30W / 60W taps
- AMCDP – Active Mosfet Compression Driver Protection
- LICC – Low Impedance Compensated Crossover
- IP55-rated weatherproof cabinet with UV protection

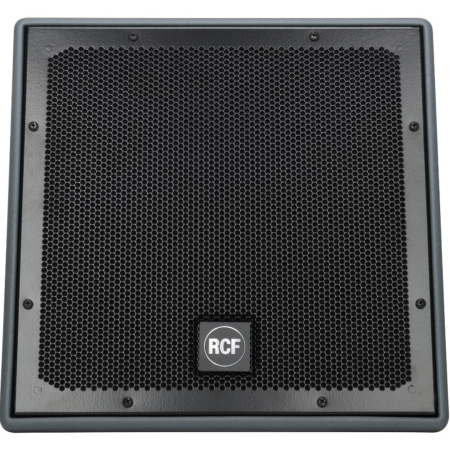

- Powder-coated aluminum grille with water-repellent cloth backing
- Rotatable horn and logo for horizontal or vertical installation

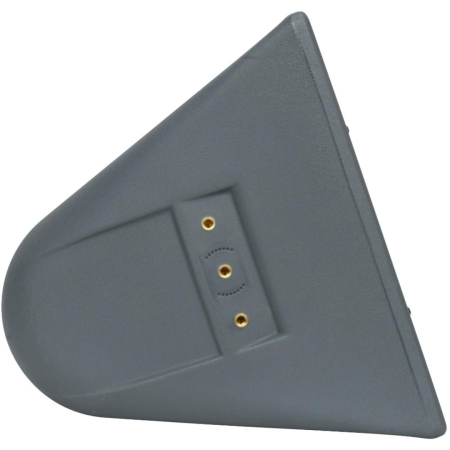

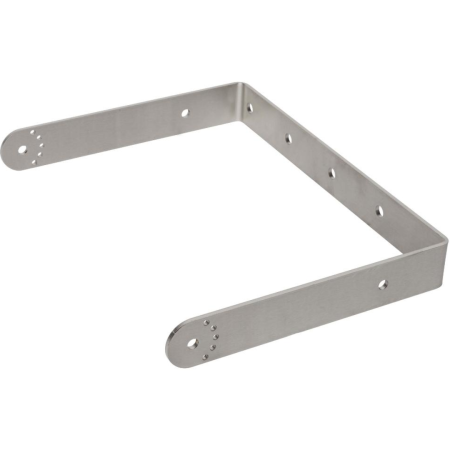

- 316L stainless steel U-bracket and 12x M10 suspension points
P2110-T Specifications
- Frequency Response (-10 dB): 95 Hz – 20,000 Hz
- Max SPL: 124 dB
- Horizontal Coverage: 90°
- Vertical Coverage: 40°
- Directivity Index Q: 11
- Sensitivity: 95 dB
- Nominal Impedance: 16 ohms
- Crossover Frequency: 2000 Hz
- Compression Driver: 1" with 1.5" voice coil
- Woofer: 10" coaxial with 2.5" voice coil

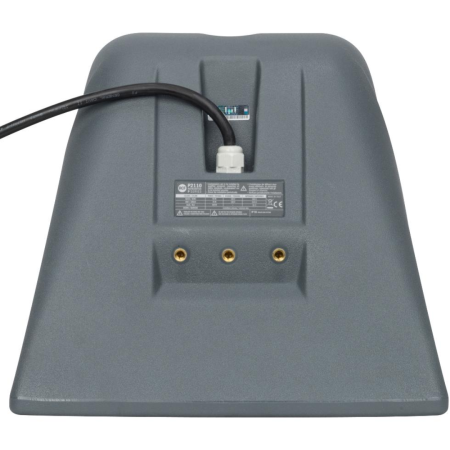

- Input Connector: Neoprene cable
- Built-in Transformer: 100V line
- Power Taps: 15W (667 ohm), 30W (333 ohm), 60W (167 ohm)
- Cabinet Material: PE Low Density (rotomolded)
- Grille: Aluminum with waterproof cloth backing
- IP Rating: IP55 (weatherproof)
- Safety Certification: CE Compliant
- Color: Grey
- Product Dimensions (H x W x D): 13.78" x 13.78" x 12.6" (350 mm x 350 mm x 320 mm)
- Product Weight: 29.54 lbs (13.4 kg)
- Shipping Dimensions (H x W x D): 15.75" x 14.57" x 14.57" (400 mm x 370 mm x 370 mm)
- Shipping Weight: 35.94 lbs (16.3 kg)
