This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

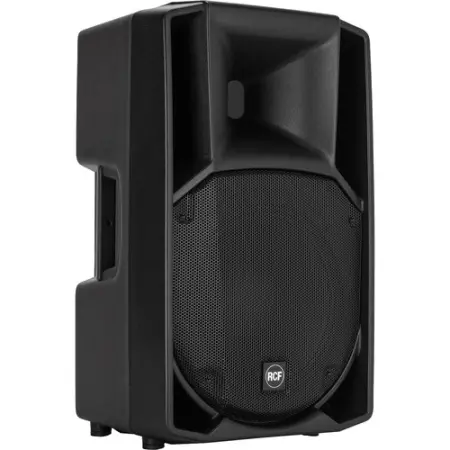

ART 732-A MK4
ACTIVE TWO-WAY SPEAKER
The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 12” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
FEATURES
131 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
12" Woofer
700 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:131 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.4", 3.0" v.c.
Woofer:12", 2.5" v.c.
INPUT/OUTPUT SECTION
Input signal:Bal/unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:700 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, EQ shape
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
CABINET
Cabinet Material:Composite PP
Hardware:2xM10 flying p.
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:637 / 25.07 mm/inch
Width:384 / 15.11 mm/inch
Depth:363 / 14.29 mm/inch
Net Weight:17.8 / 39.24 kg/lbs
