High-Powered Portable PA Speaker for Live Sound

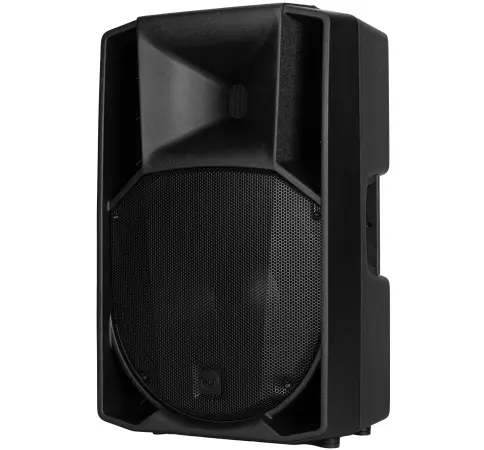

RCF ART 745A MK5 is a premium active 2-way loudspeaker designed for professional sound reinforcement. Delivering up to 133 dB SPL with crystal-clear highs and deep, punchy lows, this speaker combines a 15" neodymium woofer and a 4" titanium compression driver for unmatched audio fidelity. With advanced DSP, FiRPHASE processing, and the powerful XBoost low-frequency enhancer, the ART 745A MK5 excels on stage or in any demanding audio application.
RCF ART 745A MK5 Competitive Differences
- 133 dB maximum SPL with minimal distortion
- 1400W peak Class-D amplifier with convection cooling
- 4" titanium dome neodymium compression driver for superior vocal clarity
- 15" neodymium woofer with 3.5" voice coil for tight bass
- FiRPHASE technology for linear phase response
- XBoost mode enhances low frequencies without distortion
- Multi-function cabinet usable as stage monitor or pole-mounted speaker
- Lightweight and rugged polypropylene composite enclosure
RCF ART 745A MK5 Description
The RCF ART 745A MK5 is engineered as the flagship speaker of the ART series, built to deliver impeccable sound in large and demanding environments. Its powerful 1400W Class-D amplifier ensures consistent performance with ultra-fast transient response and reliable operation thanks to convection cooling and fan-less heat dissipation. The 4" compression driver, housed in a 90° x 60° constant directivity horn, allows for a lower crossover point at 650 Hz, improving impulse response and vocal presence.
The 15" neodymium woofer provides deep, accurate bass reproduction with exceptional linearity and control. XBoost technology, activated via the rear panel, elevates low-end response without muddying the mix. Together with FiRPHASE filtering, the speaker achieves pristine audio imaging across all listening positions.
Built for versatility, the cabinet supports pole mounting, floor monitor use, and wall-hung installations. Durable yet lightweight, it features ergonomic handles and a steel grille for added protection on the road.
ART 745A MK5 Features
- Innovative DSP processing with soft limiting and speaker protections
- 90° x 60° constant directivity horn for wide sound coverage
- High-efficiency neodymium drivers
- Advanced FiRPHASE filters for phase coherence and low latency
- XBoost low-frequency enhancer with user control
- Top and side handles for easy transport
- Dual M10 mounting points and standard 35mm pole mount
- Fan-less cooling system with solid aluminum amplifier structure
ART 745A MK5 Specifications
- Frequency response: 45 Hz – 20,000 Hz
- Max SPL: 133 dB @ 1m
- Coverage: 90° horizontal x 60° vertical
- Compression driver: 1 x 1.4" (4" voice coil) neodymium with titanium diaphragm
- Woofer: 1 x 15" neodymium with 3.5" voice coil
- Input connectors: XLR, 1/4" Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Mic input sensitivity: -32 dBu
- Crossover frequency: 650 Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Volume, Boost, MIC/Line selector
- Peak power: 1400 W (400 W HF + 1000 W LF)
- Cooling: Convection
- Enclosure material: Polypropylene composite
- Handles: 1 top, 1 on each side
- Mounting: 35mm pole insert, 2 x M10 fly points
- Grille: Steel
- Color: Black
- Dimensions (H x W x D): 27.87" x 17.2" x 15.31" (708 x 437 x 389 mm)
- Weight: 41.45 lbs (18.8 kg)
- Shipping dimensions: 29.53" x 19.69" x 17.32" (750 x 500 x 440 mm)
- Shipping weight: 48.5 lbs (22 kg)
RCF ART-745A-MK5
(RCF 13000858)
