The RF Venue 2 CHANNEL KIT 530T608 is a complete remote antenna solution for smaller wireless microphone systems operating from 530-608 MHz. It allows receive antennas to be moved to the front of an equipment rack or positioned remotely, helping improve antenna placement when receivers are installed inside racks, equipment closets, A/V carts, or other enclosed locations.
The RF Venue 2 CHANNEL KIT 530T608 provides the components needed to remotely position a pair of receive antennas for a two-channel wireless microphone installation. Its two 1/2-wave antennas are designed specifically for operation across the 530-608 MHz frequency range.
The antennas can be mounted on the front panel of an equipment rack using the included BNC pass-through connectors or positioned remotely with the supplied mounting brackets. This flexibility makes it easier to place the antennas away from metal racks, equipment closets, and other obstructions that can interfere with effective RF reception.

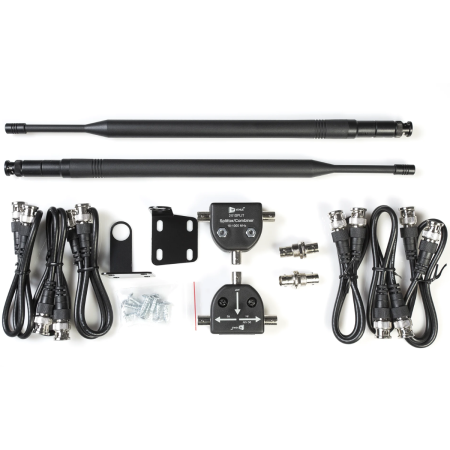

Two included 2-way splitters distribute the antenna signals to two compatible wireless microphone receivers. Six 2 ft. BNC coaxial cables are included for connecting the antennas, splitters, and receivers, creating a convenient single-kit solution for smaller dual-receiver installations.
The system is particularly useful for classrooms, corporate meeting rooms, presentation systems, A/V media carts, and compact installed sound systems where receiver placement does not provide an ideal location for the antennas.
