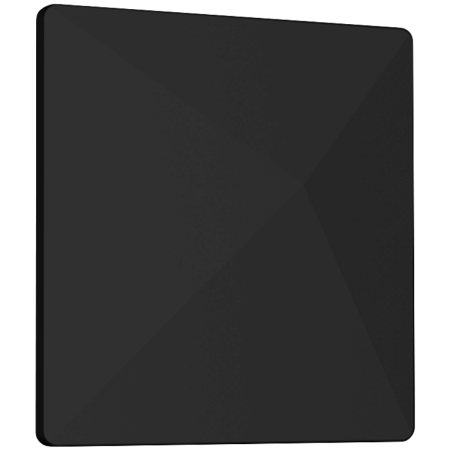

RF Venue CP-ARCB

Architectural IEM Antenna

The RF Venue CP-ARCB is a circularly polarized architectural antenna designed for permanently installed in-ear monitor systems. Its wide 470–928 MHz operating range, 120° beam width, and slim black wall- or ceiling-mounted enclosure provide reliable IEM transmit coverage while maintaining a discreet appearance in houses of worship, auditoriums, conference rooms, schools, and other installed venues.

RF Venue CP-ARCB Competitive Differences

• Right-hand circular polarization helps maintain consistent signal coverage as performers move and IEM bodypack orientation changes.
• 470–928 MHz operating range provides broad compatibility with UHF IEM systems.
• 120° beam width provides broad directional coverage for installed performance spaces.
• Slim architectural enclosure can be mounted on a wall or ceiling and painted to coordinate with the surrounding interior.
• Black finish provides a discreet option for dark ceilings, walls, stages, and architectural spaces.

RF Venue CP-ARCB Description

The RF Venue CP-ARCB combines circularly polarized antenna technology with a low-profile enclosure designed specifically for fixed in-ear monitor installations. Unlike fixed-polarization paddle antennas, its circular polarization distributes the transmitted RF field through multiple polarization angles, helping reduce signal problems caused by moving performers and changing bodypack orientation.

The antenna operates from 470 to 928 MHz with a 120° beam width, right-hand circular polarization, 50-ohm impedance, and 3 dBi gain at 500 MHz. RF Venue specifies a hypercardioid pattern, providing focused coverage for stages and other areas where IEM receivers are in use.

Installation is designed for permanent architectural applications. The antenna can be mounted on either a wall or ceiling, and its compact 11 x 11 x 2 in enclosure keeps the system visually unobtrusive. The black housing can also be painted when needed to better match the surrounding room finish.

The CP-ARCB is well suited for houses of worship, auditoriums, schools, conference rooms, performance venues, and multi-zone facilities that require dependable wireless IEM transmission without the appearance of a conventional exposed antenna.

CP-ARCB Features

• Circularly polarized antenna for installed in-ear monitor systems
• Right-hand circular polarization (RHCP)
• 470–928 MHz operating frequency range
• 120° beam width
• Hypercardioid radiation pattern
• 3 dBi gain at 500 MHz
• 50-ohm impedance
• BNC female RF connector
• Wall or ceiling mounting
• Slim architectural enclosure
• Black finish
• Paintable enclosure for integration with interior finishes
• Designed for installed IEM applications

CP-ARCB Specifications

• Operating Frequency: 470–928 MHz
• Bandwidth: 458 MHz
• Average Return Loss: 10 dB
• Impedance: 50 ohms
• Pattern Type: Hypercardioid
• Polarization: RHCP
• Beam Width: 120°
• Gain at 500 MHz: 3 dBi
• Connector: BNC-F
• Mount Location: Wall or ceiling
• Operating Temperature: 14–104°F (-10–40°C)
• Color: Black
• Dimensions: 11 x 11 x 2 in (280 x 280 x 50 mm)
• Weight: 2 lb (0.9 kg)

What's In The Box

• RF Venue CP-ARCB Architectural Antenna
• Ceiling mounting hardware
• Wall mounting hardware
