RF Venue DFINW

Wireless Microphone Diversity Antenna

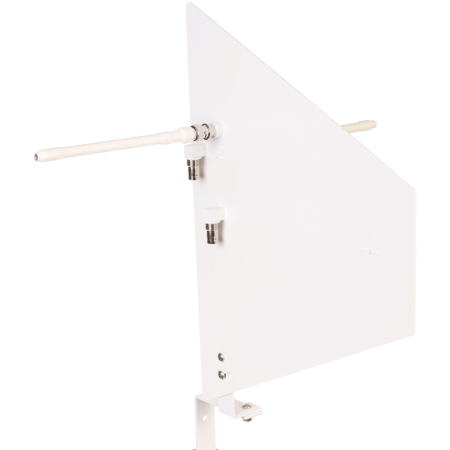

The RF Venue DFINW is a white wall-mount diversity antenna for wireless microphone systems operating from 470-698 MHz. Its patented cross-polarized design combines directional LPDA and bi-directional dipole elements in one enclosure, providing both vertical and horizontal polarization reception to improve RF signal consistency in challenging and reflective environments.

RF Venue DFINW Competitive Differences

• Combines two diversity antenna elements into a single wall-mounted enclosure
• Patented cross-polarized design captures both vertically and horizontally polarized RF signals
• LPDA and dipole elements help reduce multipath fading and improve wireless signal reliability
• Wide 470-698 MHz operating range supports many UHF wireless microphone systems
• White installation version features a matte white finish with no visible logo or markings
• Includes a white L-bracket and mounting hardware for permanent wall installation

RF Venue DFINW Description

The RF Venue DFINW Diversity Fin uses two different antenna elements positioned at right angles to one another. The directional log-periodic dipole array captures one polarization while the bi-directional dipole captures the other, allowing a diversity wireless system to receive RF energy across both horizontal and vertical polarization planes.

This configuration performs the function normally handled by two separate diversity antennas while requiring only one physical mounting location. The design is especially useful in indoor and reflective spaces where multipath interference and changing transmitter orientation can contribute to inconsistent wireless reception.

The DFINW is built for fixed installations and features a matte white finish intended to blend more easily into classrooms, houses of worship, theaters, corporate spaces, broadcast facilities, and other finished interiors. The wall-mount version is supplied with an L-bracket and installation hardware, and the antenna itself uses two BNC female outputs for connection to both branches of a diversity receiver or antenna distribution system.

Operating across 470-698 MHz, the DFINW is compatible with diversity wireless microphone systems using appropriate UHF frequencies and 50-ohm BNC antenna connections. Two equal-length, low-loss 50-ohm coaxial cables are required for connection and are not included.

DFINW Features

• Polarization diversity antenna for wireless microphone systems
• 470-698 MHz operating frequency range
• Patented cross-polarized antenna design
• One directional LPDA antenna element
• One bi-directional dipole antenna element
• Captures vertically and horizontally polarized RF signals
• Designed to reduce multipath fading and wireless dropouts
• Provides two diversity antenna outputs from one physical antenna assembly
• Two BNC female RF connectors
• 50-ohm impedance
• White wall-mount installation version
• Matte white finish with no logo or markings
• Includes wall-mount L-bracket and installation hardware
• Suitable for schools, houses of worship, corporate spaces, theaters, broadcast facilities, and other installed wireless systems
• Requires two coaxial cables for connection to a diversity receiver or antenna distributor
• Coaxial cables are not included

DFINW Specifications

• Product Type: Polarization Diversity Antenna
• Operating Frequency: 470-698 MHz
• Bandwidth: 228 MHz
• Average Return Loss: -9.4 dB
• Impedance: 50 ohms
• LPDA Beam Width: 140° Azimuth
• LPDA Front-to-Back Ratio: -8 dB
• LPDA Front-to-Side Ratio: -5 dB
• LPDA Gain: 5 dBd
• Dipole Beam Width: 100° Azimuth
• Dipole Front-to-Back Ratio: -5 dB
• Dipole Front-to-Side Ratio: -13 dB
• Dipole Gain: 1.8 dBd
• Connectors: 2 x BNC Female
• Mount Threads: 1/4-20, 3/8-16, 5/8-27
• Finish: White
• Length: 12 in (300 mm)
• Height: 14.6 in (370 mm)
• Weight: 1 lb (454 g)
• Operating Temperature: -9°F to 130°F (-23°C to 54°C)

What's In The Box

• RF Venue DFINW White Diversity Fin Antenna
• White L-Bracket Wall Mount
• Wall-Mount Installation Hardware

RF VENUE DFINW (RF Venue DFIN-W)
