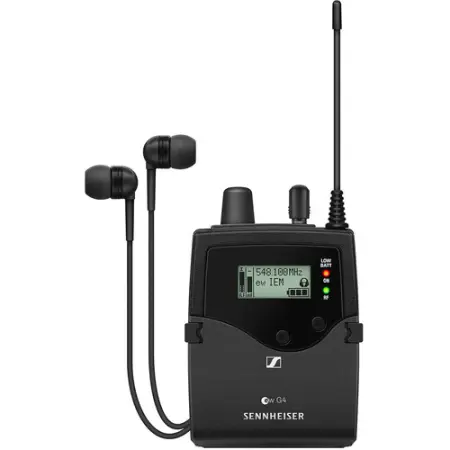

High-Performance Stereo Bodypack Receiver with Earphones
The
Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 earphones is a professional-grade solution for wireless RF monitoring in live performances, theater productions, and rehearsals. Designed for flexibility and clarity, it offers reliable performance with adaptive diversity technology, a robust metal housing, and seamless synchronization with transmitters.
Sennheiser EK IEM G4 Competitive Differences
- Compatible with Sennheiser WSM control software for advanced frequency management
- Wide 42 MHz bandwidth with 1680 selectable UHF frequencies
- Robust metal body for durability in demanding environments
- Adjustable limiter and high-boost features for tailored audio output
- Infrared synchronization between transmitter and receiver for quick setup
- Up to 300' transmission range for reliable stage coverage
- Up to 6 hours of operation on AA batteries or BA 2015 accupack
Sennheiser EK IEM G4 Description
The
Sennheiser EK IEM G4 is part of the evolution wireless series, offering outstanding audio clarity and reliable wireless operation. Featuring adaptive diversity technology, the receiver ensures stable RF performance in various environments. With a bandwidth of up to 42 MHz and 1680 selectable frequencies, it provides flexible and interference-free operation.
Its backlit menu-driven display delivers essential information such as frequency settings, battery status, and RF/AF levels, while the auto-lock feature prevents accidental changes. The included IE 4 earphones enhance audio monitoring with a clear and balanced sound profile. The EK IEM G4 is designed for stage professionals requiring high-quality, reliable wireless performance.
EK IEM G4 Features
- Stereo Bodypack Receiver with IE 4 Earphones
- Adaptive diversity technology for improved RF performance
- 42 MHz bandwidth with 1680 UHF frequencies selectable in 25 kHz steps
- Up to 16 compatible channels
- Backlit menu display with auto-lock feature
- Adjustable limiter (-18 dB to -6 dB) and switchable high-boost
- 3.5 mm stereo jack output for earphones
- Durable metal housing
- Powered by AA batteries or BA 2015 accupack
EK IEM G4 Specifications
- Frequency Band: A (516 to 558 MHz)
- 1680 receiving frequencies adjustable in 25 kHz steps
- 20 fixed frequency banks and 6 user-programmable banks
- Signal-to-Noise Ratio: Approximately 90 dBA
- Total Harmonic Distortion (THD): ≤ 0.9%
- Audio Output Power: 2 x 100 mW at 32 Ohms
- Power Supply: 2 x AA batteries or BA 2015 accupack
- Battery Life: Approximately 4 to 6 hours
- Dimensions: 3.2 x 2.5 x 0.9" (82 x 64 x 24 mm)
- Weight: 4.4 oz (125 g)
What's In The Box
- Sennheiser EK IEM G4 Stereo Bodypack Receiver
- IE 4 Earphones
- User Documentation
SENNHEISER EK IEM G4 (A Band)
(Sennheiser EK IEM G4 (A: 516 to 558 MHz))
