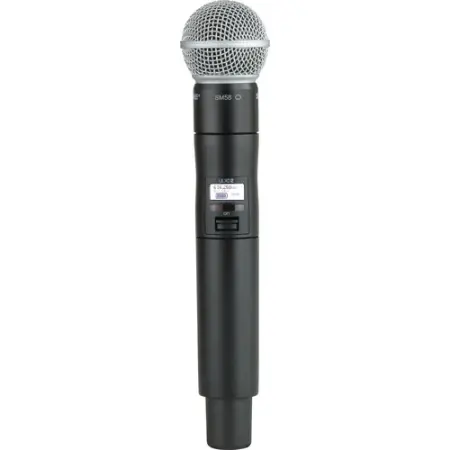

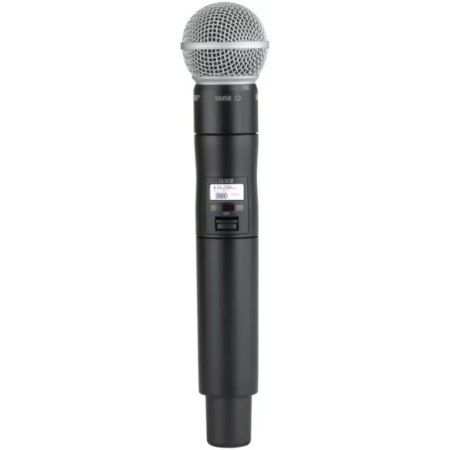

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-Dâ„¢ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Features:
30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
Interchangeable Shure microphone cartridges, including the legendary SM58®
AES 256-bit encryption for applications for which secure transmission is needed
Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect
External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
Backlit LCD with easy to navigate menu and controls
Rugged metal construction
Frequency and power lockout
Specifications:
AUDIO INPUT
Configuration
Unbalanced
Maximum Input Level (1 kHz at 1% THD)
145 dB SPL (SM58), typical
Note: Dependent on microphone type
Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20
120 dBV, A-weighted, typical
RF OUTPUT
Antenna Type
Integrated Single Band Helical
Occupied Bandwidth
<200 kHz
Modulation Type
Shure Proprietary Digital
Power
1 mW, 10 mW, 20 mW
ADDITIONAL SPECS
Audio Frequency Response
30 Hz to 20 kHz (±1 dB), flat
Note: Dependent on microphone type
Dynamic Range
>120 dB
Operating Range
300 ft (100 m)
Gain Offset Range
0 to 21 dB (in 3 dB steps)
Battery Type
Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime @ 10 mW
Shure SB900: >12 hours
Alkaline: 11 hours
Dimensions
10.1" x 2.0" (256 mm x 51 mm), L x Dia.
Weight
12.0 oz (340 g), without batteries
Housing
Machined aluminum
Shure ULXD2SM58 G50
(Shure ULXD2/SM58 G50)
