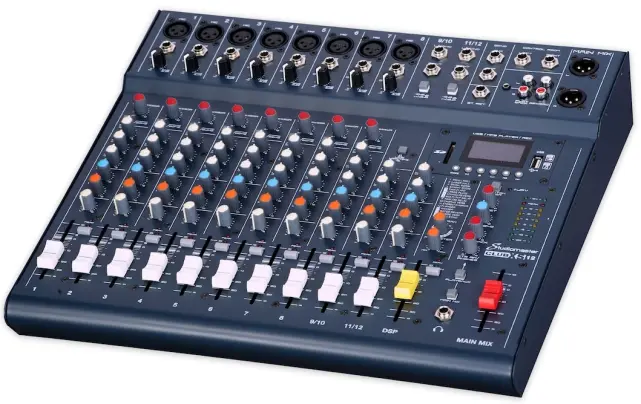

Studio Masters CLUB XS 12+
12 inputs
8 mic channels
2 stereo channels
16 DSP effects
Bluetooth
USB/SD media player
Inputs: 12
Mic Inputs: 8
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN: -100dB
Frequency Responce: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V ~
Dimension W*H*D: 395 x 70 x 359 (mm)
Offering all the features and specifications required from mixing consoles at this level, at a great price point. With features such as 3 band EQ, built-in channel compression, DSP effects and a hugely versatile MP3/USB/SD card playback and recording system.
Input channels, are fully featured with 3 band EQ, 2 Auxiliaries, balanced mic/line connectors, compressor control and a useful channel MUTE switch. Stereo channels differ only with 2 band EQ and no compressor.
Main outputs are balanced XLR, with additional jack outputs available for auxiliaries and control room, and RCA phono record/playback facilities.
The USB/SD card facility for stereo recording / playback make the CLUB XS ideal for project home recording or giving the ability to supply interval / backing music to your live performance. To add further practicality to the unit, there is a built in MP3 player and Bluetooth playback facility to give you every opportunity to make your live performance as quick and easy to set-up as possible.
Also included on both CLUB XS models is a high quality 16 programme DSP effects unit.
In addition to this, the CLUB XS models feature +48V phantom power on all mic channels, high quality 60mm smooth faders, and a robust quiet internal switchmode power supply.
Studiomaster Club XS 12 +
(Studio Master XS-12 Club USB Plus)
