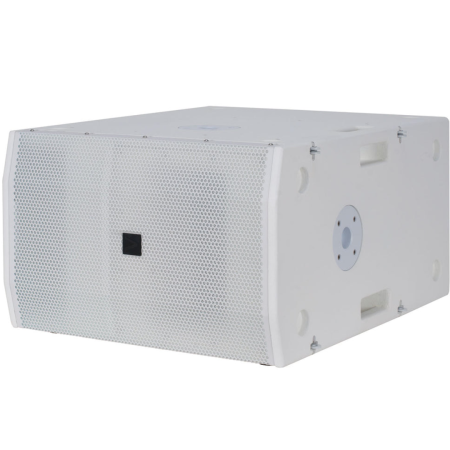

Powerful white active subwoofer for small- to mid‑sized venues
The Avante Audio SUB210W delivers deep, impactful low‑end via a dual 10″ 2.5″ voice‑coil driver setup driven by a 700 W RMS (1 400 W peak) Class‑D amp, with flexible rigging and professional I/O—perfect as a bass extension for Imperio line arrays.
Avante Audio SUB210W Competitive Differences
- Dual 10″ woofers with 2.5″ voice coils delivering 700 W RMS (1 400 W peak) Class‑D power :contentReference[oaicite:0]{index=0}
- Selectable crossover frequency (90 Hz / 120 Hz) and phase switch (0° / 180°) for seamless integration :contentReference[oaicite:1]{index=1}
- 124 dB max SPL for powerful, clear bass output :contentReference[oaicite:2]{index=2}
- 6th‑order band‑pass enclosure optimizes low‑frequency efficiency :contentReference[oaicite:3]{index=3}
- Flyable via integrated rigging and M20 pole sockets—ideal for flown or ground‑stacked setups :contentReference[oaicite:4]{index=4}
- Locking XLR signal I/O and powerCON locking power chain connectors for secure cabling :contentReference[oaicite:5]{index=5}
- Durable plywood cabinet with 1.2 mm steel grille—available in white SUB210W finish :contentReference[oaicite:6]{index=6}
- ETL safety approval ensures reliable, safe operation :contentReference[oaicite:7]{index=7}
Avante Audio SUB210W Description
The Avante Audio SUB210W is a premium active subwoofer designed to add powerful low‑end presence to the Imperio Mini Line Array system. Equipped with dual 10″ woofers and a robust 700 W RMS Class‑D amplifier, it delivers clear, punchy bass with a 124 dB maximum SPL. Its flexible crossover (90/120 Hz) and phase selection (0°/180°) allow precise tuning with satellite speakers. The rugged plywood cabinet and steel grille provide durability, while integrated rigging and M20 pole mounts support both flown and stacked deployment.
This model is finished in white, matching the SUB210W aesthetic, and includes locking XLR and powerCON connections for professional-grade installation. With ETL certification and a thoughtfully designed band‑pass enclosure, it offers reliable performance in a variety of venue applications, from mobile DJ setups to install environments.
SUB210W Features
- 700 W RMS / 1 400 W peak Class‑D amplifier
- Dual 10″ woofers with 2.5″ voice coils
- Selectable crossover at 90 Hz or 120 Hz
- Phase switch (0° / 180°)
- 6th‑order band‑pass design
- Max SPL of 124 dB

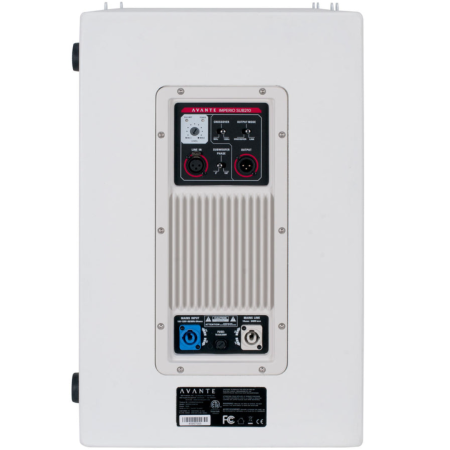

- Locking 3‑pin XLR input and output
- Locking powerCON input and daisy‑chain output
- LED indicators: Power, Signal, Clip
- Flyable design with integrated rigging and M20 pole sockets
- Plywood cabinet, 1.2 mm steel grille
- Available in white finish (SUB210W)
- Internal selectable power supply (100–120 V / 220–240 V)
- ETL safety approved
SUB210W Specifications
- Amplifier Power: 700 W RMS (2 × 350 W), 1 400 W peak
- Drivers: 2 × 10″ / 2.5″ voice coils
- Max SPL: 124 dB
- Crossover Frequency: 90 Hz / 120 Hz
- Phase: 0° / 180°
- Enclosure Type: 6th‑order band‑pass
- Signal I/O: 1 × XLR in/out (balanced)
- Power I/O: powerCON in/out (locking)
- Pole Mounts: 2 × M20 (top/side)
- Dimensions (W × H × D): 26.4″ × 14.25″ × 22.6″ (670 × 362 × 575 mm) :contentReference[oaicite:8]{index=8}
- Weight: 76 lb (34.5 kg) :contentReference[oaicite:9]{index=9}
- Construction: Plywood cabinet, 1.2 mm steel grille
- Certifications: ETL approved
- UPC: 818651027693 (SUB210W) :contentReference[oaicite:10]{index=10}
What’s In The Box
- Avante Audio SUB210W subwoofer (white)
- Main power cable (9.8 ft / 3 m)
- 3‑pin XLR signal cable (6.6 ft / 2 m)
- powerCON link cable (2 ft / 0.6 m)
- User manual
