Cameo Lighting Pixbar 600 Pro IP65

RDM enabled 12 x 12 W RGBWA+UV Outdoor LED Bar
Featuring 12 ultra bright 12 watt 6-in-1 LEDs and 22° beam width the Cameo PixBar 600 PRO IP65 creates impressive RGBWA+UV washes. Highly efficient convection cooling ensures noiseless performance, and with a 3,600 Hz refresh rate the IP65 rated outdoor fixture is flicker-free and suitable for TV and motion picture applications. The wash light comes with 2 diffusors to change beam and field angles from 22° and 72° to 52° and 92° while providing smooth lighting with minimum dazzle.

The PixBar 600 PRO IP65 is RDM enabled allowing bi-directional communication with a dedicated controller for addressing, configuration and status reporting. It provides 7 modes of DMX control and sports 14 automated lightshows, 4 selectable dimming curves, a strobe function and standalone, master or slave capability. The fixture includes single pixel control, color temperature correction and macros calibrated to the LEE filters standard for additional effects and flexibility.

The rugged aluminium enclosure features a backlit 4-button display with security lock to prevent unauthorized menu access, Neutrik X-HD series 5-pin DMX inputs and outputs and powerCON TRUE1 mains connectors.

Features:

12 ultra-bright 12 W RGBWA+UV LEDs
IP65 classification for outdoor use
Absolutely noiseless and flicker-free operation
7 DMX modes plus operation as a standalone, master or slave
RDM enabled
Bold primary colours, pastel and UV tones
Colour macros that are adjusted for LEE filters
Single Pixel Control for effective Chase effects
Colour temperature correction
4 dimmer curves
Neutrik powerCON TRUE1 and 5-pin X-HD power and DMX sockets
Access lock against unauthorised changes to the menu settings
Rugged housing made of die-cast aluminium

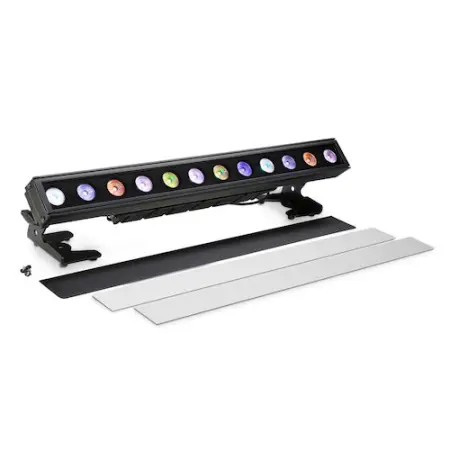

Two diffusion filters and one lens hood included

Specifications:

Product number: CLPIXBAR600PROIP65
Product type: LED Bars
Type: Outdoor
Colour spectrum: RGBWA+UV
Number of LEDs: 12
LED type: 12 W 6in1 colour
Dispersion: (Beam) 52° / (Field) 92°, (Beam) 22° / (Field) 72°
Refresh rate: 3600Hz
DMX input: 5-pin Neutrik X-HD
DMX output: 5-pin Neutrik X-HD
DMX mode: 74-channel, 6-channel 2, 6-channel 1, 2-channel, 8-channel, 12-channel, 78-channel
DMX Functions: colour jump, Dimmer, colour macro, Single Pixel Control, Colour temperature correction, 14 auto modes, strobe, colour fade
Standalone modes: static colour, strobe, 14 auto modes
Controls: mode, Enter, Value Up, Value Down
Indicators: backlit LCD
Operating voltage: 110 V AC - 240 V AC / 50 – 60 Hz
Power consumption: 160W
Power connector: Neutrik powerCON TRUE1 IN (NAC3FX-W) / OUT (NACMFX-W)
Housing material: die-cast aluminium
Cooling: Convection
Cabinet colour: Black
Illuminance: 1250lx @ 1m
Protection class IP: 65
Operating Temperature: -15 - 45°C

Dimensions without mounting bracket
Width: 854mm
Height: 130mm
Depth: 90mm
Weight: 6.2kg

Cameo Pixbar600 Pro IP65 (Cameo Lighting CL-PIXBAR600PROIP65)
