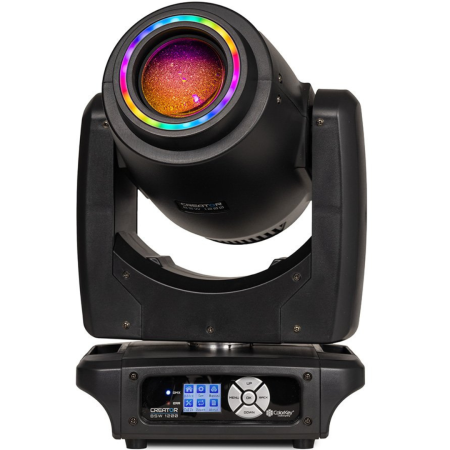

Color Key Creator BSW 1200

Hybrid Moving Head with Beam, Spot, and Wash in One Fixture

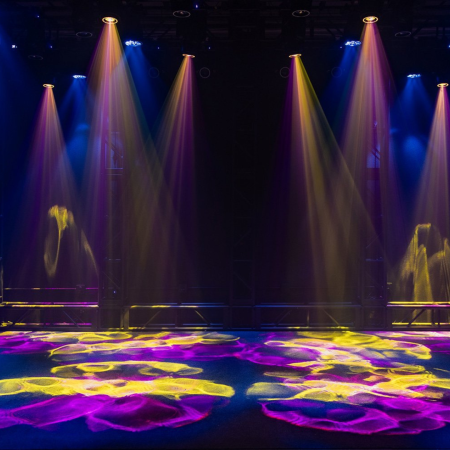

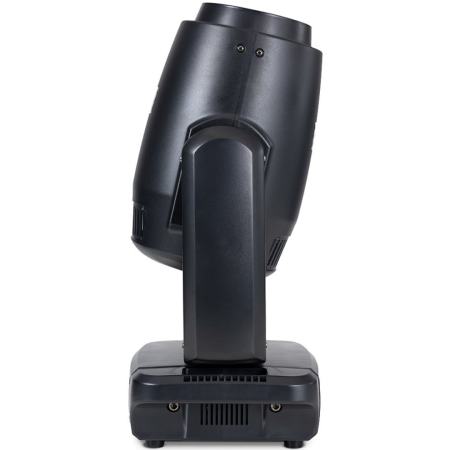

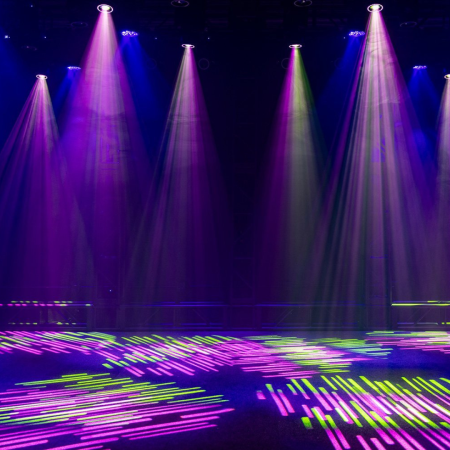

The Color Key CKU-5100 Creator BSW 1200 is a powerful and compact 200W LED moving head luminaire that merges beam, spot, and wash functionality into one versatile fixture. Ideal for lighting professionals seeking flexibility from fewer lights, the BSW 1200 simplifies rigs while delivering a full spectrum of dynamic visual effects for live events, stage productions, and installations.

Color Key CKU-5100 Competitive Differences

• 3-in-1 hybrid design: combines beam, spot, and wash functionality

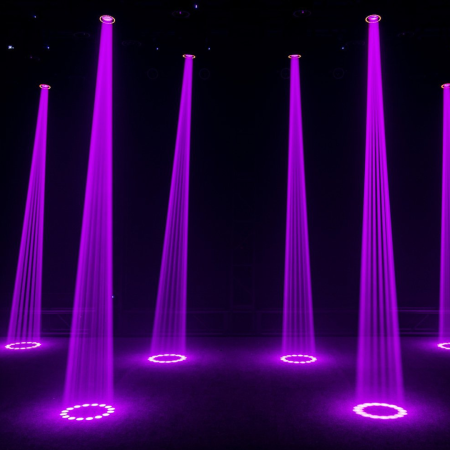

• Motorized zoom from a tight 7° beam to a wide 19° spot
• RGB LED halo synchronized with other Creator Series fixtures with built-in dynamic patterns

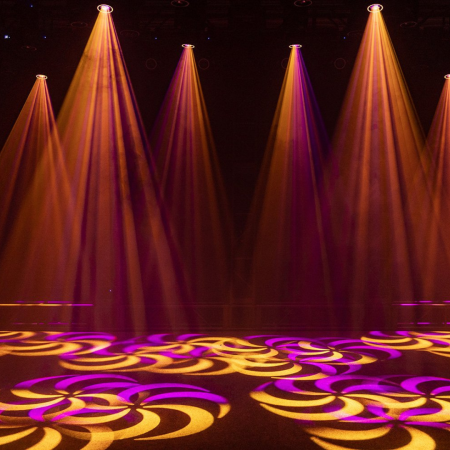

• Dual gobo wheels: 12 static gobos and 7 rotating gobos, including a textured glass gobo
• 3-facet prism for multidimensional beam effects

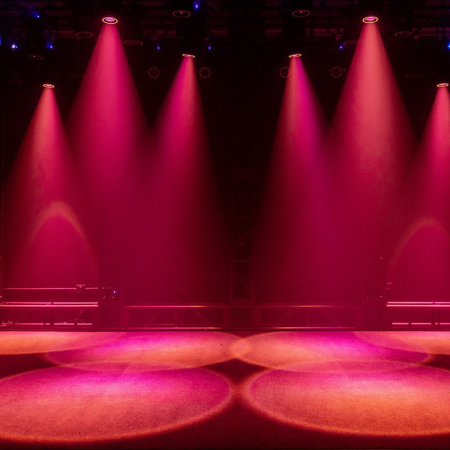

• Frost filter transitions the sharp beam into smooth washes
• Frame Set mode restricts pan/tilt to control light beam direction

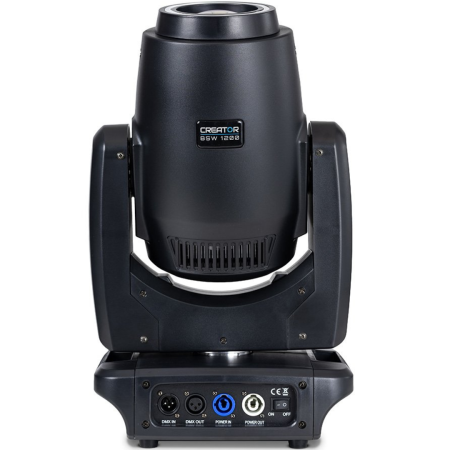

• Quick-release brackets and PowerCon I/O simplify setup and teardown

Color Key CKU-5100 Description

The Creator BSW 1200 from Color Key is built for lighting designers who need power and flexibility in a compact fixture. Its hybrid design seamlessly transitions between tight beam projections, textured spot effects, and soft wash fills, all while maintaining clarity and control via its motorized zoom (7°–19°) and focus system.

Loaded with a full feature set, it offers two gobo wheels (12 static, 7 rotating), a color wheel with split-color effects, and a 3-facet prism to create immersive visuals. The RGB LED halo enhances your effects with synchronized Creator Series chases, helping you build coordinated and engaging shows across your rig. Frost diffusion enables beautiful transitions to wash lighting for moments when intensity must give way to ambiance.

Frame Set mode restricts beam movement, avoiding misfires into the audience or backdrop. The rugged housing includes dual quick-release brackets and an intuitive LCD interface for easy programming and operation. With high brightness, creative control, and multiple effects in one housing, the Creator BSW 1200 is a smart all-in-one solution for professionals who want more from their lighting tools.

CKU-5100 Features

• 200W hybrid LED moving head (beam, spot, and wash)
• 8-color wheel with split-color capabilities
• 12 static gobos and 7 rotating gobos, including textured glass gobo
• 3-facet prism for beam multiplication
• Motorized zoom: 7° to 19° beam angle range
• Motorized focus and frost filter (0–100%) for wash transitions
• RGB halo with Creator Series synchronized effects
• Frame Forward and Frame Up pan/tilt restrictions

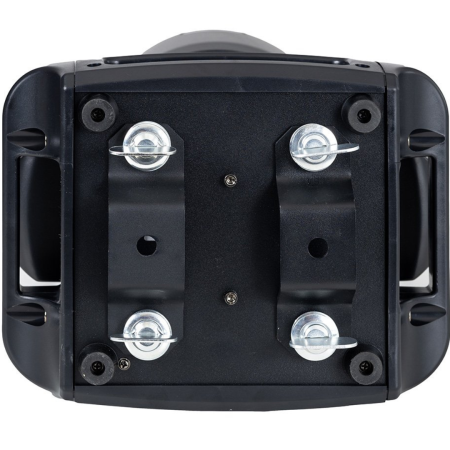

• Dual quick-release mounting brackets
• 1.77-inch color LCD display for easy menu navigation

CKU-5100 Specifications

• Light Source: 200W White LED
• Halo: 20 RGB LEDs with built-in dynamic patterns
• Color Temperature: 8,000K
• Beam Angle: 7° to 19°
• Brightness: 66,500 lux @ 2m (7°), 9,100 lux @ 2m (19°)
• Color Wheel: 8 colors + open, split colors

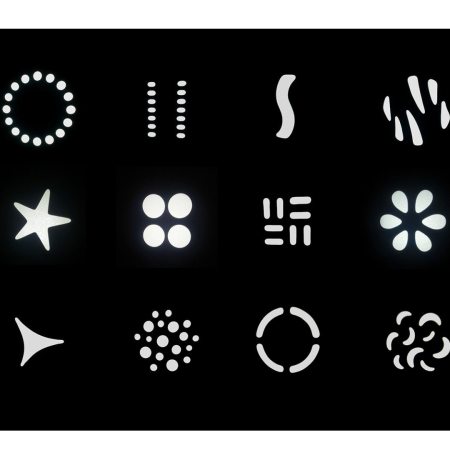

• Static Gobo Wheel: 12 gobos + open
• Rotating Gobo Wheel: 7 gobos + open, textured glass gobo
• Prism: 3-facet rotating prism
• Strobe: 1–25 Hz, random and pulse
• Frost: 0–100% adjustable filter
• Dimmer: 0–100% linear
• Pan: 540° with fine control
• Tilt: 270° with fine control
• DMX Channels: 24
• Control Modes: DMX512, Master-slave, Auto, Sound Active
• Power Connection: PowerCon in/out
• DMX Connection: 3-pin DMX in/out
• LED Lifetime: 50,000 hours
• Max Power Consumption: 250W
• Voltage: AC100–240V, 50/60 Hz
• Dimensions: 11" x 8.3" x 18.5" (28 x 21 x 47 cm)
• Weight: 20.9 lbs (9.5 kg)
• UPC: 810189840010

COLORKEY Creator BSW 1200 (Color Key CKU-5100)
