American DJ Focus Spot 4Z (ADJ Focus Spot 4Z)

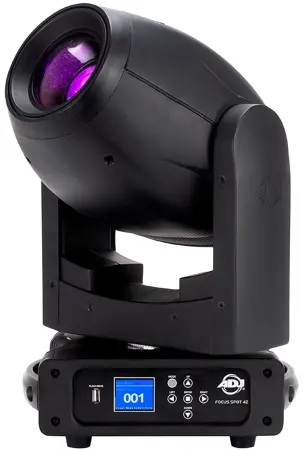

The new ADJ Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The ADJ Focus Spot 4Z is powered by a 200W LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The American DJ Focus Spot FourZ has locking powerCON In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (17-inch high and one 18 pounds). Order this 200w moving head today!

Features:

Motorized Focus
Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
0-100% smooth dimming
Various strobe speeds
USB firmware update port
2 cooling fans


Specifications:

Light Source:

• 200W Cool White LED Engine (50,000 hr.)


Color Wheel:

• 8 dichroic colors + white


GOBO Wheel:

• 6 aluminum GOBOs + open

• All GOBOs removeable & rotatable

• GOBO Shake Effect

• GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)


Prism Wheel:

• Prism Wheel 1: Rotatable 5-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Prism Indexing


Control:

• 3 DMX Channel Modes: 16/18/22 Channels

• Color LCD display with 6-button function menu

• Data In/Out: 5-pin DMX

• Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network


Pan/Tilt:

• Pan: 540-degrees

• 16-bit Fine Pan: 630-degrees

• Tilt

• 16-bit Fine Tilt

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 240W max


Dimensions & Weight:

• Dimension: 18” x 10.97” x 7.15” / 457 x 279 x 182mm

• Weight: 23 lbs. / 10 kg.


What’s Included:

• Omega Bracket

• 6 ft/3M powerCON power cable

• Safety Cable
