ADJ Focus Spot 4z Pearl | 200W Moving Head Spot wi...
$1,649.99

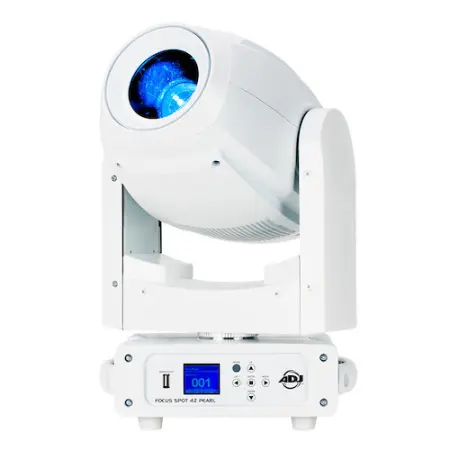

The ADJ Focus Spot 4Z Pearl is a 200W LED moving head spot light with a white exterior housing, motorized focus, and an adjustable 11° to 22° zoom range. Delivering 7,000 lumens, this versatile lighting fixture features 6 rotating and replaceable gobos, 8 dichroic colors plus white, and dual rotating prisms for dynamic aerial effects and projected patterns. Designed for live events, nightclubs, stages, churches, and fixed installations, it combines flexible DMX control with a compact design.
The ADJ Focus Spot 4Z Pearl delivers versatile moving head lighting performance in a compact white housing. Powered by a 200W cool white LED engine, the fixture produces 7,000 lumens and supports motorized focus and zoom for adjustable beam projection. Its 11° to 22° zoom range allows lighting designers to create narrow, concentrated beams or wider projections for stages, nightclubs, houses of worship, and special events.
The fixture incorporates a rotating gobo wheel with six removable aluminum gobos plus an open position, allowing users to project detailed patterns and textures. Each gobo can rotate, while the gobo shake function adds movement to projected effects. An eight-color dichroic wheel plus white provides a variety of color combinations, making the fixture suitable for both subtle atmospheric lighting and energetic performances.
Two independent prism effects expand the fixture's creative possibilities. The rotating 5-facet linear prism produces repeated linear patterns, while the rotating 6-facet circular prism creates symmetrical beam multiplication effects. Prism indexing provides additional positioning control, and motorized focus allows patterns and effects to be sharpened as needed. Smooth dimming, adjustable strobe effects, and selectable dimming curves offer further control over lighting transitions.

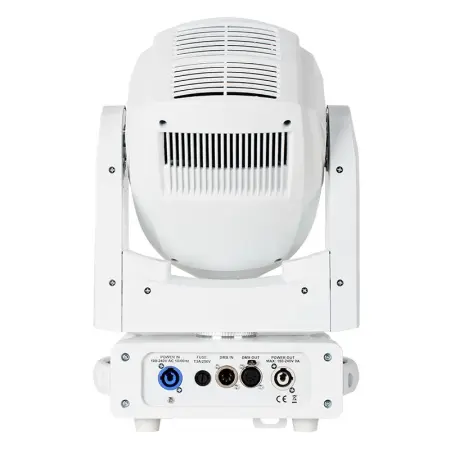

For professional lighting systems, the Focus Spot 4Z Pearl supports three DMX operating modes with 16, 18, or 22 channels. Fine pan and tilt control enables accurate positioning, while 540° or 630° pan ranges and 270° tilt provide extensive movement coverage. The fixture includes 5-pin DMX input and output connections, RDM support, locking power connections, and a USB firmware update port. A color LCD with a six-button menu makes it convenient to access settings and internal programs.
Designed for temporary productions and permanent installations, the Focus Spot 4Z Pearl features a compact 18-inch-tall housing weighing approximately 23 lb (10 kg). Two cooling fans help manage operating temperatures, while the included omega bracket and safety cable support secure installation when used with appropriate mounting hardware. Its white finish makes it particularly suitable for churches, wedding venues, stages, and event spaces where the lighting equipment should complement the surroundings.
| Beam Angle | 11° - 22° degrees |
| LED Type | Cool White LED Engine |
| Lumen Output | 7000 lumens lumens |
| Power Consumption | 240W W |
| Power Rating | 200W W |
| Voltage Range | 100-240V AC, 50/60Hz volts |
| Wattage | 200W W |
| Brand | ADJ |
| Name | ADJ Focus Spot 4z Pearl |
| Primary Category | LED Moving Head Spot Light |
| Build Material | White Pearl Housing |
| Depth | 7.15 in mm |
| Dimensions | 7.15 x 10.97 x 18 in (181.5 x 278.6 x 457.4 mm) mm |
| Height | 18 in mm |
| Included Accessories | Omega Mounting Bracket, Locking Power to Edison Cable, Safety Cable |
| Mounting Options | Omega mounting bracket and safety cable included |
| Weight | 23 lb (Approximately 10 kg) kg |
| Width | 10.97 in mm |
| CE Certified | Not specified |
| ETL Listed | cETLus |
| FCC Certified | Not specified |
| RoHS Compliant | Not specified |
| Warranty Length | Not specified years |
| Control Interfaces | DMX512, Internal Programs, RDM Supported |
| Firmware Updates | USB firmware update port |
| Onboard DSP | Internal programs for standalone operation |
| Screen / Display | Color LCD with six-button menu |
| DMX Channel Modes | 16, 18, 22 channels |
