Hybrid LED Moving Head Light
The

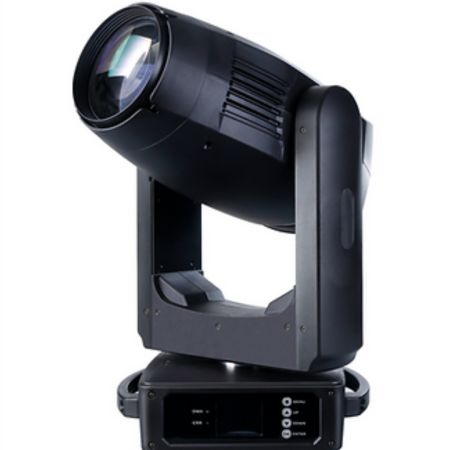

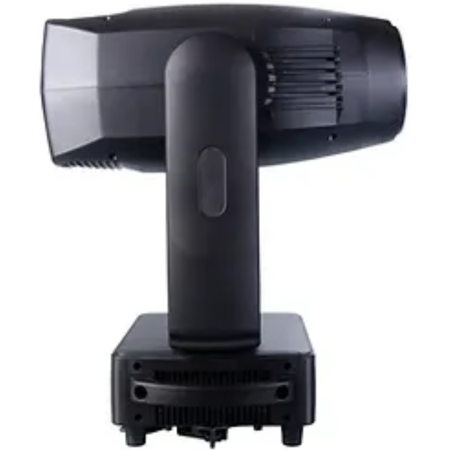

Crisp VERSATILIS 680CMY is a powerful, all-in-one hybrid moving head fixture built for high-level stage and event lighting. With beam, spot, and wash functionality, smooth CMY color mixing, and an expansive 4.9°–33.9° zoom range, this 500W LED unit offers premium performance for professional productions.
Crisp VERSATILIS 680CMY Competitive Differences
- 500W LED hybrid fixture with rotatable and static gobos
- CMY color mixing system with CTO/CTB filters and 9 additional colors
Crisp VERSATILIS 680CMY Description
The
Crisp VERSATILIS 680CMY is engineered for lighting designers who demand power, flexibility, and creative control. Its 500W LED engine produces brilliant, high-output light with a 50,000-hour rated lifespan, making it a reliable centerpiece for touring rigs, theaters, festivals, and live venues.
The hybrid design delivers full beam, spot, and wash capabilities, with an adjustable zoom from 4.9° for tight beams to 33.9° for wide-area coverage. Its CMY color mixing system offers seamless transitions across the spectrum, while the additional color wheel includes 9 fixed options plus CTO and CTB filters for fine-tuned temperature control.
For immersive visual effects, the unit features two rotating prisms—8-facet and 3-facet—that can be layered for deep, dynamic mid-air beams. It also includes a rotatable gobo wheel with 7 interchangeable gobos and a static wheel with 11 fixed patterns, enabling customized projection and textural effects.
Setup is fast and intuitive with integrated clamps, an LCD touch display, and multiple control modes including DMX, RDM, Auto, and Master/Slave. Built for serious stagecraft, this fixture delivers everything needed for impactful, pro-grade lighting.
Model Features
- Hybrid beam/spot/wash design with 500W LED engine
- CMY color mixing plus CTO, CTB, and 9-color wheel
- Adjustable zoom from 4.9° to 33.9°
- Rotating gobo wheel with 7 replaceable gobos
- Static gobo wheel with 11 fixed gobos
- Dual rotating prisms (8-facet + 3-facet)
- Linear dimmer and strobe up to 25Hz
- LCD touchscreen with 4-button interface
- RDM support with software updates via DMX
- Integrated clamps for quick, secure mounting
Model Specifications
- Light Source: 500W LED
- LED Lifespan: 50,000 hours
- Beam Angle: 4.9° – 33.9°
- Color System: CMY + 9 colors + CTO + CTB + open
- Rotating Gobos: 7 replaceable + open
- Static Gobos: 11 fixed + open
- Prisms: 8-facet and 3-facet rotatable
- Dimmer: 0–100% linear
- Strobe: 1–25Hz
- Pan: 540°, Tilt: 270° (16-bit resolution)
- DMX Channels: 24CH
- Control Modes: DMX, Auto, Master-Slave, RDM
- DMX Connector: 5-pin XLR In/Out
- Power Connector: True1 input
- Display: LCD touch with 4-button control
- Input Power: AC 100–240V, 50/60Hz
- Power Consumption: 600W
- Fuse: 10A
- IP Rating: IP20
- Operating Temp: -10°C to 40°C (14°F to 104°F)
- Dimensions: 14 x 9.9 x 27.8 in (360 x 252 x 711 mm)
- Weight: 50.7 lbs (23 kg)
Crisp Versatilis 680 CMY
(Crisp SPL-LED-680CMY)
