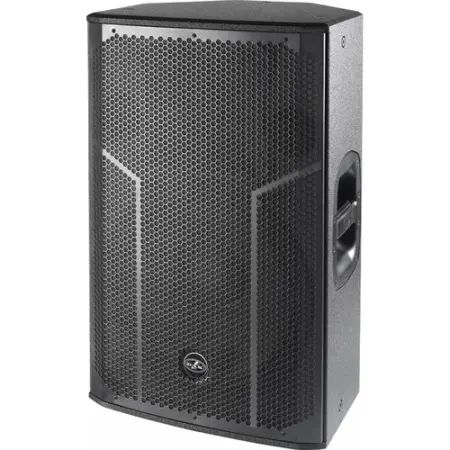

Versatile 15-Inch Powered PA Speaker with DSP and Mixing Capabilities

The D.A.S. Audio ACTION-515A is a powerful 1000W 15-inch powered PA speaker designed for portability and flexibility in various sound reinforcement applications. Ideal for live music, presentations, and A/V setups, it offers clear, high-volume sound with onboard DSP processing and a user-friendly LCD interface for quick adjustments.

D.A.S. Audio ACTION-515A Competitive Differences

  • 1000W Class-D bi-amplifier delivers robust output with 131 dB peak SPL
  • Onboard DSP with easy-to-use presets for optimized sound: LIVE, DANCE, and MONITOR modes
  • 3-input mixer with two combo XLR-1/4" inputs and a 3.5mm aux input for versatility
  • Rotatable 1.4" titanium compression driver for flexible horizontal or vertical positioning
  • 90° x 60° coverage pattern ensures consistent sound distribution in mid-sized venues
  • Durable birch plywood enclosure with ISO-flex paint for long-lasting performance

D.A.S. Audio ACTION-515A Description

The D.A.S. Audio ACTION-515A is engineered to provide high-quality audio for a wide range of applications, from live performances to conference settings. With a 15-inch woofer and a 1.4-inch rotatable titanium compression driver, this active speaker ensures detailed sound reproduction across a frequency range of 45 Hz to 20 kHz. The bi-amplified Class-D design provides 1000 watts of peak power, delivering loud and clear sound up to 131 dB, suitable for audiences of up to 300 people. The onboard DSP and DAScontrol interface simplify setup and tuning, offering presets tailored for different environments and uses. Whether you need enhanced vocal clarity, punchy dance settings, or balanced stage monitoring, the ACTION-515A adapts to your needs. It features a 3-input mixer with independent gain controls, allowing simultaneous connection of microphones, instruments, and playback devices. Additionally, the rotatable high-frequency driver enables horizontal placement for stage monitor use or flown installations.

ACTION-515A Features

  • 15" woofer and 1.4" titanium compression driver for rich, detailed sound
  • 1000W Class-D bi-amplification system (500W RMS)
  • DSP with LCD screen and presets: LIVE, DANCE, MONITOR
  • High-pass filter and delay settings for precise sound alignment
  • Three-input mixer: two XLR-1/4" combo inputs and a 3.5mm aux input
  • Rotatable horn for flexible positioning
  • Durable plywood construction with ISO-flex paint finish
  • Dual-angle pole mount and M10 fly points for versatile mounting options

ACTION-515A Specifications

  • Configuration: Active 2-Way, Bass-Reflex
  • Amplifier Power Rating: 1000W Peak (500W RMS)
  • Drivers:
    • HF: 1.4" Titanium Compression Driver (Rotatable)
    • LF: 15" Woofer with 2.5" Voice Coil
  • Frequency Range: 45 Hz to 20 kHz (-10 dB)
  • Maximum SPL: 131 dB (Peak)
  • Coverage Angle: 90° Horizontal x 60° Vertical
  • Input Sensitivity: +8 dBu
  • Input Impedance: 20 kΩ Balanced
  • Audio I/O:
    • 2 x Combo XLR-1/4" TRS Mic/Line Inputs
    • 1 x 3.5mm TRS Aux Input
    • 1 x XLR 3-Pin Thru/Output
  • Power Requirements: 115-230 VAC, 50/60 Hz
  • Power Consumption: 180W
  • Mounting: M10 Fly Points, Dual Angle Pole Socket
  • Construction Material: Birch Plywood
  • Dimensions: 28.4 x 17.5 x 15.2 in (721.4 x 444.5 x 386.1 mm)
  • Weight: 51.8 lb (23.5 kg)
