dB Tech INGENIA IG3TR | Dual 10in - 132dB | 1800W ...
$2,499.00

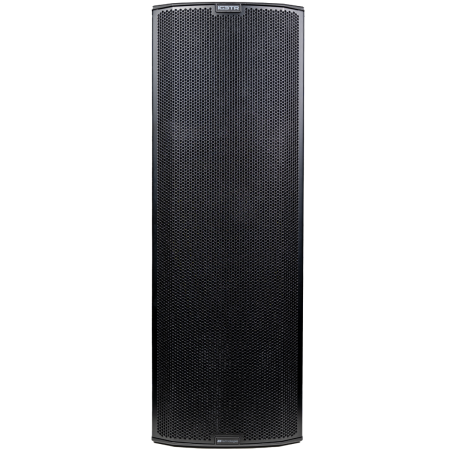

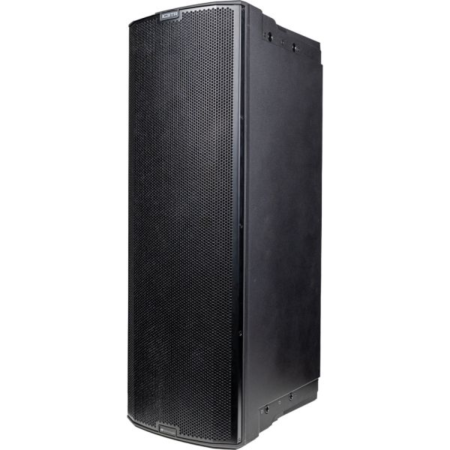

The dBTechnologies INGENIA IG3TR is a 2-way active PA speaker featuring two 10-inch neodymium low-frequency transducers, a 1.4-inch neodymium compression driver, and 1800W peak amplification. Designed to operate individually or as a coupled pair, it combines high-output performance with automatic configuration, digital coverage steering, RDNet remote control, and an intuitive OLED interface.
The dBTechnologies INGENIA IG3TR combines dual 10-inch neodymium woofers with a 1.4-inch neodymium compression driver and 3-inch HF voice coil. Its Digipro G3 Class-D amplifier supplies 900W RMS and 1800W peak power, producing a maximum SPL of 132 dB while covering frequencies down to 51 Hz at -10 dB.
The INGENIA system is designed for flexible deployment. An IG3TR can operate independently or be coupled with another compatible INGENIA speaker by turning one enclosure upside down and positioning it on top of the other. Infrared-based Element Position Detection recognizes the second enclosure, while an onboard configuration system automatically adjusts operation for improved acoustic coherence and audience coverage.
A vertically asymmetric horn delivers wide and consistent horizontal dispersion while varying the vertical pattern between the upper and lower portions of the coverage area. When two INGENIA enclosures are coupled, this design works with digital steering and DSP processing to control high-frequency coverage and minimize unwanted interference between the cabinets.

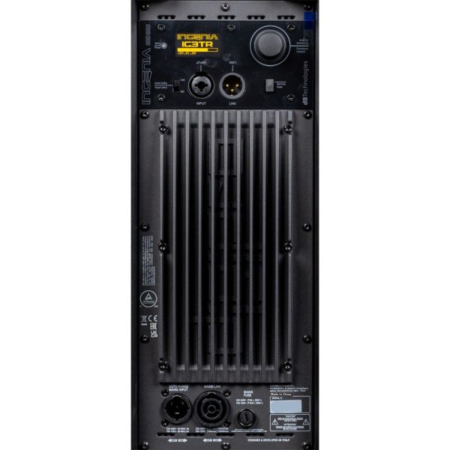

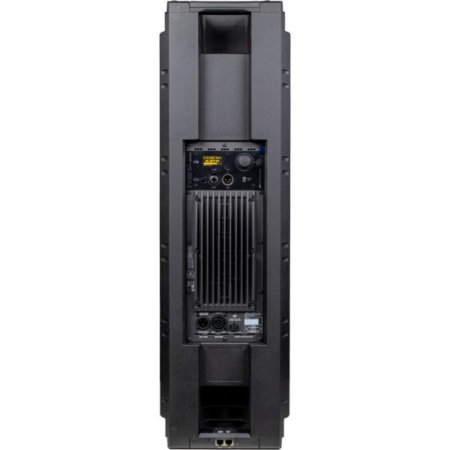

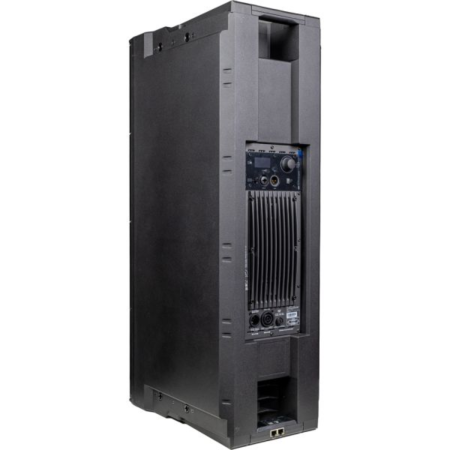

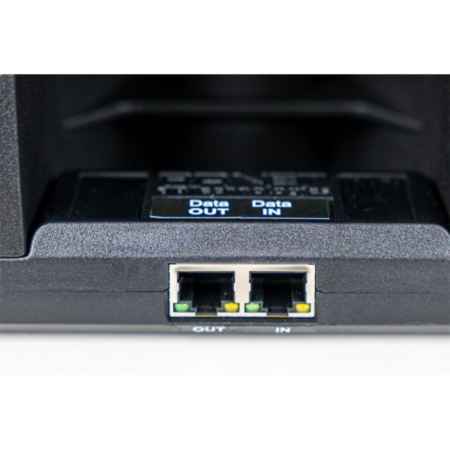

System control is handled through a self-rotating OLED display and rotary knob with integrated switch. The onboard 56-bit DSP manages system presets, EQ, levels, coverage steering, input configuration, FIR Linear Phase processing, and protection functions. RDNet connectivity provides additional remote-control capability for applications requiring centralized system monitoring and adjustment.

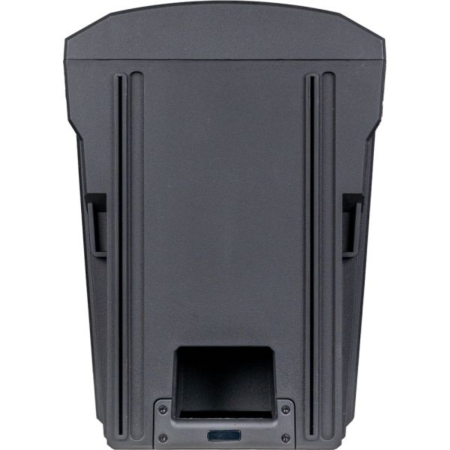

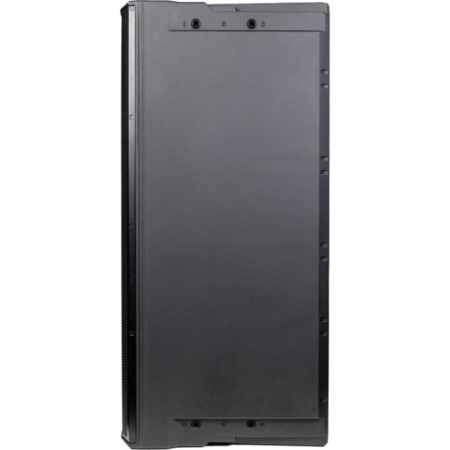

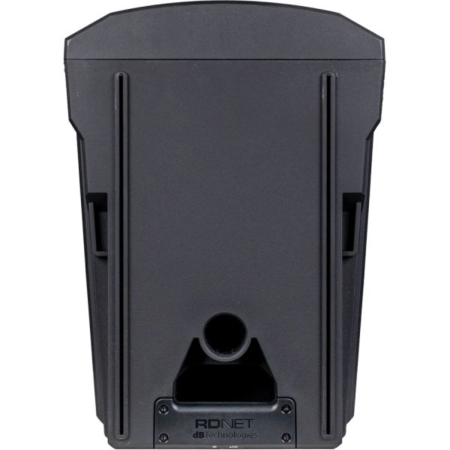

The reinforced polypropylene enclosure features integrated top and bottom handles, pole-mount capability, and flying support. These features make the IG3TR suitable for mobile DJs, live bands, production companies, houses of worship, event venues, rental systems, and installed sound applications. The optional DRK-IG flybar can be used when deploying coupled INGENIA speakers in a flown vertical array.
| Beam Angle | 110° horizontal x 90° vertical (+20°/-70°) degrees |
| Connectivity Protocols | RDNet, Aurora Net software compatible |
| Frequency Response | 51 Hz - 20 kHz (-10 dB) Hz |
| LED Type | Dual 10-inch neodymium LF drivers, 1.4-inch neodymium compression driver |
| Max SPL | 132 dB dB |
| Power Rating | 1800W peak, 900W RMS W |
| Wattage | 1800W peak, 900W RMS W |
| Brand | dB Tech |
| Name | dB Tech INGENIA IG3TR |
| Primary Category | Active PA Speaker |
| Build Material | Reinforced polypropylene enclosure |
| Dimensions | 31.73 x 11.02 x 15.47 in (806 x 280 x 393 mm) inches |
| Mounting Options | Pole-mountable, flying support with optional DRK-IG flybar |
| Weight | 45.86 lb (20.8 kg) kg |
| Control Interfaces | Self-rotating OLED display and rotary knob with integrated switch |
| Firmware Updates | Supported via RDNet and Mini USB Data/Service port |
| Onboard DSP | 56-bit DSP with FIR Linear Phase processing |
| Preset Storage | Factory presets and user-defined presets |
