High-Performance Passive Speaker for Installations and Live Sound
The

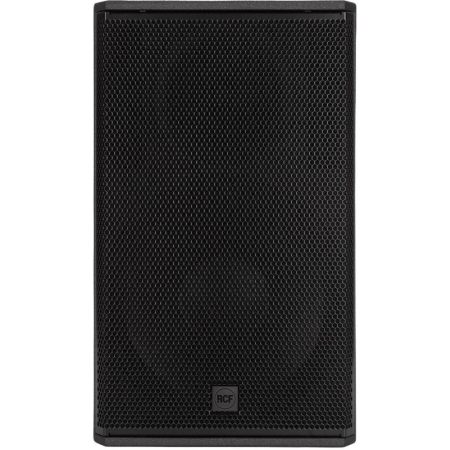

RCF COMPACT C 45 is a powerful and versatile passive point source speaker designed for professional audio applications where high output, clarity, and reliability are essential. With a 700W RMS power rating and a maximum SPL of 138 dB, the COMPACT C 45 is ideal for near to mid-field sound reinforcement in permanent installations or mobile use.
RCF COMPACT C 45 Competitive Differences
- 700W RMS / 2800W peak power handling for high output performance
- High-efficiency 15" neodymium woofer with 4" voice coil
- Powerful 1.4" compression driver with 4" voice coil for clear, detailed highs
- 100° x 50° rotatable waveguide ensures optimal coverage in both horizontal and vertical applications
- Premium birch plywood enclosure with polyurea coating for durability
- EN 54-24:2008 certified for voice alarm and emergency systems
- Multiple mounting points for flexible installation (top, bottom, rear, side)
RCF COMPACT C 45 Description
The
RCF COMPACT C 45 is engineered for professional installations and touring systems requiring a high SPL, wide coverage passive speaker. It features a 15” neodymium woofer and a 1.4” compression driver mounted to a rotatable 100° x 50° waveguide, offering exceptional intelligibility and projection.
Built from premium birch plywood and finished in durable polyurea coating, the C 45 is both rugged and acoustically optimized. The steel grille includes protective cloth backing to safeguard internal components. With Speakon input/output connectors and extensive mounting hardware support, this speaker is ready for wall, ceiling, or flown applications.
Its impressive acoustic performance is matched by EN 54-24:2008 certification, making it suitable for emergency and public address systems in compliant environments. Whether deployed as a standalone unit or part of a larger system, the C 45 delivers accurate, distortion-free sound in any demanding environment.
COMPACT C 45 Features
- 700W RMS / 2800W peak passive point source loudspeaker
- 1 x 15" neodymium woofer with 4" voice coil
- 1 x 1.4" neodymium compression driver with 4" voice coil
- 100° x 50° constant directivity rotatable waveguide
- Steel front grille with protective cloth
- Multiple mounting points for flexible installation
- Speakon input/output connectors
- Polyurea-coated birch plywood cabinet
- EN 54-24:2008 certified
COMPACT C 45 Specifications
- Frequency Response: 48 Hz – 20,000 Hz (-10 dB)
- Maximum SPL @ 1m: 138 dB
- System Sensitivity: 98 dB
- Nominal Impedance: 8 ohms
- Crossover Frequency: 1100 Hz
- Recommended Amplifiers: XPS 16K, QPS 10K, IPS 5.0K, DMA 504 (and others)
- Input/Output Connectors: Speakon in/out
- Cabinet Material: Birch plywood with polyurea coating
- Mounting Hardware: 4 x M8, 14 x M10
- Grille: Steel with cloth backing
- Color: Black (RAL 9005)
- IP Rating: IP21C
- Height: 27.76 in (705 mm)
- Width: 16.49 in (418.8 mm)
- Depth: 18.11 in (460 mm)
- Weight: 71.65 lbs (32.5 kg)
Shipping Information
- Package Height: 29.72 in (755 mm)
- Package Width: 18.58 in (472 mm)
- Package Depth: 20.2 in (513 mm)
- Package Weight: 77.16 lbs (35 kg)
Additional Information
- Part Number: 13000602
- Model: COMPACT C 45
- EAN: 8024530020286
- Compliance: CE, EN 54-24:2008
RCF COMPACTC45
(RCF COMPACT-C-45)
