Dual 8" Active Stage Monitor with Network Control & FiRPHASE Clarity
The

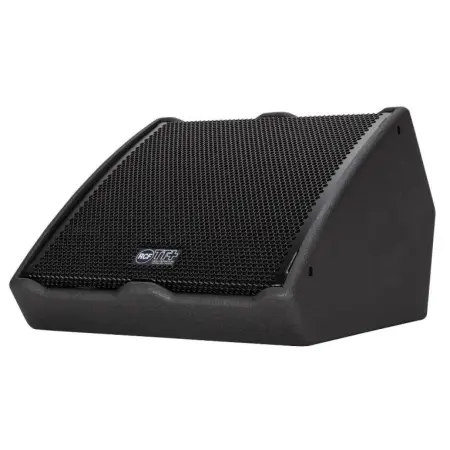

RCF TT 20-CXA is a high-performance active monitor with dual 8" neodymium woofers and a 1.5" compression driver, offering exceptional clarity, precise imaging, and high output in a compact, road-ready format. Featuring 1000W RMS Class-D power, FiRPHASE filtering, and onboard RDNet control, it delivers concert-grade monitoring or FOH reinforcement for touring, theatre, or installed applications.
RCF TT 20-CXA Competitive Differences
- Compact dual 8" symmetrical woofer design for full-range stage monitoring
- 131 dB max SPL and 1000W RMS Class-D amplification for high-output sound
- Onboard RDNet network control for remote DSP tuning and system integration
- Advanced FiRPHASE filters ensure phase-accurate, transparent sound
- Horn-loaded 1.5" neodymium compression driver with 3" voice coil
- Durable Baltic birch cabinet with Polyurea coating for touring resilience
- Multi-functional design: use as a floor wedge or pole-mounted main speaker
RCF TT 20-CXA Description
The
RCF TT 20-CXA sets a new standard in compact touring monitors, delivering superior clarity and transient response with powerful DSP control. Designed with symmetrical dual 8" neodymium woofers and a 1.5" compression driver on a 90° x 70° horn, it offers even, controlled coverage whether deployed as a stage wedge or front-of-house speaker via its side-mounted pole socket.
At the core is a 1000W RMS (2000W peak) two-way Class-D amplifier with advanced DSP, delivering exceptional output with precision. Integrated RDNet allows engineers to remotely manage EQ, delay, limiting, and custom presets. Built-in FiRPHASE technology guarantees linear phase alignment and minimal latency—ensuring natural sound reproduction even in complex environments.
Crafted for real-world durability, the TT 20-CXA features a weather-sealed Baltic birch cabinet with a scratch-resistant Polyurea finish. Its compact footprint, ergonomic handle, and lightweight design make it ideal for mobile setups, rentals, and demanding live sound applications.
TT 20-CXA Features
- 131 dB SPL Max output for powerful stage monitoring
- 1000W RMS Class-D bi-amplified system (700W LF / 300W HF)
- Two 8" neodymium woofers with 2.5" voice coils in symmetrical layout
- Horn-loaded 1.5" neodymium compression driver with 3" voice coil
- 90° x 70° constant directivity coverage
- Onboard RDNet control with custom presets and tuning options
- FiRPHASE filtering for phase-coherent, linear response
- Multi-position cabinet with top handle and side pole socket
- Protective steel grille and weather-resistant construction
TT 20-CXA Specifications
- Frequency Response: 60 Hz – 20,000 Hz
- Max SPL: 131 dB
- Horizontal Coverage: 90°
- Vertical Coverage: 70°
- Amplifier Power: 2000W Peak / 1000W RMS
- HF Power: 600W Peak / 300W RMS
- LF Power: 1400W Peak / 700W RMS
- Woofer: 2 × 8" neodymium, 2.5" voice coil
- Compression Driver: 1 × 1.5" neodymium, 3" voice coil
- Crossover Frequency: 900 Hz
- Input Sensitivity: -2 dBu / +4 dBu
- Input/Output Connectors: XLR, RDNet Ethercon
- Cooling: Convection
- Protections: Thermal, HF, fast limiter
- Power Connection: PowerCON IN/OUT
- Cabinet Material: Baltic birch plywood with Polyurea coating
- Grille: Steel
- Handles: 1 Top
- Color: Black
- Dimensions (H × W × D): 12.52 × 17.52 × 17.72 in (318 × 445 × 450 mm)
- Weight: 30.86 lbs (14 kg)
- Shipping Dimensions (H × W × D): 19.69 × 19.29 × 14.76 in (500 × 490 × 375 mm)
- Shipping Weight: 36.16 lbs (16.4 kg)
RCF USA TT20-CXA
(RCF TT 20 CXA)
