This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

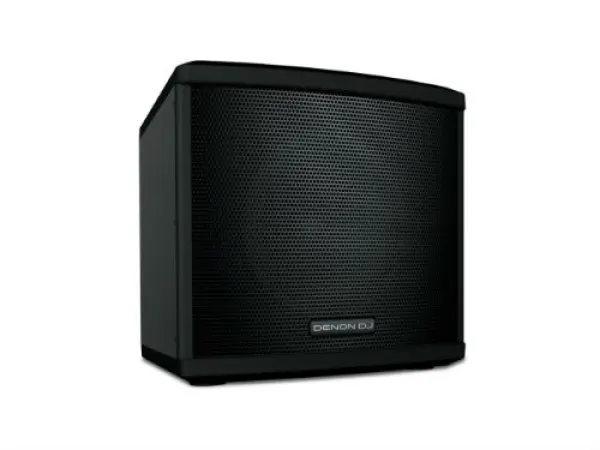

Active 1000-Watt 8” 2-Way Coaxial Speaker System with Digital Control
The Axis 8 is a high-output, ultra-compact loudspeaker system that integrates 1000-watt Class-D bi-amplification with precision internal DSP and a phase-coherent 8” coaxial driver for the most demanding portable or installed music playback applications. Engineered to deliver high sound pressure levels with minimal acoustic phase error, the coaxial driver design propagates its output in a seamless, uninterrupted time envelope, markedly improving definition and clarity.
Features:
High-power 1000-watt 2-way active speaker system for live and playback applications
Class D digital bi-amplification for massive power, light weight and reliability
Precision coaxial driver delivers optimized music performance in a compact enclosure
Long-excursion 8” woofer delivers deep, punchy bass and high acoustic output
Coaxially-mounted 1.75” high-frequency compression driver with 1” acoustic aperture provides extended HF responser
Coaxial design reduces cabinet height by over 30% vs. conventional speakers
Coincident LF/HF driver mounting ensures time/phase coherent output
Uniform horizontal and vertical dispersion delivers optimum sound coverage
Internal DSP controls speaker’s internal 5-band parametric EQ
Includes: standard pole-mount threaded insert, built-in handles
Specifications:
Frequency Response: (-10dB) 60Hz-20KHz
RMS 1000W / PEAK 2000W
Maximum SPL @ 1m: 125dB (from driver sensitivity and amplifier power)
Coverage: 90° x conical
Transducer Low 8" Woofer, 2" voice coil
Transducer High 1" Exit compression driver, 1.75" voice coil
Active Crossover 2KHz with 24dB filter slope
Connector: Input 1 (Line/MIC)-Combo/Input 2-Combo and RCA/THRU-XLR balanced
Input Level: Line 0dBu/MIC -38dBu
External Control: Volume Control/Power ON with green LED/clip limiter with red LED
Digital Presets User-Flat
Electronic Protections: Thermal/Convection-Fan/Overload/Digital Lim./Compressor
Power Supply: 100-120V AC, 50-60Hz/220-240V AC, 50-60Hz, Switching Power Mode. rapezoidal plywood cabinet & top and bottom ABS (High-strength)
Mounting: resistant black paint, metal grille, M10x3PCS Flying PointsOne standard pole-mount plus one plastic handle & 50° (monitor kickstand)
Dimension (HxWxD): 322 x 328 x 319 mm (12.68" x 12.9" x 12.6")
Weight (Approx.) 15kg / 33.07lb
