Electro-Voice ZXA1-90B | 8in - 123dB
DISCONTINUED
1 Video
2 Photos
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
EV ZXA1 (Electro-Voice ZXA-1)
THESE WILL KNOCK YOUR SOCKS OFF!! 800 Watts True Amplified Power, 19 lbs!

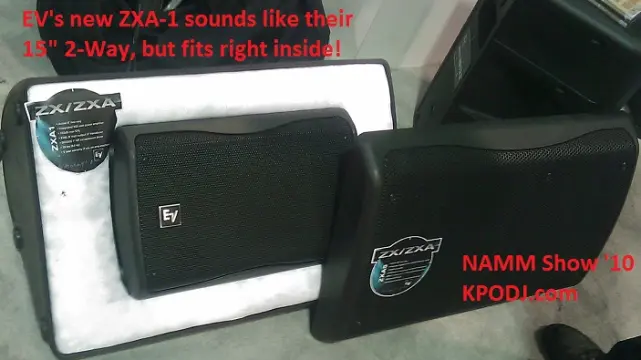

Absolutely unbelievable. To prove it, EV introduced their new 19 lb speaker as a powered full-size 15" cabinet at the NAMM show. After they showed its power, they showed its size!
Electro-Voice engineers have raised the bar for portable sound once
again, adding to the award-winning ZX loudspeaker family with the new ZXA 1
– the self-powered version of the best-selling EV ZX-1 compact two-way
loudspeaker.
Launching globally at Winter NAMM 2010, EV ZXA1 is powered by an 800 watt
amplifier module derived from EV’s world-tour-class Tour Grade series –
amplifiers with audio quality and reliability proven at the very highest levels.
Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the new ZXA1 – the self-powered version of the best-selling ZX1 compact two-way loudspeaker. Launching globally at Winter NAMM 2010, ZXA1 is powered by an 800 watt amplifier module derived from EV’s world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.
Designed for Club Sound, Concert Sound, House of Worship, and other
applications.
Integrated 800 watt power amplifier
Biamplified design with transducer protection
EV8L 8” high-output LF transducer
DH2005 1” exit true compression driver
90° x 50° coverage pattern
Rotatable horn design
123 dB maximum SPL
Selectable high-pass filter for use with subwoofers
Line and microphone inputs
Integral monitor angle on enclosure
Built-in pole mount
Lightweight (< 20 lbs) with integral handle for easy carrying
| Input Connections | XLR and TRS Combo; XLR with Independent Gain |
| Power Requirement | 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A |
| Frequency Response (-3 dB) | 60 Hz - 20 kHz Hz Full Range Mode |
| Frequency Response (-10 dB) | 48 Hz - 20 kHz Hz Full Range Mode |
| Recommended High-Pass Frequency | 100 Hz User Selectable |
| Max. SPL/1m (calc) | 123 dB |
| LF Transducer | EV8L, 203mm (8 in) Driver |
| HF Transducer | DH2005, 25mm (1 in) Exit Compression Driver |
| Crossover Frequency | 1800 Hz |
| Enclosure Material | High Impact Polystyrene |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 457 mm (17.99") |
| Width | 282 mm (11.1") |
| Depth | 264 mm (10.39") |
| Weight Net | 8.62 kg (19 lbs) |
| Shipping Weight | 10.3 kg (22.7 lbs) |
These EV ZXA-1 speakers are awesome for small events, cocktail hours, ceremonies, karaoke, and much more. You can actually use them as your mains for medium size events, but you will definitely need a good sub or two to go with them.<br /> <br /> They are very crisp and clear sounding. They only weigh 19lbs. If you buy the EV CB-1 bags with them, you can snap the two bags together and wear two speakers like a 38lb backpack (which isn't bad and frees up two hands). The only problem is that they do not produce much bass. The ZXA1's are only 8" speakers, so you can't expect them to. For the size, they produce a respectable amount of bass, but not enough to use as mains without a sub or two (if you want to stick with a real compact system, the ZXA1 Subs match up well).<br /> <br /> If you want to use them as mains for a 100+ person event, my recommendation would be to run them in high-pass mode (button on the back) and get a full size sub or two to run with them. The mids and highs are super loud, so they will keep up with a full size sub.
Thanks for your question, We have not increased the price on these.
