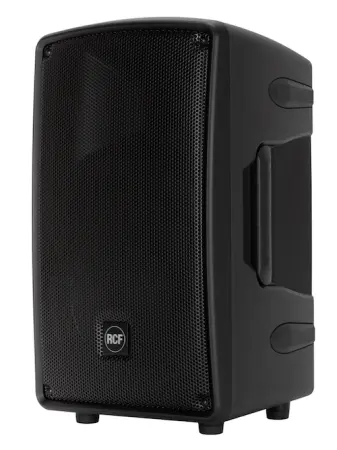

RCF HD10A MK5 | 10in - 128dB
$599.00
The RCF HD10-A mk5 is an active two way loudspeaker with natural clear sound even at long distances. RCF have introduced new transducers and the revolutionary FiRPHASE processing for improved sound quality and perfect stereo images with minimum latency.
The rugged design is ideal for touring use and the SPL power is stable at high levels.
The built in class D amplifier produces a huge 400 watt RMS output ;performance from a compact cabinet, with reduced weight. The solid mechanical aluminium structure not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation.
This 10 inch loudspeaker is ideal for live sound reinforcement & stage monitoring in live music venues as the clever design of the HD10A mk5 enables it to be used standing up or on its side.
800 watt 2-way peak power
128 dB max SPL
DSP processing with FiRPHASE and Bass Motion Control
90° x 70°, wide dispersion constant directivity horn
10" woofer, high power, 2.0" voice coil
1.0" HF driver
Silent fan-less Class-D amplifier
Frequency Response -3dB
50Hz ÷ 20000 Hz
Max SPL @1m
128dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Compression Driver
1 x 1”, 1” voice coil
Woofer
10”, 2.0” voice coil
Input Signal
Balanced / unbalanced
Input connectors
XLR, jack
Output Connectors
XLR
Input Sensitivity
-2 dBu / +4 dBu
Mic Input Sensitivity
-32 dBu
Crossover Frequencies
2000Hz
Protection
Thermal, RMS
Limiter
Soft limiter
Controls
Volume, Boost, Mic / Line
Amplifier Spec
Total Power
800 W Peak, 400 W RMS
High Frequencies
200 W Peak, 100 W RMS
Low Frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Cabinet
Cabinet Material
PP Composite
Hardware
1 x M10 top, 1 x M10 bottom
Handles
1 side, 1 top
Pole Mount / Cap
Yes
Colour
Black
Height
527mm / 20.75”
Width
303mm / 11.93”
Depth
303mm / 11.93”
Weight
11.8kg / 26.01 lbs
